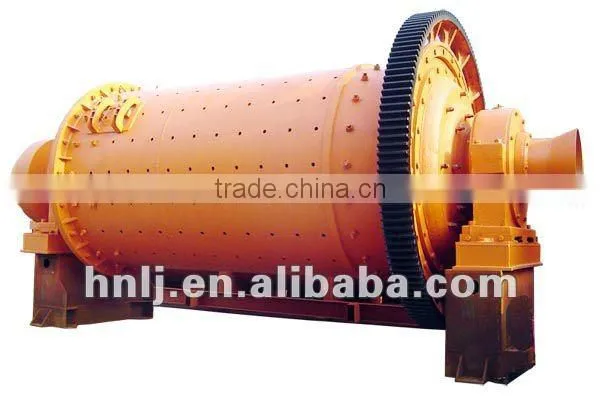

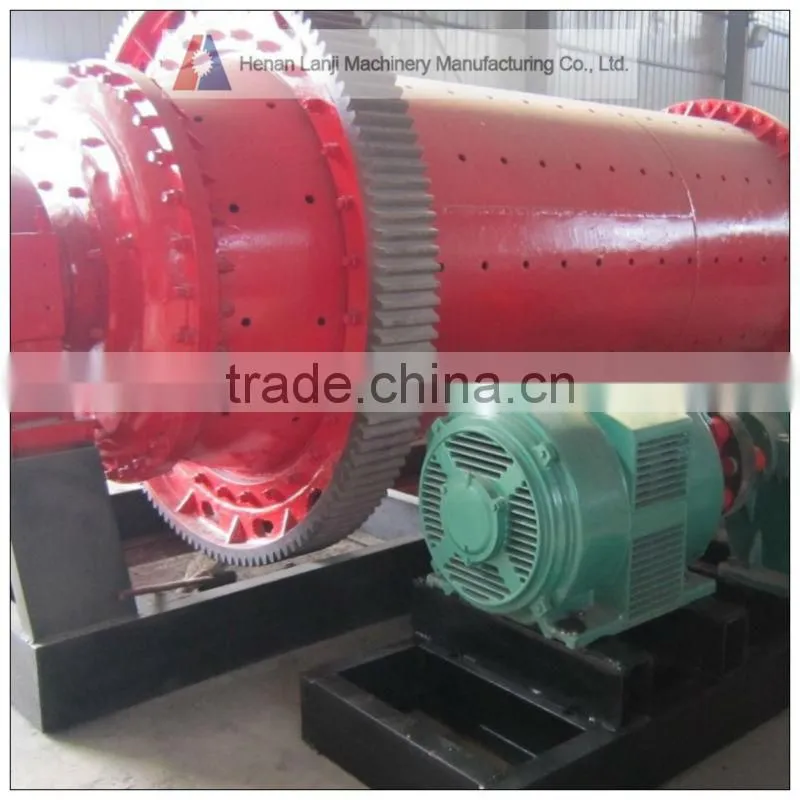

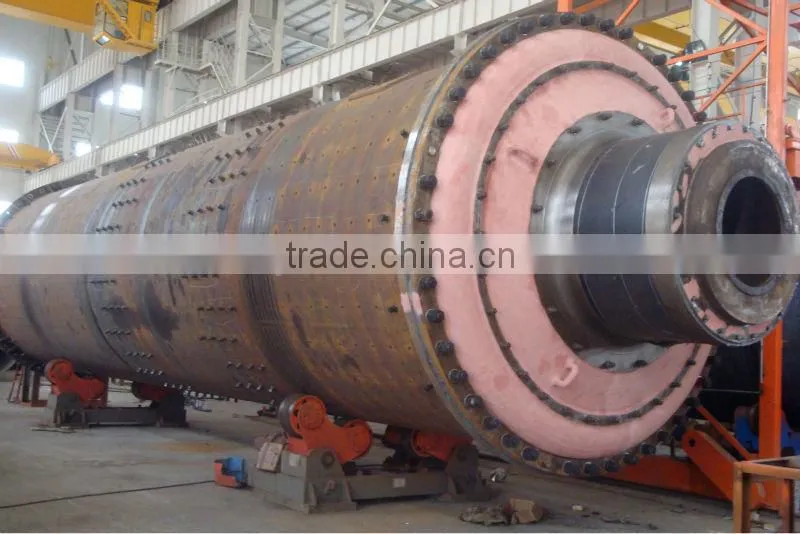

Good performance and competitive price ball mill for lime stone grinding

FOB Price

USD $5,000 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port QingDao tianjin.shanghai
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Type:	Other, Ball Mill, ball mill for lime stone grinding	Motor Type:	AC Motor
Power(W):	15-300 kw	Capacity(t/h):	0.65-2	Place of Origin:	Henan, China
Brand Name:	LanJi	Model Number:	900*1800	Dimension(LWH):	800030002400mm
Weight:	3-50 T	Certification:	ISO9001	Warranty:	1 Year
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Good performance and competitive price limestone milling machine-ball mill

1. Application:

Ball Mill is widely used in powder making production line in industries, like mining,building materials and chemistry industries. It is a key equipment to grind all kinds of ores and other materials, including cement, silicate, new-type building material, refractory material, fertilizer, ore dressing of ferrous metal and non-ferrous metal, glass ceramics, etc.

2. Types:

a. dry and wet types.

b. lattice and overflow types, or center-discharge and side-discharge types

c. Bearing MiII and Bushing MiII

d. edge and center types

Notes: other type of mill, like rod mill, ceramic ball mill is also supplied.

3. Working Principle:

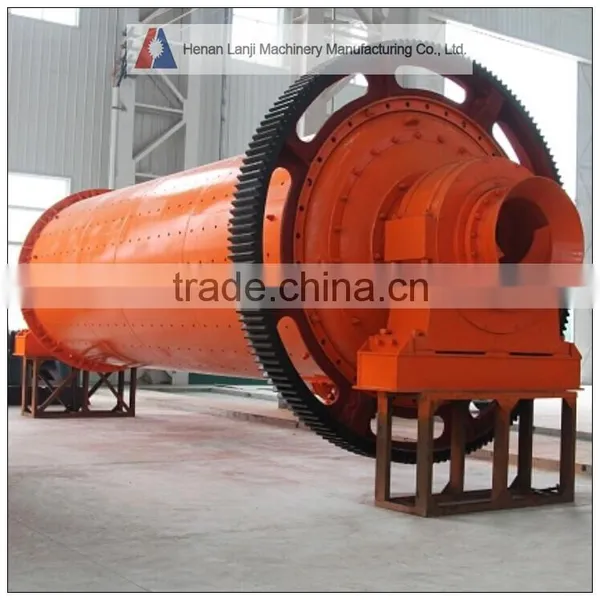

The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

Main Parameters

4.Technical Parameter:

Model	Drum rotary speed (r/min)	Feeding capacity (t)	feeding size (mm)	Discharging size (mm)	Output (t/h)	Power (kw)	Weight (t)
Φ900×2100	38	1.5	≤15	0.075-0.89	0.5-2	15	3.9
Φ900×3000	38	2.51	≤15	0.075-0.89	0.8-3.5	22	5.0
Φ1200×2800	32	4.0	≤20	0.074-0.4	1.0-5.0	30	9.5
Φ1200×3000	32	4.5	≤20	0.074-0.4	1.2-5.6	37	11.5
Φ1200×4500	30	5.5	≤20	0.074-0.4	1.5-6.0	55	13.6
Φ1500×4500	27	11	≤25	0.074-0.4	4-10	95	21
Φ1500×5700	27	12	≤25	0.074-0.4	4-13	110	23.5
Φ1830×3000	24	12	≤25	0.074-0.4	5-15	130	31
Φ1830×3600	24	13	≤25	0.074-0.4	5-16	130	32
Φ1830×4500	24	14	≤25	0.074-0.4	5-18	155	33.5
Φ1830×7000	24	21	≤25	0.074-0.4	6-20	210	36
Φ2100×3600	24	21	≤25	0.074-0.4	7-35	215	39.5
Φ2100×4500	24	26	≤25	0.074-0.4	8-42	245	43.5
Φ2200×3000	21	28	≤25	0.074-0.4	8-43	245	46
Φ2200×4800	21	35	≤25	0.074-0.4	9-45	285	48
Φ2400×3000	21	23	≤25	0.074-0.4	8-60	285	55
Φ2700×4500	21	48	≤25	0.074-0.4	12-83	475	79

Thanks so much for you taking time to browse our limestone milling machine-ball mill. Any further questions, please feel free to contact us and we are ready to so service for you!
