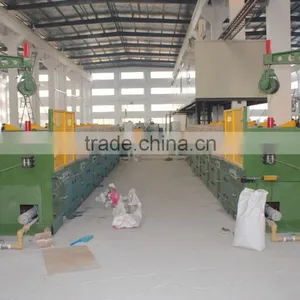

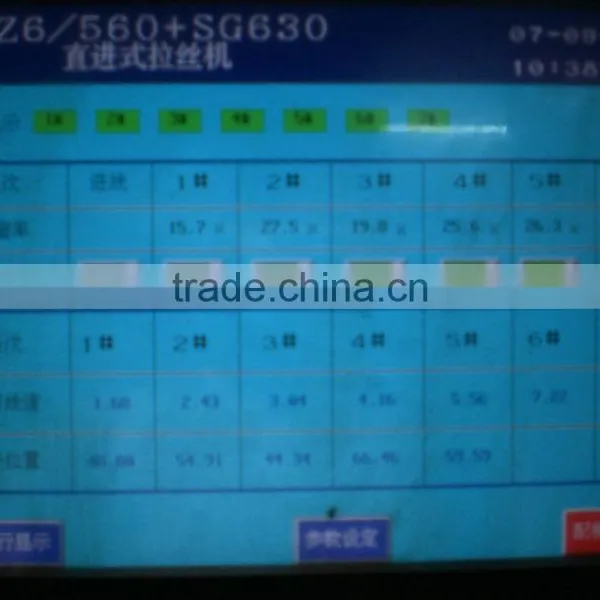

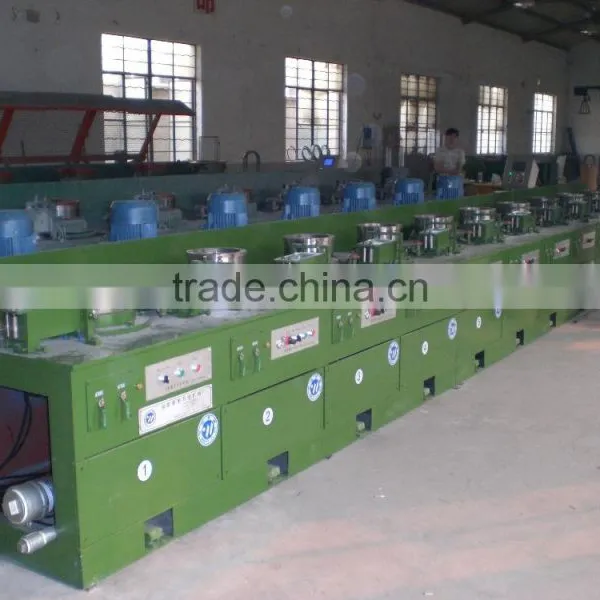

high quality wire drawing machine

Sr.

Name

Unit

Data

1

Drawing machine name

            LZ13/600

2

Drawing machine and pull mode

Straight line tuning type

3

Draft number

13

4

Coil diameter

mm

                Φ600

5

Speed adjustable mode

AC freq. Con. Speed Adjustable

6

Motor power

KW

8X37+5×30+1X22

7

Wire-in diameter

mm

Max               Φ7.0

8

End product diameter

mm

Min                Φ1.5

9

Average compression

%

≤21.1%

10

Design drawing speed

m/s

max16(light load high speed, heavy load low speed)

11

Control mode

Fully digital

12

Logical control

PLC

13

Wire-in strength

MPa

≤1250

14

Carbon content in material

high and low carbon steel wire

15

Drum cooling

Self contaminant release narrow seam type water cooling + outer ring type fan cooling.

16

Die box

Direct water cooling

17

Cooling water pressure

0.2~0.3Mpa

18

Pneumatic system

Air pressure≥0.5Mpa

19

Stop time

S

Normal stop≤50s,EMG stop≤5s

20

Pay-off mode

 Duck bill type pay-off machine

21

Take-in mode

I-type take-in coil

22

Total length of production line

M

About 30M

Model

No of drafts

Max.inlet wire(mm)

Min.outlet wire(mm)

Motor power

(KW)

Production speed(M/S)

LZ300

8-12

2.5

0.4

3-4.5

25

LZ350

8-12

3.5

0.6

5.5-11

25

LZ400

8-12

4.2

0.75

7.5-15

25

LZ450

8-12

4.5

0.96

15-22

218

LZ600

6-8

6.5

1.4

22-37

16
