Home > Products > Straight wire drawing machine > high speed PLC control Wire Drawing Machine
high speed PLC control Wire Drawing Machine
USD $20,000 - $60,000
/ Set
1 Set(Min.Order)
- 6 Set / Sets per Month
- shanghai or as ur need
- T/T
You May Like
Product Details
| Condition | New | CNC or Not | Normal | |
| Place of Origin | Jiangsu, China | Brand Name | wanyi | |
| Model Number | LZ9/400 | Voltage | 380v | |
| Power(W) | 100KW | Dimension(L*W*H) | 7500X1560X1560MM | |
| Weight | 8000KG | Certification | CE SGS | |
| Warranty | one year freely | After-sales Service Provided | Overseas service center available |
Product Description

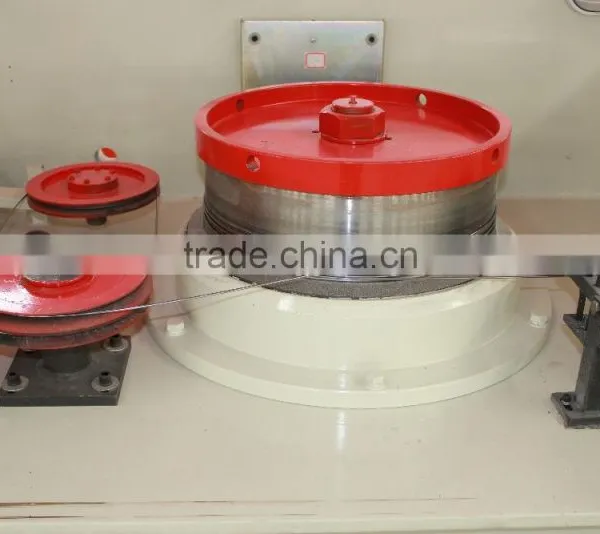

straight wire drawing machine
Main Technical Parameters
Specifications | No.of drafts | Max.inlet wire(mm) | duction(mm) | Motor power(kw) | Production speed(m/s) |
300 | 8~12 | 2.5 | 0.4 | 3~4.5 | 25 |
350 | 8~12 | 3.5 | 0.6 | 5.5~11 | 25 |
400 | 8~12 | 4.2 | 0.75 | 7.5~15 | 25 |
450 | 8~12 | 4.5 | 0.96 | 15~22 | 18 |
600 | 6~10 | 6.5 | 1.4 | 22~37 | 16 |
