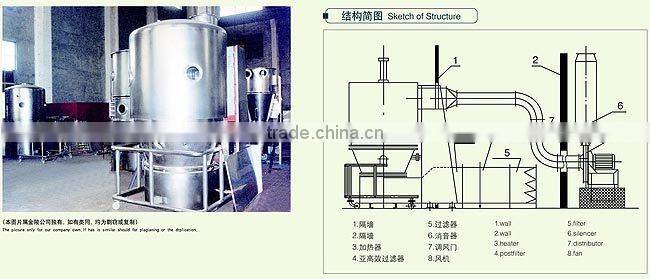

GFG High Efficiency Drier

Specifications

1.GFG High Efficiency fluid bed Drier
2.No dead concer
3.Simple in nvenient in cleaning
4.negeative operation

Applications

    Medicine, food, feed, chemical industry and so on, suit for drying the powder which has good fluidity.



Principle

    When air is purified and heated, it is introduced from the bottom of exhaust fan and passes through screen plate of raw material. In working chamber, the state of fluidization is formed through stirring and negative pressure. The moisture is evaporated and removed rapidly and raw material is dried quickly.



Features

    The structure of fluid bed is of round so as to avoid dead corner.

    Inside the hopper there is a stir in order to avoid agglomeration of raw material and forming canal of flow. (Small machine does not support stirrer)

     The granule is discharged through the method of turning over. In this way, it is very convenient and quickly. Discharging system can be designed by requirement.

    GFG High Efficiency fluid bed Drier is operated at the conditions of negative pressure and seal. The air is filtered. Therefore it is simple in operation and convenient in cleaning. It is ideal equipment that is in conformity with the requirement of GMP.

    The drying speed is fast and temperature is uniform. In general the drying time is 20-30 minutes.



item			type
raw material(kg)			60	100	120	150	200	300	500
fan	air volume(m3/h)		2361	3488	4000	4900	6000	7800	10800
	air pressure(mmH2O)		594	533	533	679	787	950	950
	power(kw)		7.5	11	15	18.5	22	30	45
stirring power(kw)			0.55	0.55	0.55	0.55	0.55	0.75	0.75
stirring speed(r/min)			11
consume of steam(kg/h)			140	170	170	240	280	360	450
time of operation(min)			15-30by mains of different raw material
height of main machine		round(mm)	2700	2900	2900	2900	3100	3600	3850
