Chinese Mini Gold Suction Dredge For Sale

Specifications

Chinese Mini Gold Suction Dredge For Sale
1.ISO 9001
2.Long service life
3.Easily movable portable
4.low cost

1. Gold Suction Dredge  Introduction:

1)Mini gold dredger with a gold chute for high recovery rate, powered by a famous engine with pump, float is made up of high strength and light weight plastic.

2)There are advantages that small in size, easy to transportation , it is widely used for working of gold mining in mini river channel.

3)Gold suction dredge come in a wide variety of designe and size of intake.The size from a small backpack size intake from 3 inch to 5 inch.

2.Feature of Gold Suction Dredge :

1)Completely assembled and fully tested before delivery

2) It can be easily transproted and is lightweight and quick to asseble.

3)Standard design, allowing early delivery and low price

4) Powered by a varety of engines,pump offering a choice of power to fit individual needs.

3.Specifications of Gold Suction Dredge :

Model	QFT3-2	QFT4-3	QFT5-3
Machine size	2300*1500*1000mm	2500*1500*1000mm	2500*1500*1000mm
Diesel engine
Engine	Single cylinder air cooled diesel engine	Single cylinder air cooled diesel engine	Single cylinder air cooled diesel engine
Power(hp)	5	7	12
Rotate Speed	3600rpm	3600rpm	3600rpm
Fuel consumption	≤284g/Kw·h	≤283g/Kw·h	≤280g/Kw·h
Fuel tank capacity	2.65L	3.3L	5.5L
Pump
Size(L*W*H)	550*450*450mm	550*470*450mm	550*500*480mm
Inlet/Outlet diameter	50mm(2inch)	80mm(3inch)	100mm(4inch)
Lift	30m	30m	25m
Max dredging depth	8m	8m	8m
Working capacity	6m³/h	10m³/h	15m³/h
Gold Chute
Size(L*W*H)	400*1500mm	500*1700mm	500*1700mm
Remark	With carpet	With carpet	With carpet
Floating
Size(L*W*H)mm	1600*395*370	1600*395*370	1600*395*370
Handheld sucker	3inch	4inch	5inch

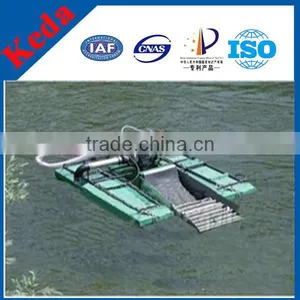

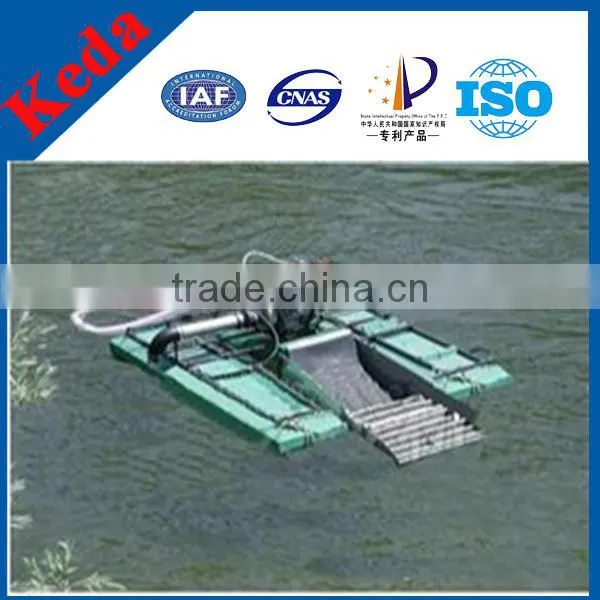

4. Gold Suction Dredge  Show:

Floating



5.Our company-- Professional Gold Suction Dredge  Manufacturer:

1)Our products can design as customers' requirement and geographical condition.The products are of a great variety including 800-1500m3/h.

2)We are  a modern large-scale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service with the good CAD Aided Design R & D center and physical mineral processing laboratory.

3)We attach the development of scientific research, and form strategic partnership with the major research institutions. And we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting.

1.Dredgers

Cutter Suction Dredgers    Bucket Chain Dredgers

Auto Pump Dredgers        Jet Suction Dredgers

Gold dredgers

2. Mineral Processing Machinery

Gold Dredging & Mining Machinery

Iron Mining Dredging & Mining Machinery

3. Sand Processing Machinery

Sand Sieving Machinery

Sand Washing Machinery

6.Best Service

1)24 Hours telephone and email support

2)Import parts 1 year warranty

3)Professional technology support,No matter in installation,after sale service



7.In order to provide best proposal for you,could you tell us the details as below:

1)Working capacity(m3/h)of the dredger

2)Depth of the water (m)? What is the digging depth (below the water)?

3)Gold extraction type: use gold carpet, shaking chute, or centrifugal concentrator ?

8.Contact Person:

Pleae feel free to call for information to answer all your questions.
