Home > Products > Dredger Accessories > Cutter Suction Dredge Head for CSD
Cutter Suction Dredge Head for CSD
- 100 Set / Sets per Month
- Qingdao Port
- T/T Credit Card PayPal
Product Details
| Place of Origin: | Shandong, China | Brand Name: | KD | Model Number: | KD-CH |
| Condition: | New | After-sales Service Provided: | No overseas service provided |
Product Description
Cutter Suction Dredge Head for CSD

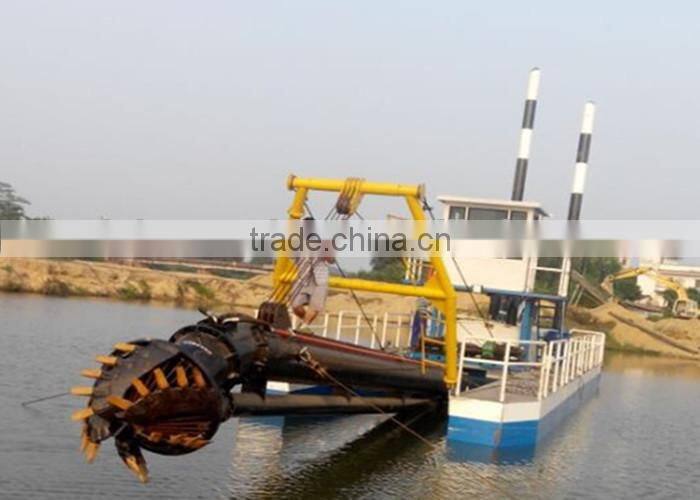

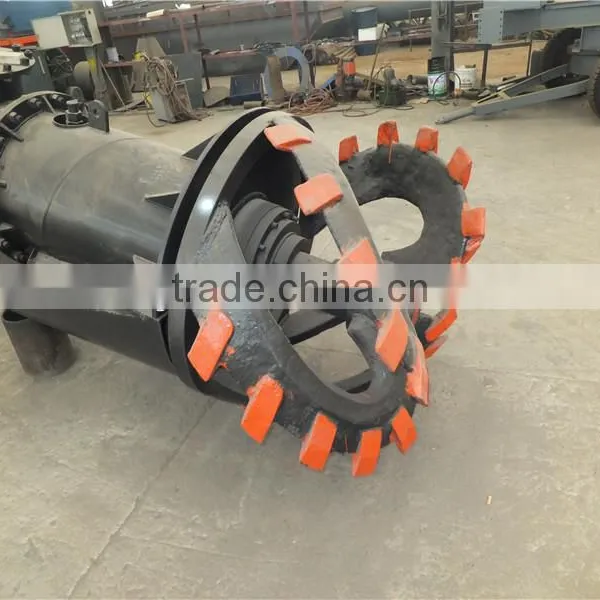

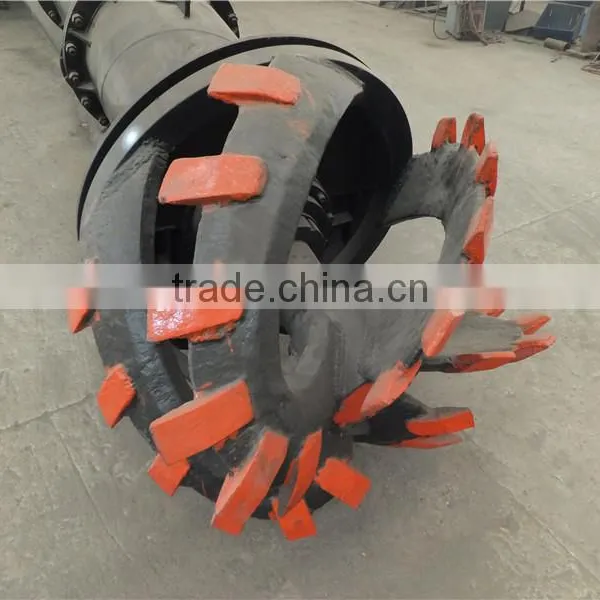

Pictures of Cutter Head for Cutter Suction Dredger
Features of Cutter Head for Cutter Suction Dredger
1. Made of cast steel, durable, certified by ISO9001:2008;
2. High processing capacity, high cost performance;
3. Good after sales service, support for maintenance and technology;
4. The cutter is directly driven by one low speed hydraulic motor.
Parameter of Cutter Head for Cutter Suction Dredger
KDJD-96 Cutter Head | |
Blade material | Cast steel 35 |
Inner diameter | 955mm |
Blades | 5pieces |
Suction pipe diameter | 400mm (1set) |
Motor model | XHS4C4-1300D47 |
Displacement | 8444ml/r |
Max. torque | 14000N.M |
Max.shaft power | 62kw |
Speed | 0-35r/min |
Flange diameter | 710mm |
Weight | About 2tons |
Model | Inner dia. (mm) | Blade | Speed (r/min) | Max. shaft power (KW) | Suction pipe dia. (mm) | Working capacity (m3/h) | Matched pump water flow (m3/h) |
KDJD-65 | 650 | 5 | 0-34 | 15 | 150 | 80 | 360-450 |
KDJD-83 | 830 | 5 | 0-34 | 35 | 250-300 | 150 | 750-800 |
KDJD-96 | 955 | 5 | 0-35 | 62 | 350-400 | 350 | 1200-1400 |
KDJD-110 | 1100 | 5 | 0-30 | 80 | 400 | 400 | 1500-2000 |
KDJD-133 | 1330 | 5 | 0-30 | 101 | 400-450 | 650 | 2000-2500 |
KDJD-155 | 1550 | 5 | 0-30 | 130 | 500-550 | 900 | 3000-3500 |
KDJD-175A | 1750 | 5 | 0-32 | 251 | 600-650 | 1200 | 4000-4500 |
KDJD-183 | 1830 | 5 | 0-30 | 375 | 600-650 | 1600 | 5000-6000 |
1.We are a modern large-scale machinery manufacturer devoting ourselves to the fields of desilting, sand pumping and gold mining with engineering design, producing, installation, commissioning and high quality after sales service.
2.All our products have been certified by ISO9001 and many of them have been exported to more than fifteen countries, such as Cote d'Ivoire, Colombia, Fiji, Ghana, Bangladesh, Sultan, Korea, USA, Russia, India, Papua New Guinea, Chile, Brazil, Mali, Nigeria and so on.
Certification
Recent Win-win Cases
You are invited to create a bright future with us. Please contact!
Contact: Chance Ji
Mobile: +86 13780897802 (Viber/WhatsApp)
Tel/Fax: 0086-0536-3811221
Skype: kedamachinery07
E-mail: sales07 @miningmachine.net
Qingzhou Keda Mining Machine Co., Ltd.
Or send your inquiry details in the below,Click "Send" Now.
