Rice Mill in China/complete Rice Milling Plant

Rice mill in China/complete rice milling plant

complete rice milling plant Application:

complete rice milling plant is the process that helps in removal of hulls and bran`s from paddy grain to produce polished rice.

It is the most ideal paddy-processing machine for grain distribution station,

and farm as well as self-employees.

complete rice milling plant Structure:

This kind of machine was one COMBINED TYPE.

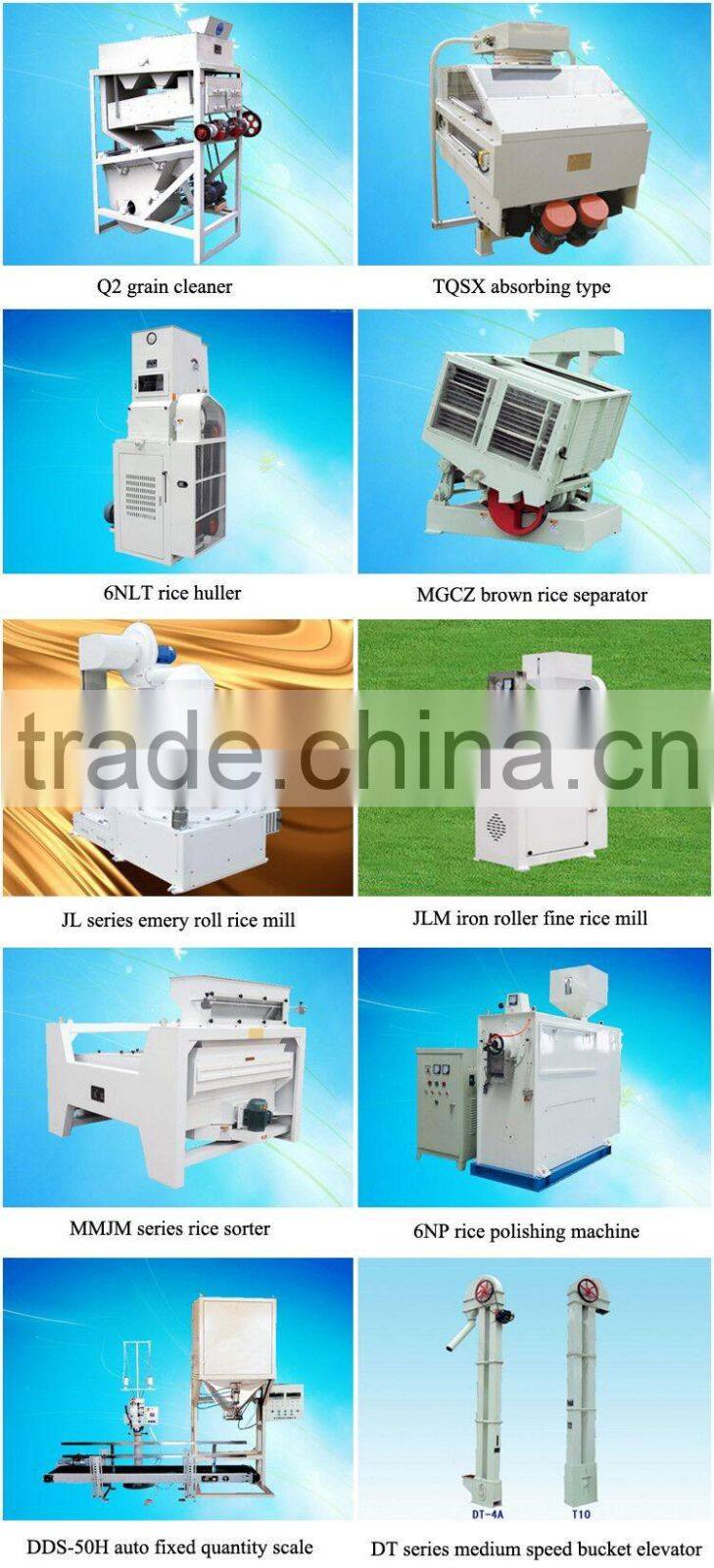

One set complete rice milling plant include:2 sets Elevators,1 set De-stoner machine with Blower,1 set Paddy hulling machine,1 set Paddy Seperator and 1 set Rice Polishing machine.

Also have pipe and Cyclone for the Rice Husk and Rice Bran.

Also have Distribution Box to control these parts.

complete rice milling plant Advantage:

1. Our machine Wide application: ideal machine for pressing various rice, such as long-shaped rice, polished round-grained rice, sticky rice, thaliland jasmine rice, basmati rice, etc; also can pressing millet
2. High rice yield: the rice output is 85% - 91% higher than common rice mill
3. Low residual: the broken rice only about 5%
4. Little land occupancy: only 6-8m2 is enough

The complete rice milling plant unit is a kind of comprehensive equipment for rice processing. Rice goes into machine through vibrating screen and magnet unit, and then forward under rubber-roller for hulling. Winnowing and air blowing to husk. The machine may complete all the processing works from cleaning grain, rice husking in hulling to rice husking in succession. As to husk, chaff, blighted grain as well ad polished rice, they are all pushed out of machine separately. This machine is comprehensive expression for all the good qualities of varied kinds of rice-processing machines. For instance, it is arranged with a comprehensive view of situation and is designed rationally.

It`s structure is compact and well organized. It has less noise and can be easily operated and reliably regulated. Rice after processed consists of less chaff and few of them are damaged (broken). The neatness of such rice may be up to above standard 1. It consumes less power and it has high efficiency in work. It is indeed a combined rice milling unit of a new generation.

This complete rice milling plant is our latest production for milling equipment. It has virtues as follows: high efficiency, low energy consumption, advanced structure, beautiful outlook, easy to operate and maintain. At the same time it has the advantage of low noise, high capacity, high rate of gaining rice, low temperature and high quality etc.

This model is special-scale equipment for paddy-processing. It is composed of feeding hopper paddy husking unit, separating unit for brown rice and chaff, milling unit and air jet blower, etc. The paddy can finish the process of cleaning, husking, air-blowing selecting, and milling in succession. Then husk, chaff, runtish paddy, and white rice are pushed out of machine respectively. This machine has a rational layout, compact structure and little noise in operation. It is light and easy to operate with less power consumption and high productivity. The model can produce white rice with high purity above national standard 1, and with less chaff containing and less broken rice. so it is a new type paddy-processing machine for the countryside.

complete rice milling plant Main Technical specifications:

Rice huller

1. Rubber roller Φ254×254(mm)(diameter*length)
2. R.P.M of fast roller: 1200 r/min
3. R.P.M of slow roller: 890 r/min
4. R.P.M of husk blower: 1680 r/min

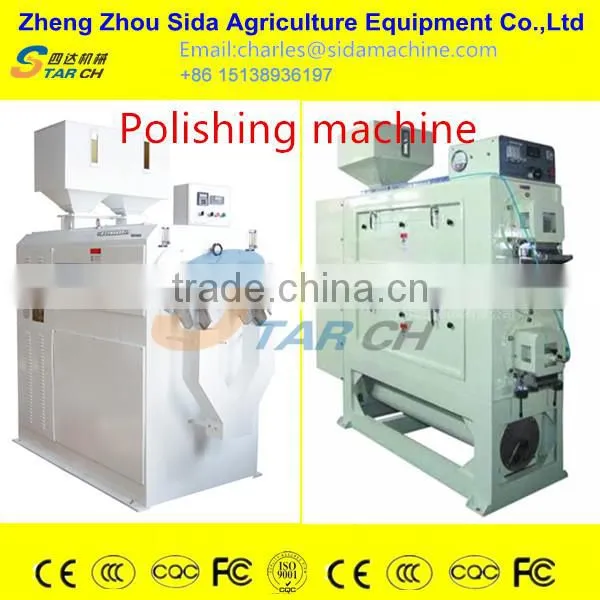

Rice polisher:

1. Iron cylinder: Φ138×340mm(outer diameter of protrudes*length)
2. Screw conveyor: Φ138*150mm(outer diameter*length)
3. Hexagonal screen: Φ148*335mm(diameter of inscribed circle*length)
4. Mesh of hexagonal screen: 0.95*15mm(width*length)
5. R.P.M of main shaft of rice polisher1000 r/min
6. R.P.M of high pressure blower: 3400 r/min
