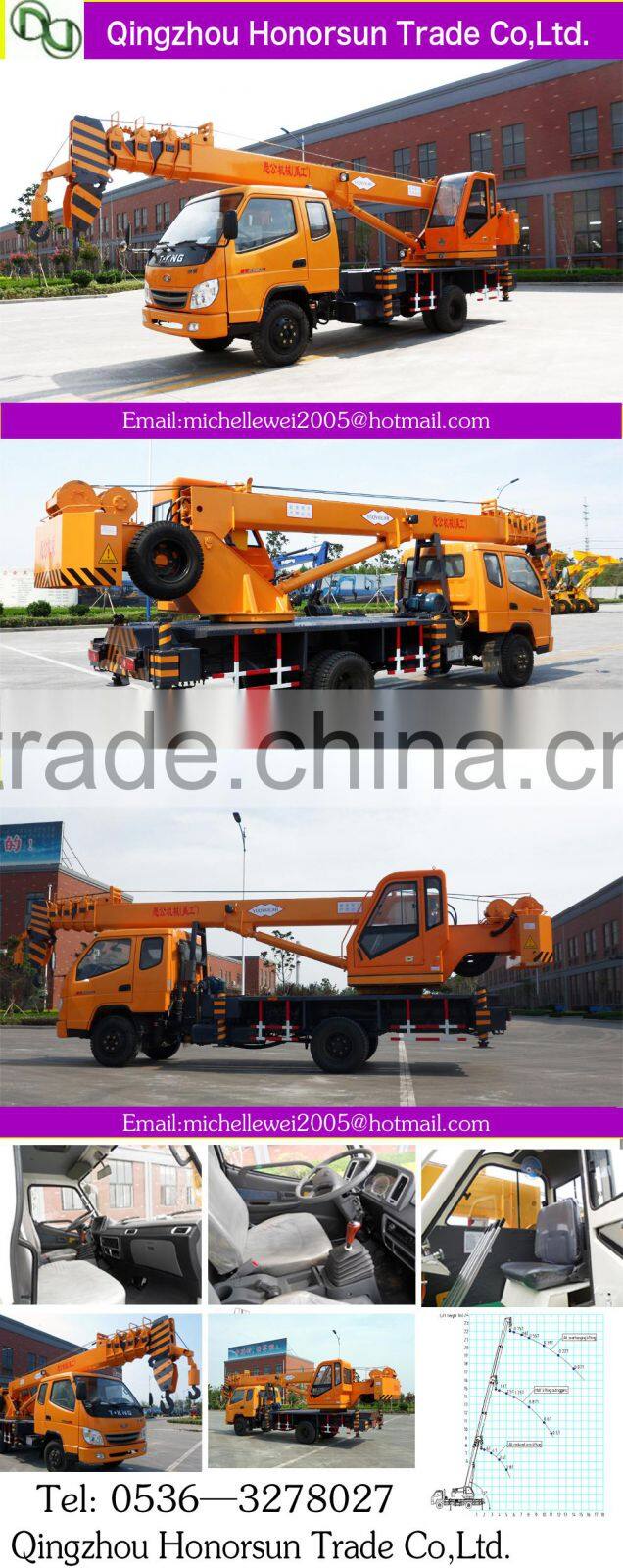

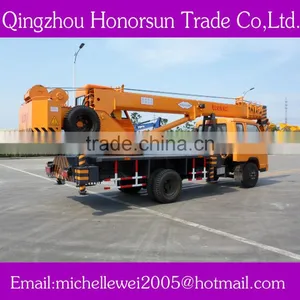

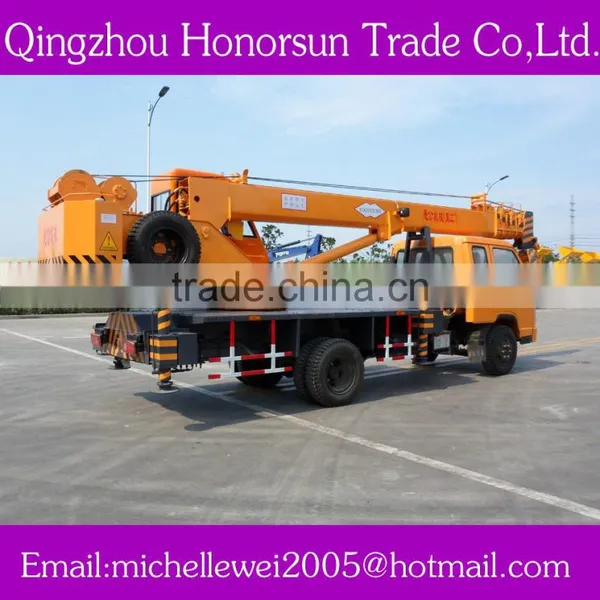

China Construction Machinery HONORSUN 8 Ton Truck Crane

Product model

HSQY8H

Total mass                    kg

8915

Overall dimension              mm

8510*2190*3100

Rated elevating capacity         kg

8000

Max. Lifting Height             m

26

Main hook single load            kg

1350

Main hook single elevating speed   m/min

50

Auxiliary hook single load         kg

500

Auxiliary hook single elevating speed  m/min

100

Engine model

SD4100

Derailleur model

MW525  With high and low speed auxiliary box

Tires

8.25-16 with spare tires

Braking form

Pneumatic brake

Steering form

The steering wheel circulation ball type

Crane jib structure

Category five hexagon box-type, hydrocylinder telescopic boom

Main Lifting Mechanism

Category one planet wheel with a brake inside

Auxiliary Lifting Mechanism

Category one gear brake motor

Swing Bearing

GB Φ1000 Tooth, material 50Mn intermediate frequency

Vertical hydraulicleg

Double-acting engineering oil cylinder

Horizontal hydraulicleg

Double-acting engineering oil cylinder

Platform

Anti-skidding and big

Protective Screening

Two-way

Night light

3 lamps control

Dynamic Motor

GB 11KW-6 pole

Crane Cab

Tailor-made

The central axially symmetrical

Four oil ways

Crane Start

Tailor-made

Throttle

Hydraulic

Warning Horn

Mono snail

Pressure gage and switch

Shockproof component

Power Takeoff

Driving indoor operation zip type

Hydraulic Oil Tank

Turntable rearmounted, counter weight combined type, special four-layer filters
