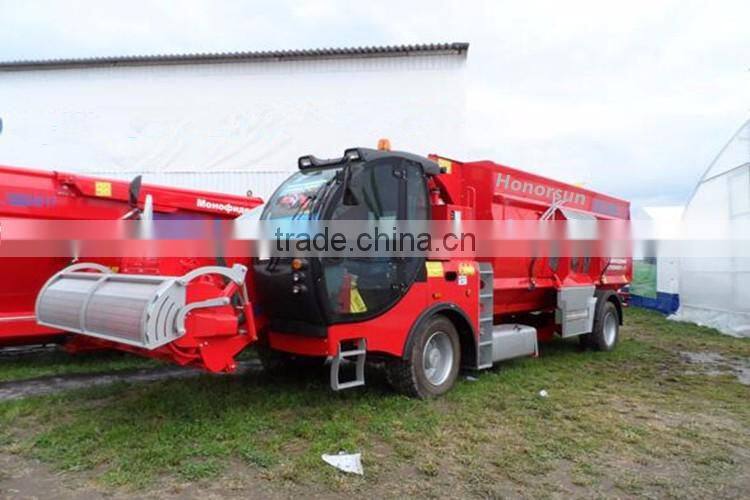

SELF-PROPELLED TMR FEED MIXER/ TMR Feeder Mixer/pig feed mixer

 1. The “HONORSUN” SELF-PROPELLED TMR FEED MIXER/ TMR Feeder Mixer/pig feed mixer with a blade auger is equipped with a unique loading system

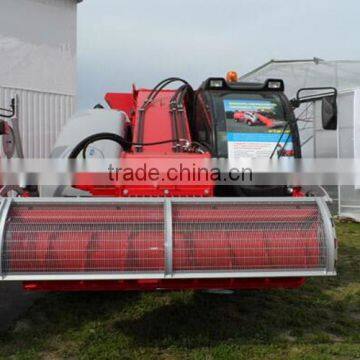

Loading drum

The operator can easily choose the chopping length for each feed type. Feed with long fibers is chopped during the loading phase, while delicate materials such as maize silage or meal, are supplied into the tank for direct mixing, in order to retain the structure.

With a partition

If you need to chop a limited amount of material, the “HONORSUN” can be equipped with a loading drum without a chopper and with a very high loading speed.

The internal partition, which can be opened, allows to achieve the necessary chopping rate. The partition can be closed during loading of long-fiber materials in order to slow down the flow and chop them. When the partition is open, the short-fiber material or meal is delivered directly into the mixing tank.

With a chopper

The chopper, located inside the conveyor, can be connected and disconnected in accordance with the type of material loaded.

The units’ operation allows to achieve maximum chopping efficiency, also thanks to two speeds and two directions of rotation, which can be selected. Therefore, the loading drum function is optimized and fulfilled, and the different materials are treated properly before getting into the mixing tank.

The patented loading control system

The smart electronic device controls the material flow coming from the elevator, which ensures a balanced filling of the tank. Thanks to this smart decision, mixing time is cut by half.

2. The “HONORSUN” self-propelled mixer-feeder with a  horizontal auger and chopping knives

 Peerless mixture quality

The machine’s simple design allows to achieve unrivalled feed palatability and digestibility.

The mixer’s construction allows you to achieve a soft uniform mixture, fresh and chopped to the necessary size, which allows to preserve the nutritional values of each component and increase feed quality.

Exceptional homogeneity of the mixture, proven by official trials, ensures distribution of the same ration along the entire feed fence.

Careful treatment of the feed material ensures high nutritional value of haylage and silage and prevents heating of the final mixture.

Standard equipment

Axle differential blocking for 5960;

Lights for public roads;

Front and rear brakes;

Rear suspension;

Loading arm support;

Chain elevator for left-sided discharge;

Improved transmission of loading drum;

Loading arm with stainless steel bottom and side plates;

Reversible engine cooling fan;

Electrical equipment with working, parking and front lights;

Ventilation and heating system;

Weighing system.
