Product Details

Condition	New	Type	Coating Production Line
Substrate	Other, tobacco package paper, hologram, hot stamping materials, high grade pr	Coating	Vacuum Coating
Place of Origin	Shandong, China	Brand Name	honorsun
Model Number	SBDF2000	Certification	CE.ISO

Product Description

Specifications

Coating equipment
Technology reliable aluminized film equipment
Aluminum plating machine

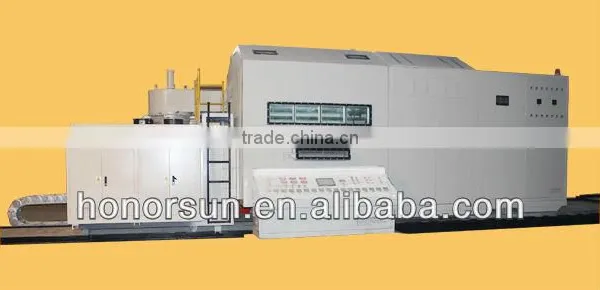

SBDF2000 Model suspending high vacuum rolling filming machine is designed for filming the Aluminum on the surface of the rolled plastic materials. This machine could metalize the medium on single side, used for the high-level package materials, decoration films and other application. SBDF2000G Model could choose the high frequency induction evaporation mode, the metalized materials like: Al, Ag, Cu, Silica (SiO2), and zinc sulfide.The features of this model: good quality, no sputtering point, the film is uniformity, high production, and the speed will be twice than the thermal evaporation. This machine is mainly used in the metallic yarn , high level packaging film, Laser anti-counterfeiting, Bronzing transfer and other specific metalized film, which could satisfy the requirement of the metalizing industry films.
This equipment adopts the four motors constant tension control and automatic winding and rewinding system.
This model with high speed and stable tension is one of the largest filming width models in China.

SBDF2000 Model
Max.Rolling Dia. (mm)	900mm
Effective film width( mm)	1000mm—2200mm
Evaporation Transformer( set)	11—23(set)
Eavaporation Boats (piece)	11—23(piece)
Wire Feeding Speed (m/min)	0—4
Pumping Time (pa/min)	≤15min
Ultimate vacuum degree( pa)	8X 10^-3pa
Working vacuum degree (pa)	10^-1—10^-2pa
Working Speed (m/min)	84—840m/min
Rolling Tension (nm)	0—350
Design Power(kw)	500
Working Power(kw)	395
Filming Material	PET,,OPP,CPP,PVC, paper, counterfeiting,laser, dielectric film
Vapor Material	Al, Ag , Sn,, Medium (Purity≥99.8‰)
Machine weight (t)	About 47
