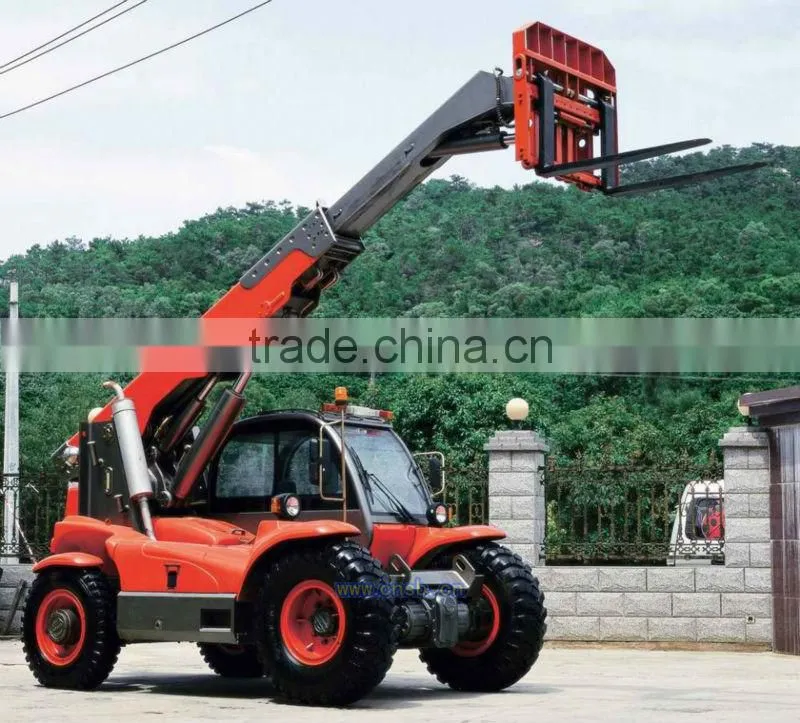

Telescopic Handler

Name: Telescopic Handler
Brand: CANMAX
Availability: InStock

FOB Price

USD $30,000 - $40,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

As a specialist in this area, we can offer you the very best telescopic handlers at competitive prices.

Model	SZF25-4-L
Lifting capacity (max)	2500kg
Lift capacity at maximum reach	1000kg
Lifting height (max)	6000mm
Forward reach (max)	3260mm
Overall weight	7100kg
Transmission	Hydro-mechanical transmission
Drive type	Four wheel drive
Boom segments	2 segments
Size
Overall length	5560mm
Overall width	2300mm
Overall height	2565mm
Wheelbase	2200mm
Tread	1900mm
Ground clearance (min)	310mm
Performance
Steering modes	Rear wheel steering
Travel speed (max)	30km/h
Range of lateral displacement devices	left 100mm , right 100mm
Power
Engine	Cummins Turbo diesel 4BT3.9-C80
Rated power	80/60KW
Ful tank capacity	115(L)
Hydraulic tank capacity	102(L)
