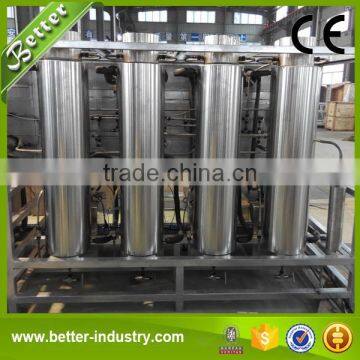

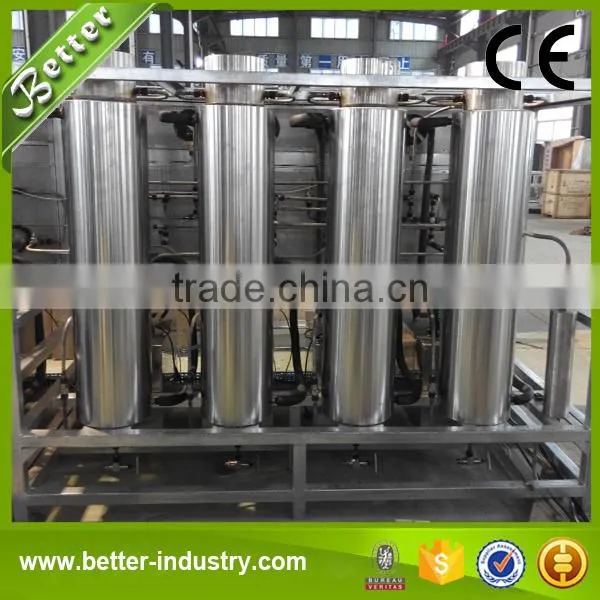

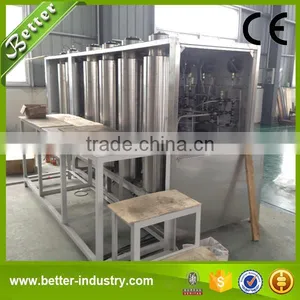

Cheap and better Agalwood Sepercritical co2 oil extraction

Brief introduction of   Agalwood Co2 extraction machine

This    Agalwood Co2 extraction machine extraction and separation of pressure and temperature are using the computer automatic control,computer remote monitoring of the various parameters.This device clamp was adopted as extraction boo boo cover hydraulic quick-opening structure.This device extraction kettle with safety valve,pressure transmitter control lock,electric contact pressure gauge triple security protection,safe and reliable work.

A. The main technical parameters of  Agalwood Co2 extraction machine
1.The voltage: 240V,60HZ
2.The maximum power: about 16KW
3.The maximum extraction pressure: 40MPa
4.The extraction temperature: room temperature~ 80 ℃
5.The extraction kettle volume:single reactor volume:5L

B. The main configuration device of   Agalwood Co2 extraction machine

1.The air source part

CO2 gas cylinders (provided by customer), the cylinder pressure generally remain at more than 5 mpa, CO2 purity of 99.99% or higher

2.Power supply part

CO2 high-pressure plunger pump:one set

power 2.2 kw, maximum flow is 50L/h, maximum working pressure of 40 mpa.

Carrying agent pump: the maximum flow 10L/h, maximum working pressure of 40 mpa.

3.Purifying filtration system

16 mpa design pressure, volume 1L, the quantity is 1 only, built-in silica gel or other used to filter material, have the effect of filtering, can be put into use in parallel.

4.Separate kettle

Two sets of separate kettle to 2 liters, the highest working pressure are 20 mpa, entrance to be close to the bottom, intubation set heating jacket and insulation kettle in vitro, maximum separation temperature up to 80 ℃.

5.Preheater: the highest working pressure of 40 mpa, the maximum operating temperature 80 ℃, preheater under constant temperature water bath, the water tank with insulation layer, and is equipped with stainless steel decorative layer. Preheater with constant temperature water bath as a whole, reduce the water hot water transmission, and make corresponding preheater with every body temperature more step convergence, more compact structure.

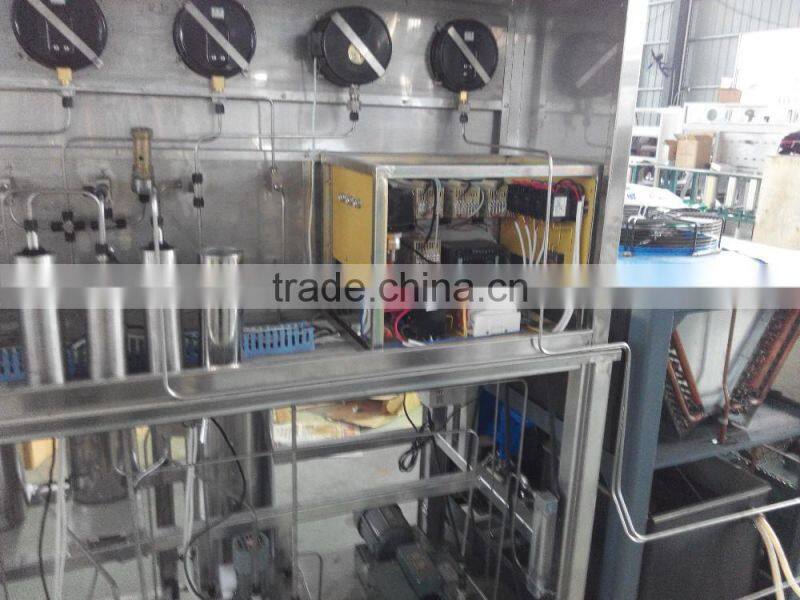

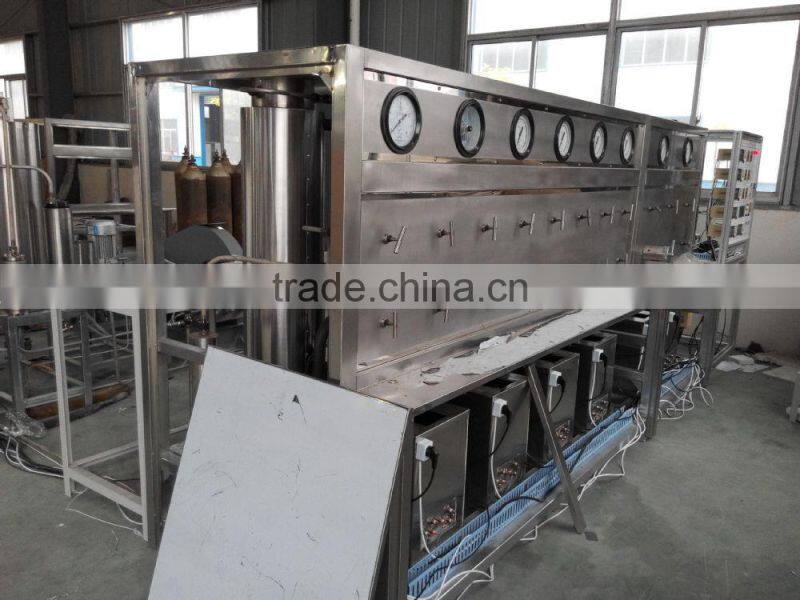

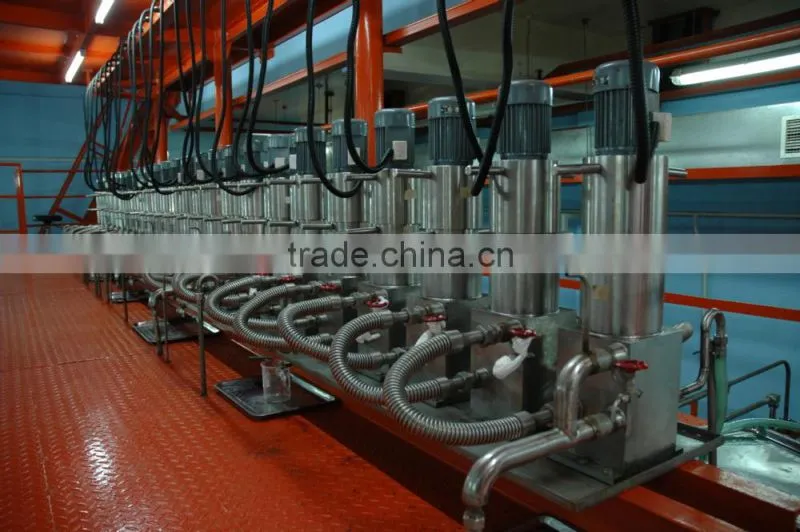

More pictures of   Agalwood Co2 extraction machine for reference

 Final products and equipment of Agalwood Co2 extraction machine

Raw material of   Agalwood Co2 extraction machine

More details of   Agalwood Co2 extraction machine :

 Payment Term:

If the total amount below $5000, it should be 100% prepayment.

If the total amount above $5000, it should be 50% prepayment; the balance paid before loading.

Delivery Time:

50 working days after prepayment received

Quality guarantee:

One year after shipment excluding the wearing and tearing parts.

If you are interested in our product of  Agalwood Co2 extraction machine ,please contact us and we are pleased to serve you well.
