Home > Products > Gold and Diamond Washing Plant > 2017 Small Mobile Dry Land Gold Panning/Fossick Plant
2017 Small Mobile Dry Land Gold Panning/Fossick Plant
- 500 Set / Sets per Month
- Qingdao port
- T/T Credit Card PayPal
Product Details
| Condition: | New | Type: | Other, Gravity Separator, gold panning plant | Production Capacity: | 2-4 tons per hour |
| Place of Origin: | Shandong, China | Brand Name: | YONGDELI | Model Number: | YLWX-2 |
| Voltage: | 220V | Power(W): | 1.1kw | Dimension(L*W*H): | 2.5m*1.2m*1.3m |
| Weight: | 0.2 tons | Certification: | ISO9001:2008 | Warranty: | 12 months |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

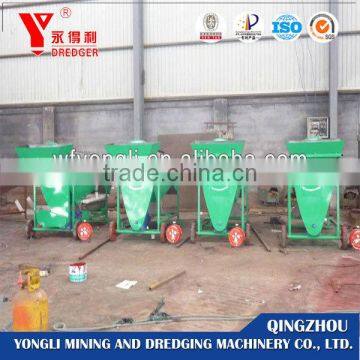

Small Dry Land Gold Trommel Washing Plant
1.Brief Introduction
Dry land gold trommel washing plant has simple structure but easy to operate. It could be fed by manpower or small excavator. The small screen which is driven by electric motor could separate the stones,gravels and other unwanted materials. The sand will go to the sluice chute(with gold carpet) for gold separation.
2.Features
1. Small size, small weight, easy to move or transport.
2. Could be loaded manually or by small wheel loader.
3.High efficient especially for fine gold dust,high recovery.
3.Techinical Parameter
Model | Capacity (t/h) | Water consumption (m³/h) | Power (kw) | Recovery |
YLWX-2 | 2 | 4 | 1.1 | 60-70% |
YLWX-4 | 4 | 8 | 1.5 | 60-70% |
YLWXH-4 | 4 | 8 | 2.2 | 70-80% |

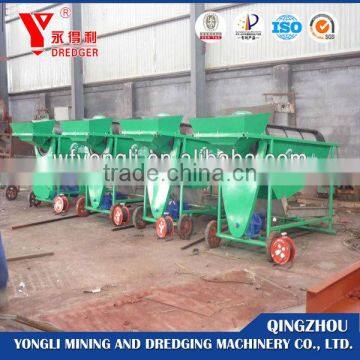

Four wheels makes it easy to move freely.

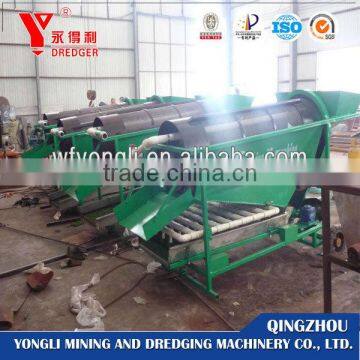

Water injection pipe in the middle of the round screen. The water could prevent the screen hole to be stuck by the sand or stones.
Our main gold separating machine : varational trommel screen, centrifuge,jigger, agitating chute and so on.
