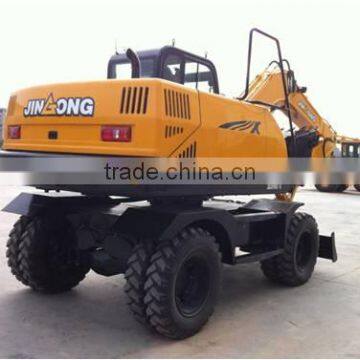

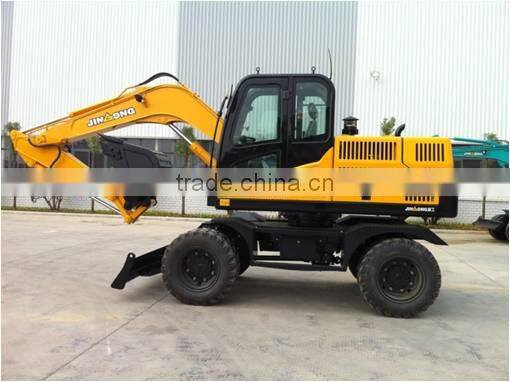

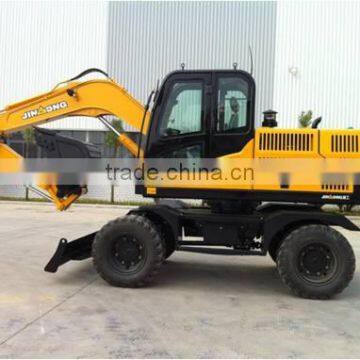

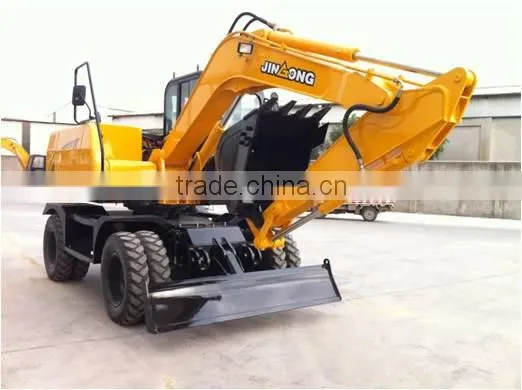

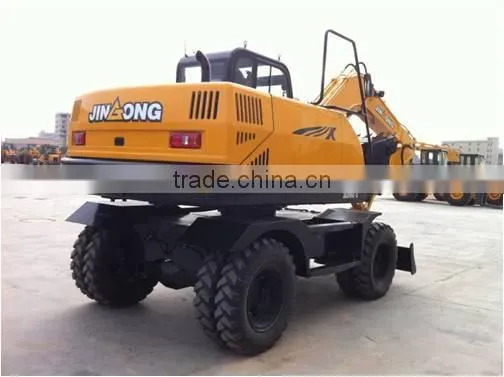

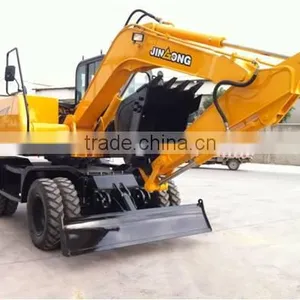

Chinese construction machine JGM909 wheeled excavator

FOB Price

USD $30,000 - $40,000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Xiamen
Payment Terms:T/T L/C D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Fujian, China	Brand Name:	jingong	Model Number:	JGM909
Condition:	New	Moving Type:	Wheel Excavator	Operating Weight:	9000kg
Bucket capacity:	0.4m3	Maximum Digging Height:	7234mm	Maximum Digging Depth:	3944 mm
Machine Weight:	9000kg	Max Digging Radius:	6933 mm	Rated Speed:	5.5km/h
Certification:	CE ISO	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Chinese construction machine JGM909 wheeled excavator

Product Description

•JGM909L-8 is our company independent research and development of a new generation of 9 ton wheel hydraulic excavator. It adopted the hydraulic system of load sensitive and full hydraulic axles drive, has many advantages such as constant power variable , energy conservation and efficient, driving fast, stronger through and climbing ability, the braking performance is good, work smoothly, the forerunner to manipulate, convenient and comfortable and so on. Super element configuration and structure to ensure that meet the requirement of the various working conditions. Comprehensive performance is the domestic first-class , its quality is worth its price.

•Equipped with bucket capacity of 0.4 m^3 and the broken drill rod diameter 80 ~ 90 mm .

•Engine

•Model : Guangxi YuChaiYC4D85Z-T20

• Type : 4- cylinder4-stroke , turbocharged engine( According with the Ⅱ stage of GB20891-2007)

•Number of cylinders : 4

• Cylinder diameter × trip 108mm×115mm

•Displacement 4.214L

•Rated power 60KW at 2200rpm

•Maximum torque 340Nm at 1300~1600rpm

•4- cylinder4-stroke and turbocharged engine have many advantages such as high power , higher reliability and economical efficiency , low emission,low fuel consumption and so on(According with the Ⅱ stage of GB20891-2007) standard emission, meet environmental requirements and guarantee strong power ; Unique cooling way( Parallel radiator)to ensure uniform distribution of temperature,even in the hot summer also can ensure that your equipment working normally.

C	Max. Digging Height	7234 mm
D	Max. Dumping Height	5050 mm
B	Max. Digging Depth	3944 mm
A	Max. Digging Radius	6933 mm
E	Digging Radius at Excavator Standing Plane	6667 mm
	Max. Dozing Height	440 mm
	Max. Dozing Depth	200 mm
	Max. Digging Force of Bucket	55 KN
	Max. Tractive Force	(80 ml/h 44KN,107 ml/h60KN)
	Grade ability	50 %
	Swing Speed	10 r/min
	Travel Speed	0~30 km/h
