Static Extracting Tank

Static extracting tank can be used in Chinese medicine, food and chemical industries to normal pressure, micro-pressure, water frying, warm soaking, heat cycling, cycling leaking, redolent oil extract and organically solvent recycle. The facilities have the advantages such as high efficiency and simple operating; the CIP cleaning system is in accordance with GMP standards.

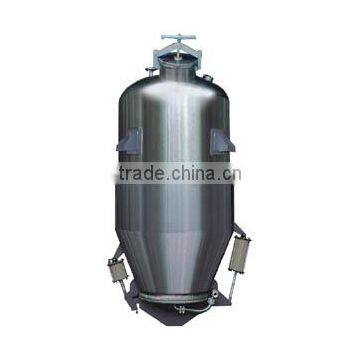

Structure of Static Extracting Tank

Usages of Static Extracting Tank

Static extraction tank without agitator is to service at such industries as China traditional drug, foodstuff and chemistry for the technologies such as water decocting, warm immersion, and thermal circumfluence, compelled recycle and leakage, extraction of aroma oil and reclamation of organic.

Characteristics of Static Extracting Tank

    1. The extracting tank has good anti-leakage device, and is provided with sufficient safety assurance measures. Therefore, it can meet some special extracting requirements, such as pressurization through passing compressed air into the extracting tank or fumigation treatment to the material through passing steam of certain amount of pressure into the extracting tank etc.
    2. The bottom of the extracting tank adopts double-layer filtration boards, which are divided into filtration supporting board and main filtration board. There are long holes of 0.5*10mm distributed on the main filtration board, which are carried out laser machining with smooth surface. The double-layer filtration boards can be opened for the convenience of observation and cleaning. The bottom of the extracting tank is provided with solvent distributing space and diversion parts, which are especially suitable for circulative extraction and transfer of solvent.
    3. The special sight glass with scraping brush is allocated at the top of the extracting tank, which can endure high pressure of the tank. Moreover, the sight glass lamp is separated from the sight glass with better lighting effect and large observation area.
    4. The welding machine type honeycomb jacket is adopted, which has such advantages as small volume and high heat exchange efficiency. It can save about 15% of steam used for heating solvent. The heat preservation jacket can be additionally made outside the honeycomb jacket.

Technical Parameters of Extracting Tank

Style No	TQ-1000	TQ-2000	TQ-3000	TQ-6000	TQ-8000	TQ-10000
Volume	1200	2300	3200	6300	8500	11000
Tank design pressure(MPA)	0.09
Jacketed layer design pressure(MPA)	0.3
Feed orifices diameters(mm)	400	400	400	500	500	500
Heating area (M2)	3	4.7	6.8	10	12	15
Condensation area (M2)	4	5.4	8	10	15	18
Cooling area(M2)	1	1	1.5	2.2	2.2	2.2
Filter area(M2)	0.25	0.25	0.25	0.3	0.3	0.36
Slag discharge door diameters(M2)	800	800	800	1000	1000	1000
Gas consumption(kg/h)	285	346	570	718	903	1140
Equipment weight(kg)	1800	2050	2400	3025	4030	6500
Heating steam orifices	DN-50	DN-50	DN-60	DN-60	DN-80	DN-80
Secondary orifices	DN-80	DN-80	DN-100	DN-100	DN-100	DN-100
Cooling water orifices	DN-50	DN-50	DN-60	DN-60	DN-70	DN-70
Motor power(KW)	2.2	4	5.5	5.5	7.5	7.5
Stirring speed(rpm)	21	21	32	32	32	32

1,traditional Chinese medicine extraction tank need to clear the material in the model selection of the design characteristics, operating conditions and scope of form a complete set of components that can call in detail.

2,Technical parameters of extracting tank can be adjusted according to the actual working condition of physical properties.

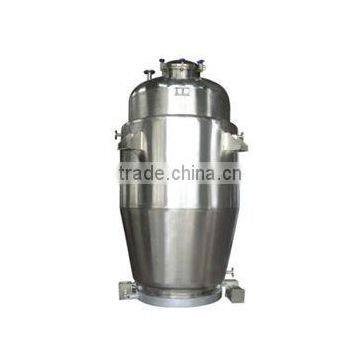

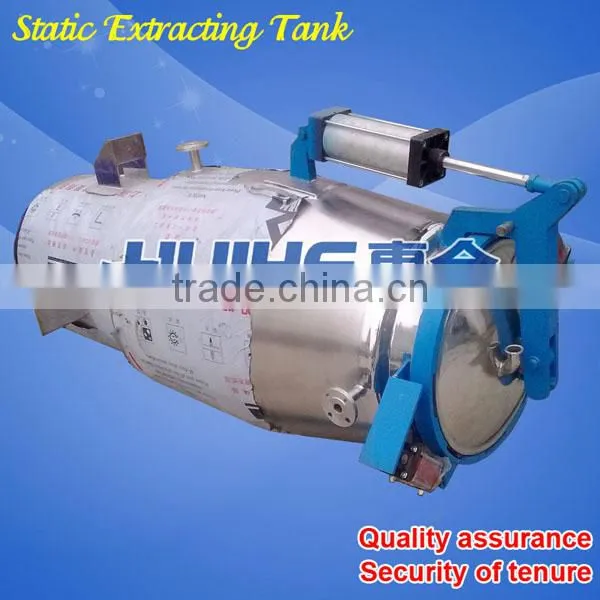

Static Extracting Tank Finished Picture
