Plastic Thermoforming Filling Sealing Machine

Plastic Thermoforming Filling Sealing Machine

Application:

Plastic cup thermoform fill seal machine is used for production of yogurt, milk, fruit juice, jam and condiment etc. It can automatic complete the cup thermoforming, filling and sealing, product output etc all steps.

Production description for Plastic Thermoforming Filling Sealing Machine :

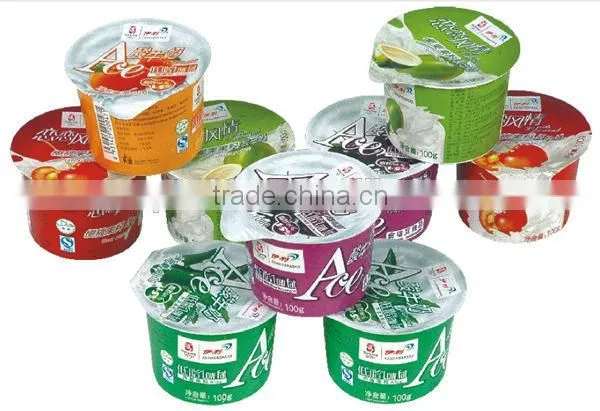

Plastic Cup thermoform fill seal machine can fill soya milk ,water, yogurt , jam, juice , ice-cream ,condiment etc.

Process from plastic cup forming,  filling,  sealing, date  printing, cutting and product  transportation  is completed full - automatically.  These machines are equipped  with world  famous top brands systems of servo drive, PLC,  touch panel,  temperature control,  photoelectric control, pneumatic control, automatic lubricating, etc.

Plastic Cup thermoform fill seal machine full-automatic equipments for high-quality, high-efficiency, low power consumption production in modernized enterprises.

Main technical parameter for Plastic Thermoforming Filling Sealing Machine :

Filling capability: 10 to 300ml

Max Output: 10000cups/ hr, 25ml per cup

Filling precision: within 1%

Sealing quality percent of pass: ≥99.5

Total power:30kW

Electricity supply: 3N-PN-50Hz, 380V/220V

External dimensions: 6150mm x 1150mm x 2400mm

Total weight: About 2.8 tons

Roll Film material: three-layer complex film

Air pressure: 0.6Mpa min

Air consumption: 1.6 M3/min

Remark: We can provide  the customized product according to customer's demand

1. Bottom Film driving system

Chain

Film storage unit

2. Pre-heating& forming

Pre-heating board

Air cylinder (JAPAN  SMC)

Switch (JAPAN  Omron)

Bearing (Germany  IGUS)

Temperature. sensor (JAPAN  Omron)

Heating pipe

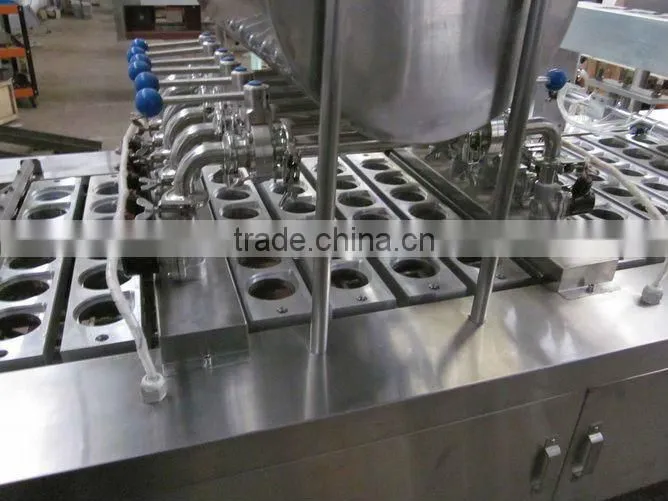

3. Filling system

Filling valve

Filling head

Storage jar

Air cylinder (JAPAN  SMC)

Pneumatic valve

Switch (JAPAN  Omron)

Sealing ring

Butterfly gate

4. Sealing Film driving system

Film storage platform

Date printing unit

Clutch

Color sensor

Air cylinder (JAPAN  SMC)

Adjusting unit

5. Sealing& cooling system

Sealing board (JAPAN  non-stick plating)

Air cylinder (JAPAN  SMC)

Oil-free lubrication unit

Temp. sensor(JAPAN  Omron)

Heating pipe

6. Cutting system

Cutter combination

Reducer

Switch (JAPAN  Omron)

Oil-free lubrication unit (Germany  IGUS)

7. Main driving system

servo driving (JAPAN  Mitsubishi)

Switch (JAPAN  Omron)

Driving chain unit

8. Controlling system

JAPAN  Panasonic PLC

Human-machine interface (JAPAN  Proface)

Stainless steel electrical control cabinet

Low-voltage apparatus (buttons, contactor, air switch, motor protection, Japan)

Sensor (JAPAN  Omron)

Transducer (JAPAN  Mitsubishi)

9. Frame

Supporting board:  stainless steel

Chassis:  (100X50X5) stainless steel tube

stainless steel faceplate
