stainless steel jacket heating mixing tank
- 80 Set / Sets per Month
- ningbo/shanghai
- T/T Credit Card
Product Details
| Condition: | New | Mixer Type: | Paddle | Product Type: | Paint |
| Application: | Liquid | Additional Capabilities: | Milling | Place of Origin: | Zhejiang, China |
| Brand Name: | DF | Model Number: | FYG-5000l | Max. Loading Capacity: | 5000l |
| Voltage: | 380v | Power(W): | accordingly | Dimension(L*W*H): | accordingly |
| Certification: | CE | Warranty: | 2years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
| Item Name | stainless steel jacket heating mixing tank |
| Material | Be made of SS 316L or SS304,inner polishing≤ Ra0.4μm,outer≤ Ra0.8μm |
| Jacket type(By steam) | Full jacket,half-coil pipe and honeycomb plates according to customer requirements. |
| Mechanical stirring | From all different kind of Paddle,Anchor,Impeller etc,speed can be variable by inverter. |

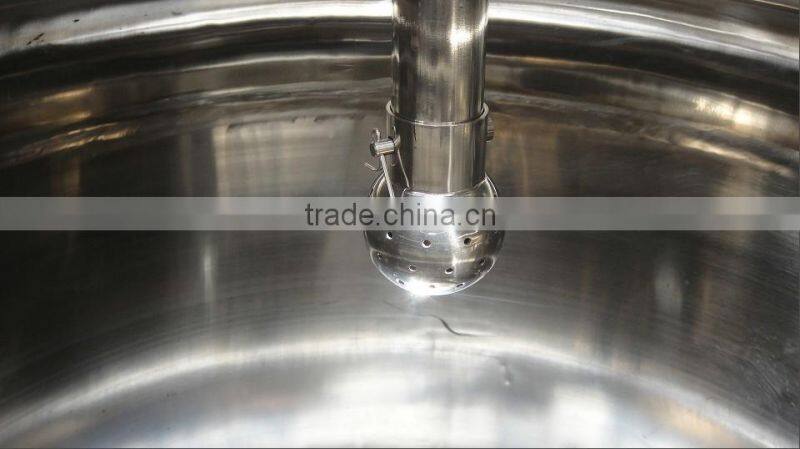

| Equipped with | One CIP Cleaning automatic ball,thermometer 0-150C,pressure gauge,temperature set on control box etc |
| Insulation with | Using Rockwool,Polyurethane Foam,the outer can be matte or mirror processing. |
| Specs: | 100-30,000Litre,even more bigger. |
Primary technical data sheet
Volume(L) | Diameter of the inner (mm) | Diameter of the jacket (mm) | Power of motor (kw) | Stirring speed (r.p.m) |
100 | 550 | 650 | 1.1-1.5 | 60-85 |
150 | 600 | 700 | 2.2 | 60-85 |
200 | 650 | 750 | 2.2 | 60-85 |
300 | 800 | 900 | 2.2 | 60-85 |
500 | 900 | 1000 | 2.2 | 60-85 |
800 | 1100 | 1200 | 4 | 60-85 |
1000 | 1200 | 1300 | 4 | 60-85 |
1500 | 1300 | 1400 | 4 | 60-85 |
2000 | 1400 | 1500 | 4 | 60-85 |
2500 | 1400 | 1500 | 7.5 | 90 |
3000 | 1400 | 1500 | 7.5 | 90 |
3500 | 1400 | 1500 | 7.5 | 90 |
4000 | 1500 | 1600 | 7.5 | 63 |
5000 | 1600 | 1700 | 7.5 | 63 |
6000 | 1800 | 1900 | 15 | 100 |
8000 | 2000 | 2100 | 15 | 100 |
Product Display:
The Controllment of box,
1,Power on/off,2,Stirring on/off,Frenquency inverter set,3,Temperature set-you pointed at a certain number,heating stop automatically when reached that degree.C.
Our company’s advantages over other companies:
Advanced Technology Co., Ltd Wenzhou is the a professional Stainless steel Mixing Equipment,Tank Pressure Vessels,Filters,Beer equipment and brewing technology supplier, who can professionally design, research and develop, and manufacture these equipment.
We can provide clients one-stop service from design, layout, to finished products. Its main business includes beer equipment, self brewing equipment, hotel beer equipment, draft beer dispenser, school laboratory equipment, etc. We mainly provide the capacity 500L/DF, 1000L/DF, 2000L/DF, 3000L/DF, 5000L/D,10000L/D,20000L/D etc.
Our staff of Sales and Technical Support is available to help you in selecting the right protection for your application as well as to provide you with Samples of our products for evaluation. At Advanced Tech., we are committed to providing the Highest level of customer service, Competitive pricing, Speedy delivery and a Comprehensive, cutting-edge product offering. Our ultimate goal is your satisfaction.
Our company’s quality certification:
We have got CE, PED, ISO9001 (2008) certificates. If necessary, we can offer electronic record’s certificates but the original document must be kept in the company.
Our company’s customer segmentation:
Our customer segmentation is mainly focused on the European,American developed countries such as the USA,Canada, Lati-America,the United Kingdom, Australia,
Saudi Arab and Asia etc. At present,we are looking for superior agents to create a brilliant future.
Shipment
Bulk cargo: standard wooden case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: equipment will be bound firmly,won’t easily swing to the side, or up, or down.
Q: Can you give us a quotation right now?
A: Sorry, our products are all different and special. Please give us detailed technical data. Then we will make a design and quotation for you as soon as possible.
Q: Can you give us your price list?
A: Sorry, we don’t have any. Our products are all manufactured according to customers’ requirements. So our products are all different and special.
Q: What is your MOQ?
A: 1 piece/set.
Q: Do you have any one in stock?
A: Sorry, we don’t. Our products are all manufactured according to customers’ requirements. So our products are all different and special.
Q: Do you accept a special order?
A: Yes, we do.
We can manufacture all kinds of chemical equipments according to your technical drawings
Q: Can you make a design for us?
A: Yes, we can. What we supply is not only product, but also solution and design.
Q: Can you give us the technical drawing and data?
A: We will give you the overall dimension drawing for your plan and project. But the detailed drawing and data will be sent you after we signed the contract and confidentiality agreement.
Q: Do you provide after-sales service?
A: Yes, we do. This product is guaranteed up to one year from purchase unless man-made damage. If there is anything wrong with product itself quality problem, we will change or repair it at our charge. If not, we will provide after-sales service at your charge.
Q: Can your engineer come to our place for installation guide?
A: Yes, we can. We will provide a video and document for installation. If you still have problem, we will send our engineer oversea for installation guide.
Q: Where is the nearest port?
A: Ningbo Port.
