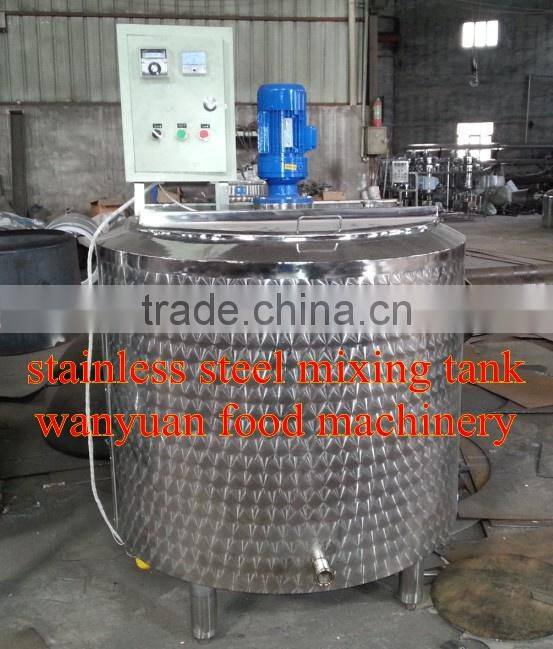

gas heating batch pasteurizer ketchup pasteurization machine

gas heating batch pasteurizer for yogurt / cheese / cream / tomato sauce

chilli paste pasteurizer pasteurization machine

Low temperature batch pasteurizer

Used for Milk / cream / yogurt / tomato sauce / paste

batch pasteurizer Product advantage

1)        Made of stainless steel, suitable for food and beverage production

2)        Electric operated

3)        With temperature gauge <range 0~150degree>

4)        CIP friendly

5)        Digital temperature control and display

6)        100L to 500L available

batch pasteurizer Structure

• 3 layer of walls contracture, with top class thermal insulation performance
• Inner wall and middle wall make up the jacket which allowed thermal oil and heating elements working in it.
• Conical bottom, easy to discharge
• high effectively, low energy waste

batch pasteurizer Contraction material

²  Stainless steel 304

²  Motor power: 0.75KW

²  Agitator speed: 36rpm

batch pasteurizer Tank dimension 500L capacit ones

u  Inner diameter: 800mm

u  Outer diameter: 960mm

u  Inner height: 1000mm

u  Total height: 1650mm

optional devices for batch pasteurizer

batch pasteurizer Optional Configuration

1. Mixing speed can be customized,
2. Fixed speed: 36r/min mixing speed, 90r/m mixing speed, or 200rpm mixing speed
3. Variable speeds: range of infinitely variable speeds 0 to 200r/min
4. Frequency control
5. Agitate / mixing device shape can be customized batch pasteurizer for yogurt / cheese / cream / tomato sauce / chilli paste pasteurizer

gas heating batch pasteurizer optional devices

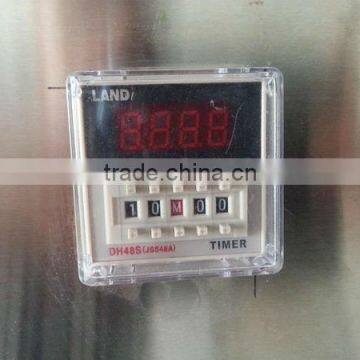

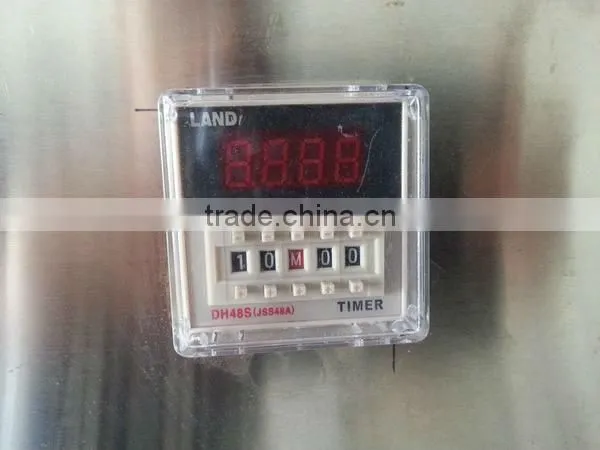

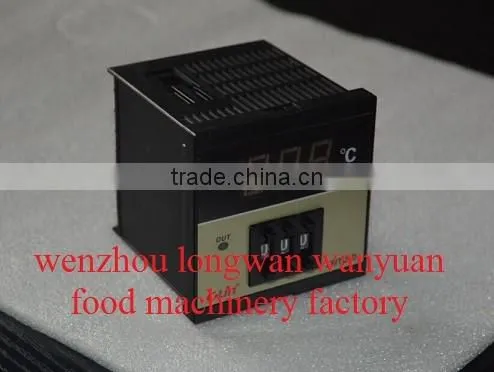

Temperature can be controlled automatically

For example: if you want to pasteurize milk at 85 degree Celsius, and keep this temp for 30 minutes, you only need to input your temperature request and time request to the system, and then turn on the switch of heating is ok.

When temperature arrived at 85 DC, system will automatically keep this temperature and last for 30 minutes as you need. When 30 minutes ended, system will alarming.

batch pasteurizer for yogurt / cheese / cream / tomato sauce / chilli paste pasteurizer

 &amp;lt;img src="/img/pb/594/491/814/814491594_473.jpg" alt="batch pasteurizer for yogurt / cheese / cream / tomato sauce / chilli paste pasteurizer" ori-width="409" ori-height="124"&amp;gt;

If above mentioned temp control cannot meet your request, we have paperless recorder for you. All temperature change can be recorded and shown by real-time curve. Of course, this system allowed you download the temp history to your Computer and you can print them if needed.

batch pasteurizer for yogurt / cheese / cream / tomato sauce / chilli paste pasteurizer

This kind of control system adopts full automatic control. What you need to do is set up the program by move your finger, is it very easy?

&amp;lt;img src="/img/pb/594/488/814/814488594_654.jpg" alt="batch pasteurizer for yogurt / cheese / cream / tomato sauce / chilli paste pasteurizer" width="468" height="208" ori-width="468" ori-height="208"&amp;gt;

batch pasteurizer for yogurt / cheese / cream / tomato sauce / chilli paste pasteurizer

After you set up the program, the system will start its work as the program.

The record of the pasteurization history will be recorded on a memory card which allowed you to printer them any time. Of course, real-time temperature curve is shown clearly on the displayer.
