2 ton air motor drive explosion proof cable winches
- 10000 Set / Sets per Month
- Shanghai Qingdao or Tianjin
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Henan, China | Brand Name: | GEC | Model Number: | 2 ton |
| Power Source: | Pneumatic | Application: | Other, mine or other | Capacity: | 20KN |
Product Description

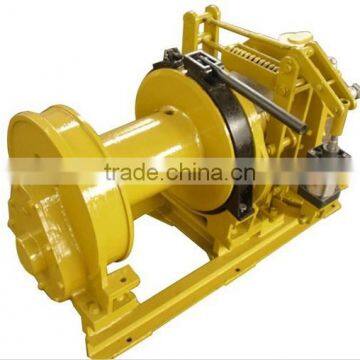

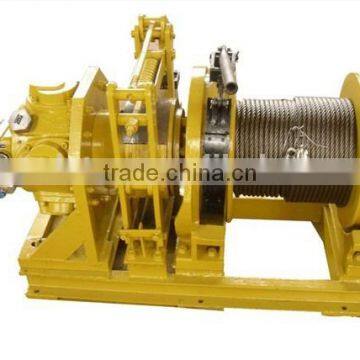

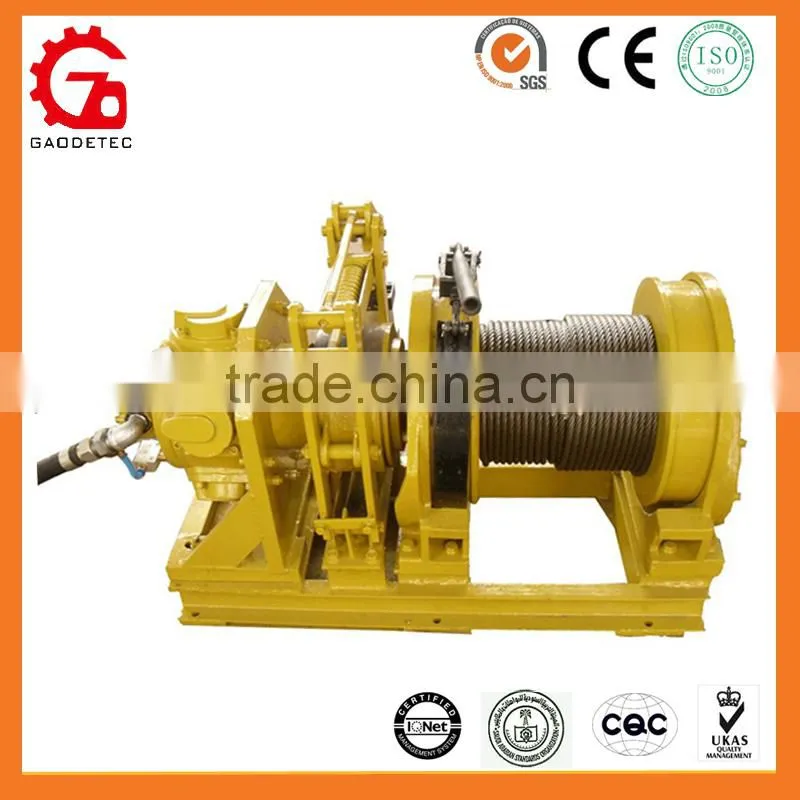

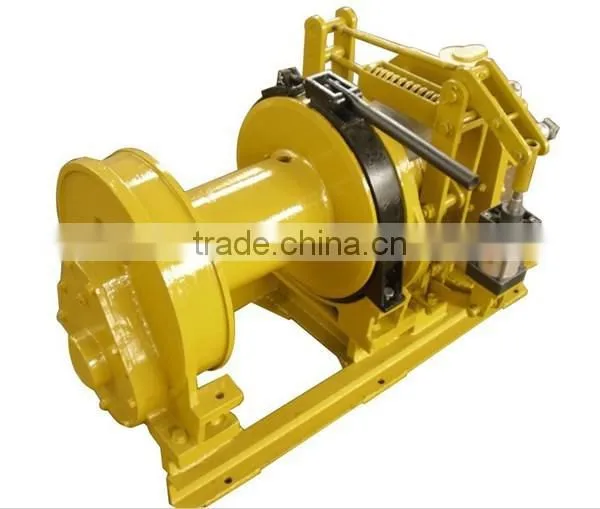

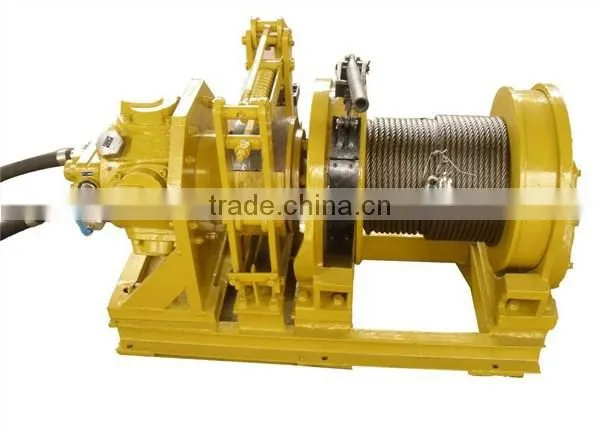

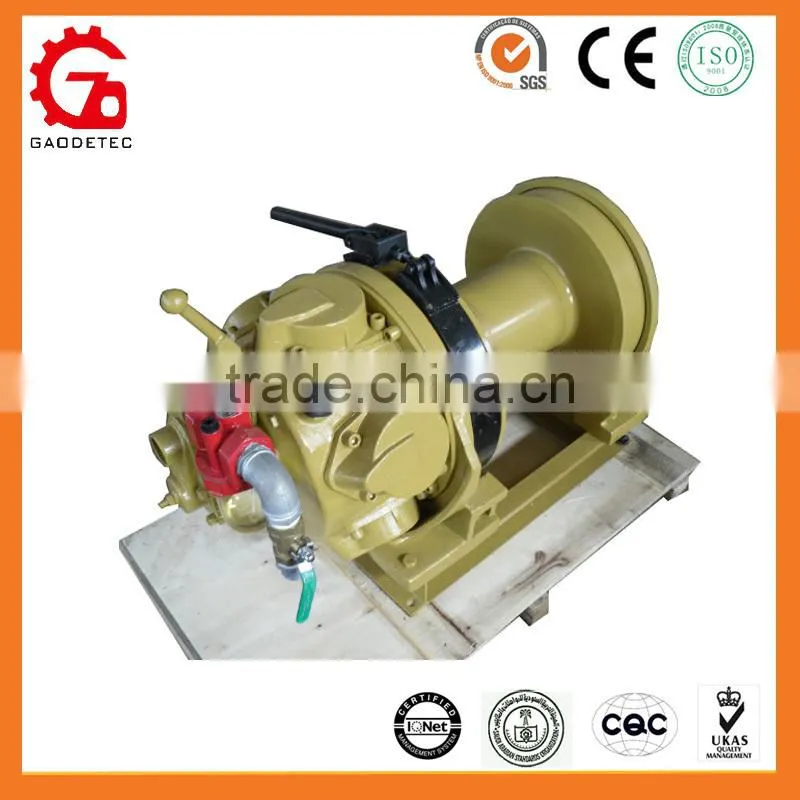

2 ton air motor drive explosion proof cable winches

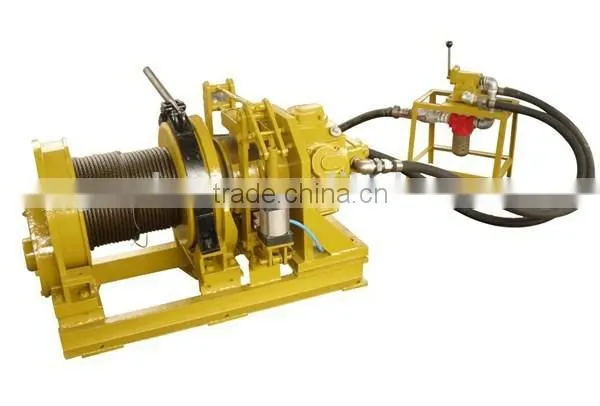

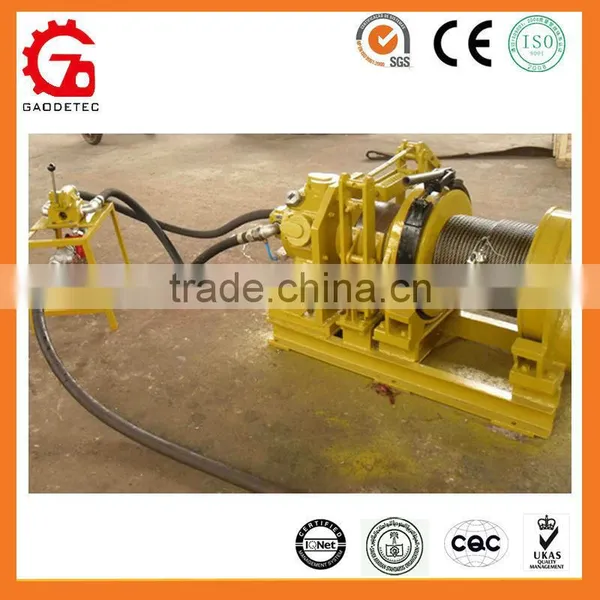

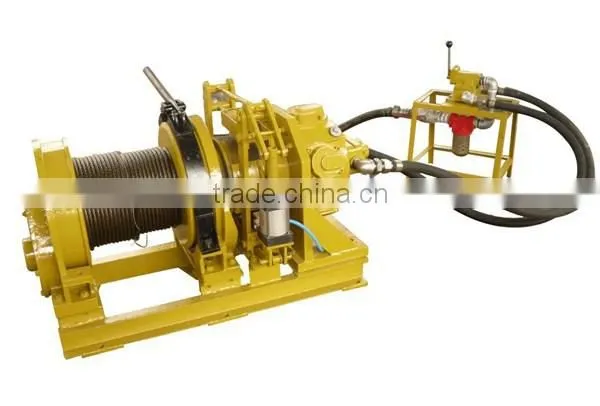

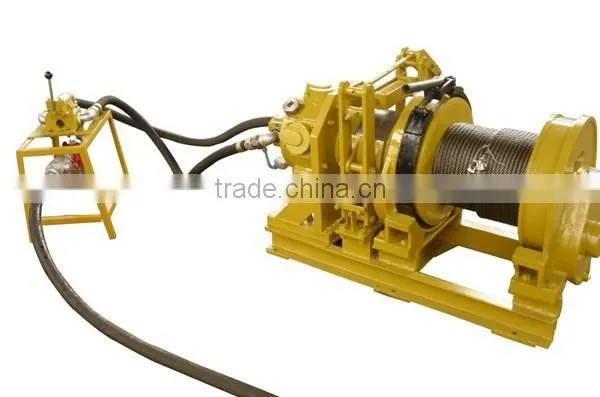

This remote control explosion proof 2 ton mining air winch is powered by GMH8 piston air motor and remotely operated. It’s mainly used for pulling or lifting heavy things in metal mine, coal mine, construction project, oil field, etc.
I t has reasonable design, compact structure and convenient control.
Characteristic of 2 ton air motor drive explosion proof cable winches:
1.reasonable design,compact structure
2.easy to operate
3.stable under extremely condition
2 ton air motor drive explosion proof cable winches:
1 | Air pressure(Mpa) | 0.6-0.8 | |
2 | Rated Tension(KN) | 20 | |
3 | Rated Speed(m/min) | 24 | |
4 | Air motor | Rated power(KW) | 8 |
Cylinder Qty.(pcs) | 5 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 222 | ||
width(mm) | 335 | ||
Rope capacity(m) | 150 | ||
6 | Rope diameter(mm) | 16 | |
7 | Air hose diameter(inch) | 1.25 | |
Other mining air winches:

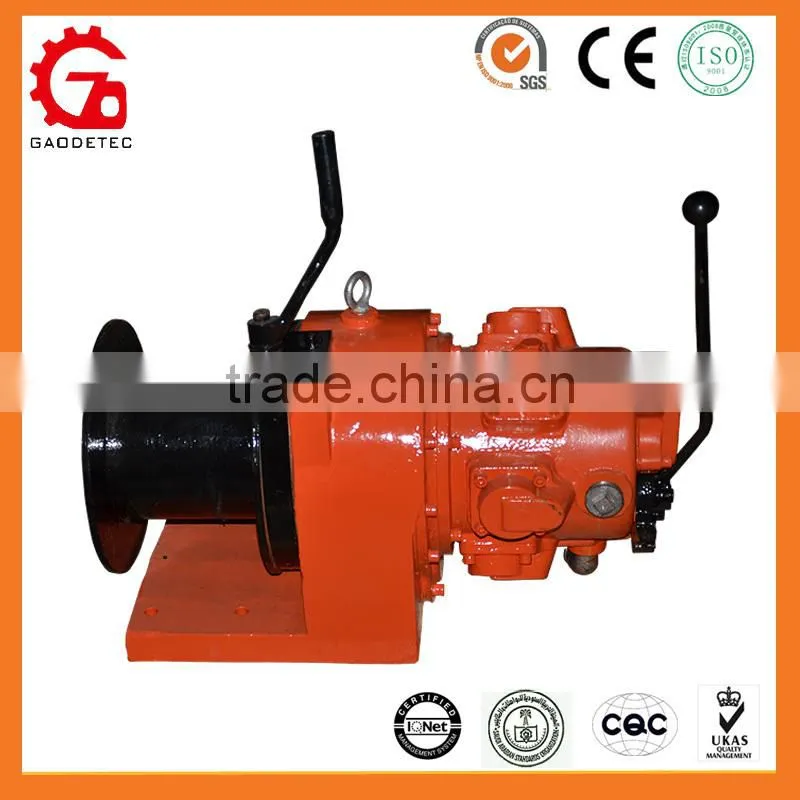

1 ton Air Winch | |||
1 | Air pressure(Mpa) | 0.6 | |
2 | Rated Tension(KN) | 10 | |
3 | Rated Speed(m/min) | 24 | |
4 | Air motor | Rated power(KW) | 4.4 |
Cylinder Qty.(pcs) | 6 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 180 | ||
width(mm) | 200 | ||
Rope capacity(m) | 120 | ||
6 | Rope diameter(mm) | 8 | |
7 | Air hose diameter(mm) | 25 | |
8 |
dimension
| length(mm) | 757.5 |
width(mm) | 350 | ||
height(mm) | 521 | ||
2 ton Air Winches:
1 | Air pressure(Mpa) | 0.6-0.8 | |
2 | Rated Tension(KN) | 20 | |
3 | Rated Speed(m/min) | 24 | |
4 | Air motor | Rated power(KW) | 8 |
Cylinder Qty.(pcs) | 5 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 222 | ||
width(mm) | 335 | ||
Rope capacity(m) | 150 | ||
6 | Rope diameter(mm) | 16 | |
7 | Air hose diameter(inch) | 1.25 | |
3 ton Air Winch | |||
1 | Air pressure(Mpa) | 0.6-0.8 | |
2 | Rated Tension(KN) | 30 | |
3 | Rated Speed(m/min) | 24 | |
4 | Air motor | Rated power(KW) | 15 |
Cylinder Qty.(pcs) | 5 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 222 | ||
width(mm) | 335 | ||
Rope capacity(m) | 150 | ||
6 | Rope diameter(mm) | 16 | |
7 | Air hose diameter(inch) | 1.5 | |
5 ton Air Winches | |||
1 | Air pressure(Mpa) | 0.6-0.8 | |
2 | Rated Tension(KN) | 50 | |
3 | Rated Speed(m/min) | 12 | |
4 | Air motor | Rated power(KW) | 15 |
Cylinder Qty.(pcs) | 5 | ||
5 |
Drum | quantity | 1 |
diameter(mm) | 222 | ||
width(mm) | 335 | ||
Rope capacity(m) | 150 | ||
6 | Rope diameter(mm) | 20 | |
7 | Air hose diameter(inch) | 1.5 | |
10 ton Air Winches:
1 | Air pressure(Mpa) | 0.8 | |
2 | Rated Tension(KN) | 100 | |
3 | Rated Speed(m/min) | 6 | |
4 | Air motor | Rated power(KW) | 18.4 |
Cylinder Qty.(pcs) | 5 | ||
5 |
Drum | OD(mm) | 800 |
ID(mm) | 430 | ||
Width(mm) | 550 | ||
Rope capacity(m) | 100 | ||
6 | Rope diameter(mm) | 24 | |
7 | Air hose diameter(mm) | 50 | |
8 |
Dimension
| length(mm) | 2860 |
width(mm) | 970 | ||
height(mm) | 900 | ||

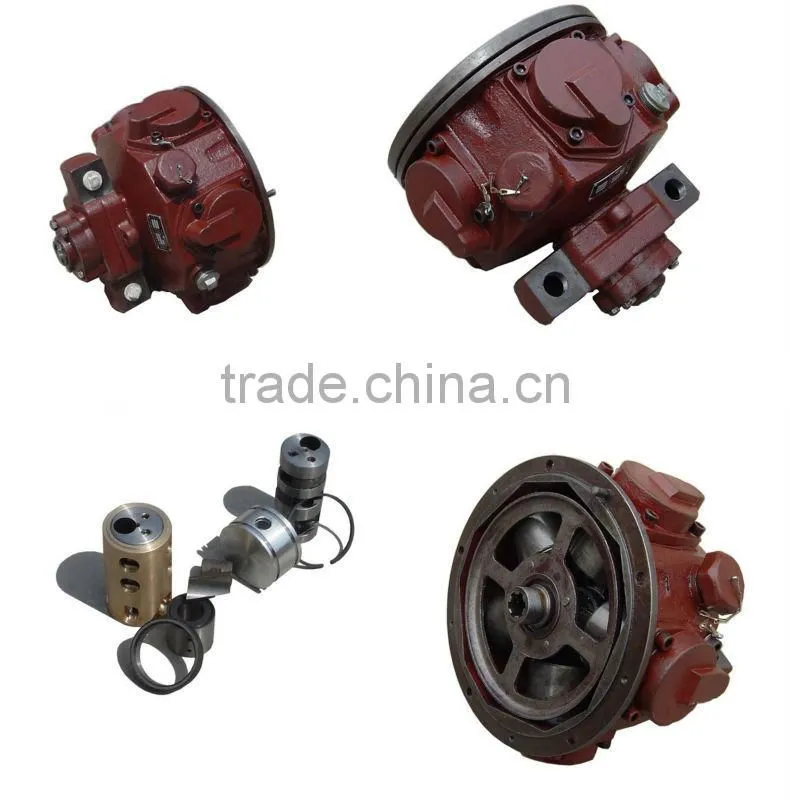

Air Winches with Piston Air motor:
2 ton air motor drive explosion proof cable winches
