Factory Direct Sales GSZ3000V New Durable Wet Shotcrete Machine
- 1000 Set / Sets per Month
- Shanghai or as your request
- T/T L/C D/P D/A Credit Card PayPal
-
GZ3ER ISO supplier refractory dry mix concrete shotcrete machine
-
GZ3 Small Project Diesel Engine Spray Gun Machine
-
GZ-5 diesel drive dry shotcrete gunite machine
-
GSZ3000 ISO supplier famous brand diesel wet shotcrete machine for sale
-
GSZ800 Electric Drive Wet Shotcrete Machine with CE ISO
-
GSZ3000 ISO supplier made in China wet mix shotcrete machine
Product Details
| Condition: | New | Max. Conveying Distance: | 35m(wet) / 200m(dry) | Max Aggregate Size: | 15mm |
| Hose Inner Diameter: | 50 mm | Air Consumption: | 10~12m³/min | Place of Origin: | Henan, China |
| Brand Name: | GEC | Model Number: | GSZ3000V | Voltage: | 220V, 380V, 440V, 660V, 50Hz/60Hz |
| Power(W): | 7.5KW | Dimension(L*W*H): | 1580*850*1250mm | Weight: | 950kg |
| Certification: | CE, ISO and so on | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Factory Direct Sales GSZ3000V New Durable Wet Shotcrete Machine
GSZ3000V wet shotcrete machine with variable output is an updated version, based the popular equipment in China. And it mainly is used for dry/wet spraying concrete. With comparing the popular equipment, its advantages are easy sealing, smooth stream and uniform spraying. It also has some obvious advantages such as advanced technology, Perfect structure, stable performance, convenient operation and longevity of service etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
wet and dry shotcrete machine Technical Data:
| Rated output | 2-5m3/h |
| Max. horizontal conveying distance | 35m(wet)/200m(dry) |
| Max. aggregate size | 15mm |
| Concrete slump | 8~15cm(wet) |
| Conveying hose dia. | 50/65mm |
| Operating air pressure | 0.2~0.6MPa |
| Air consumption | 10~12m3/min |
| Rotor Rev. | 5-12r/min |
| Rebound | ≤10 % |
| Main electric motor power | 7.5kW |
| Variable gearbox: | MBLY75 |
| Overall dimension(L×W×H) | 1580×850×1250mm |
| Weight | 950Kg |

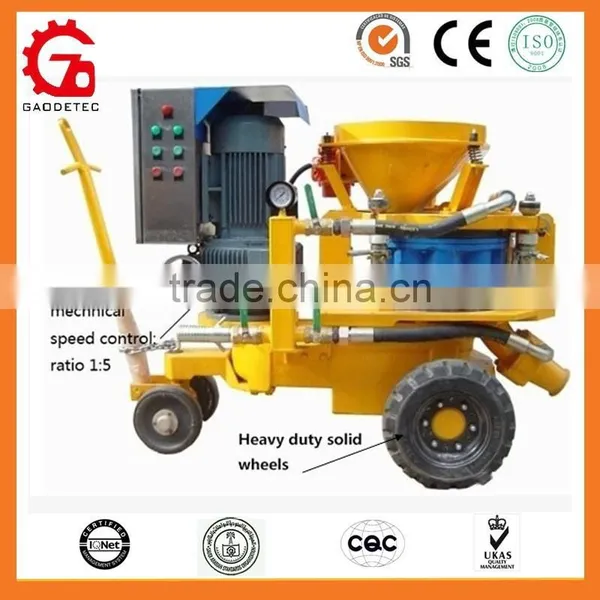

wet shotcrete machine Pictures from different angles:

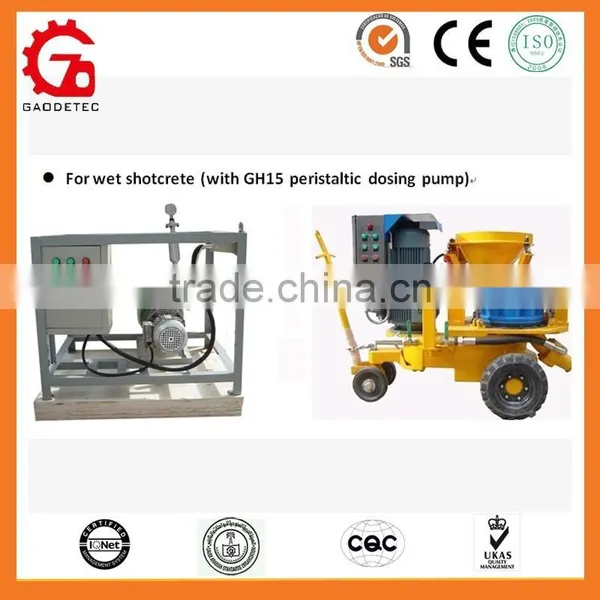

Dosing pump used for wet shotcrete:
wet shotcrete machine Components:
The Comparison of Shotcrete Machine Main Spare Parts:
WEG Motor supports the global service:
Our factory and workshops:
wet shotcrete machine machine Certificates:
wet shotcrete machine Delivery Sites:
wet shotcrete machine Construction Sites:
