GSZ3000V Small Concrete Spray Shotcrete Machine with Variable Speed and WEG Electric Motor

FOB Price

USD $1,000 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port Shanghai or as your request
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Max. Conveying Distance	35m(wet) / 200m(dry)
Max Aggregate Size	15mm	Hose Inner Diameter	50 mm
Air Consumption	10~12m³/min	Place of Origin	Henan, China
Brand Name	GAODETEC	Model Number	GSZ3000V
Voltage	220V, 380V, 440V, 660V, 50Hz/60Hz	Power(W)	7.5KW
Dimension(LWH)	15808501250mm	Weight	950kg
Certification	CE, ISO and so on	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

GSZ3000V Small Concrete Spray Shotcrete Machine with Variable Speed and WEG Electric Motor

Product Description

GSZ3000V Small Concrete Spray Shotcrete Machine with Variable Speed and WEG Electric Motor Description:

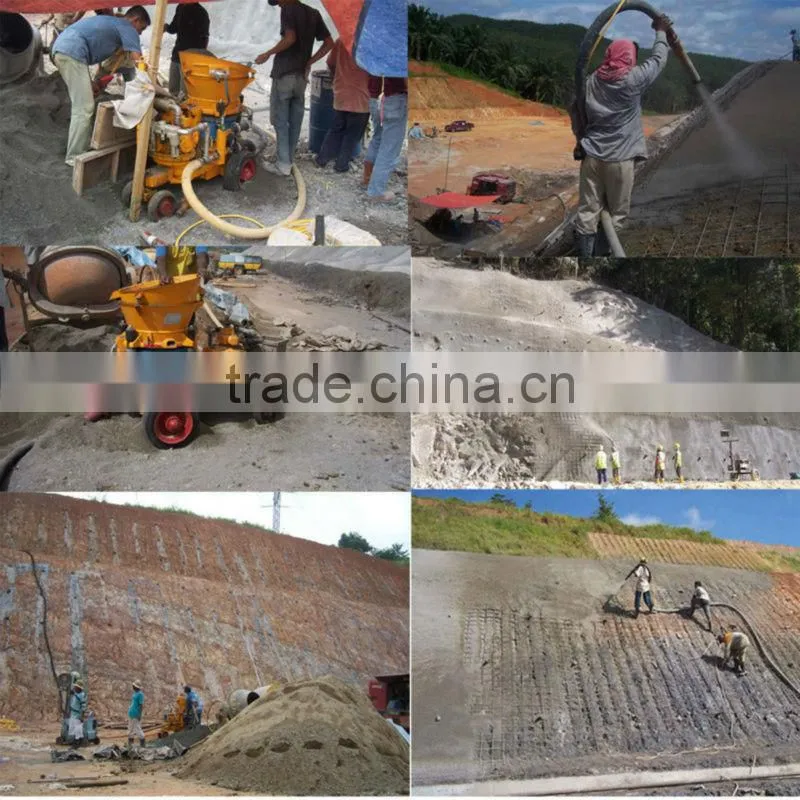

GSZ3000V small shotcrete machine with variable output is an updated version, based the popular equipment in China. And it mainly is used for dry/wet spraying concrete. With comparing the popular equipment, its advantages are easy sealing, smooth stream and uniform spraying. It also has some obvious advantages such as advanced technology, Perfect structure, stable performance, convenient operation and longevity of service etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.

Technical data

GSZ3000V Small Concrete Spray Shotcrete Machine with Variable Speed and WEG Electric Motor Technical Data:

Rated output	2-5m³/h
Max. horizontal conveying distance	35m(wet)/200m(dry)
Max. aggregate size	15mm
Concrete slump	8~15cm(wet)
Conveying hose dia.	50/65mm
Operating air pressure	0.2~0.6MPa
Air consumption	10~12m³/min
Rotor Rev.	5-12r/min
Rebound	≤10 %
Main electric motor power	7.5kW
Variable gearbox:	MBLY75
Overall dimension(L×W×H)	1580×850×1250mm
Weight	950Kg

Application:

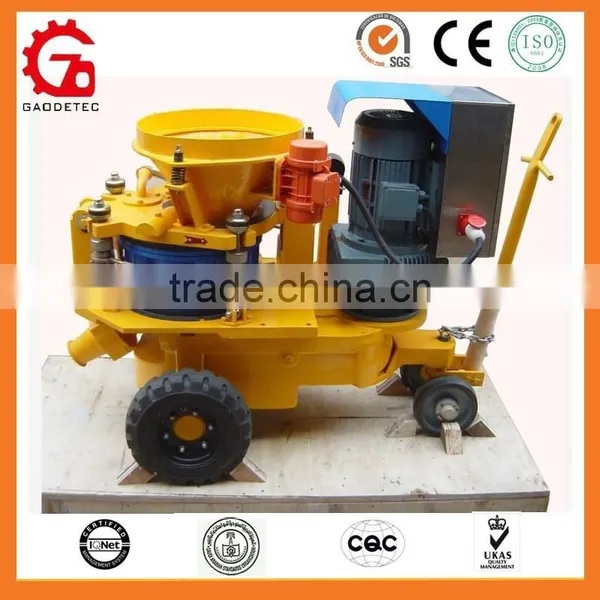

l For dry shotcrete (GSZ3000V shotcrete machine)

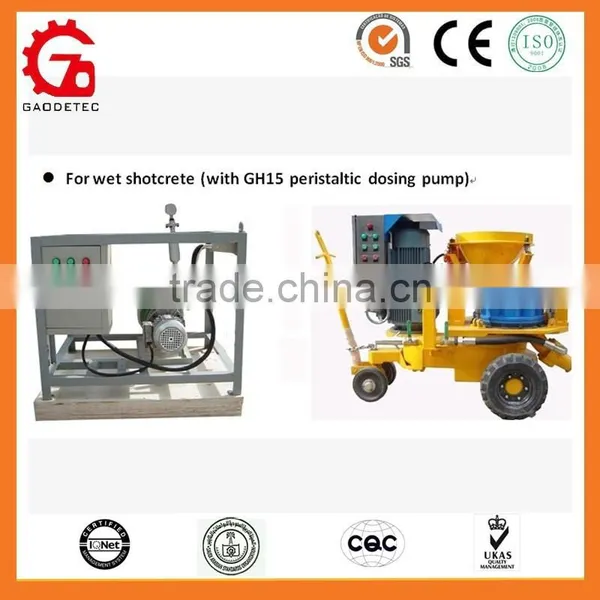

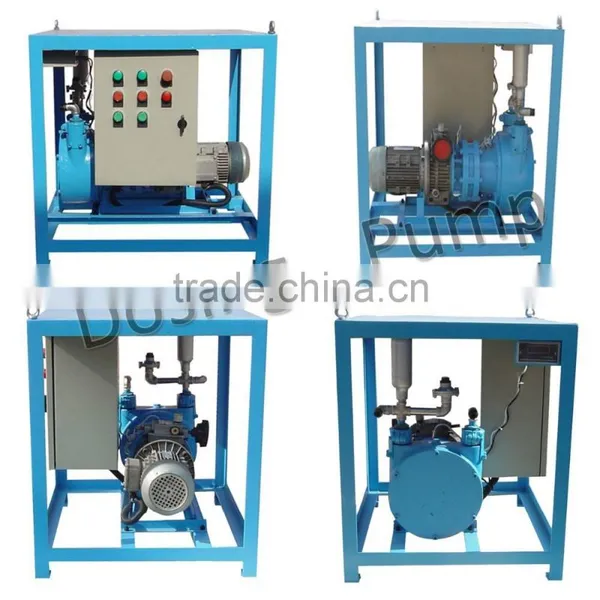

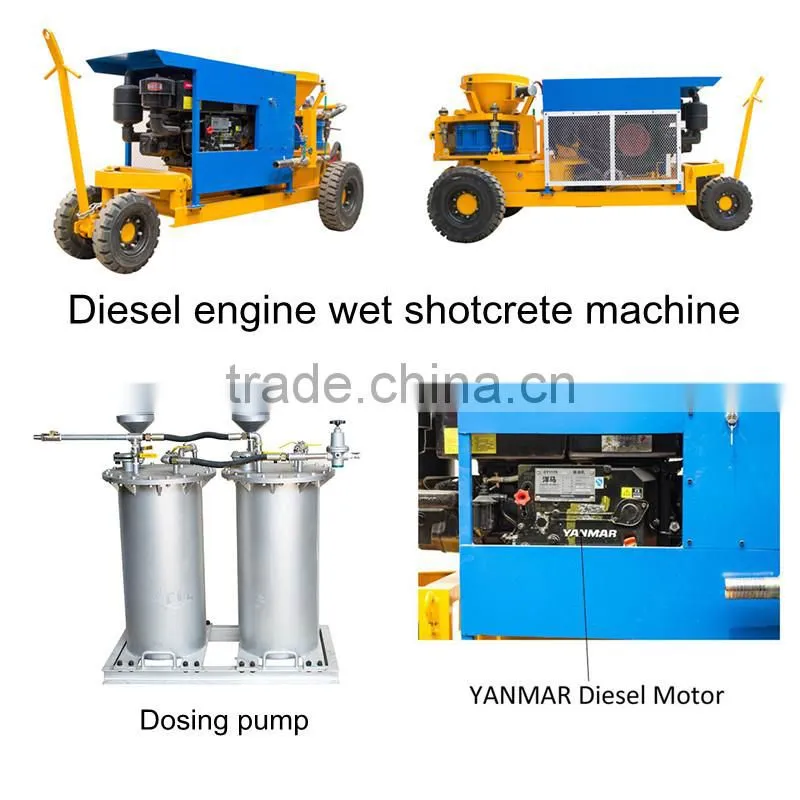

l For wet shotcrete (with GH15 peristaltic dosing pump)

Output Capacity	24-120L/h
Max. Particle Size	3 mm
Max. Work Pressure	8 bar/116PSI
Max. Suck lift	2 meter
Hose Tube ID	15mm
Electric motor	0.75Kw, 3 phase 380V
Overall Dimension(L×W×H)	0.86×0.76×0.85m
Net Weight	105kg

Detailed Images

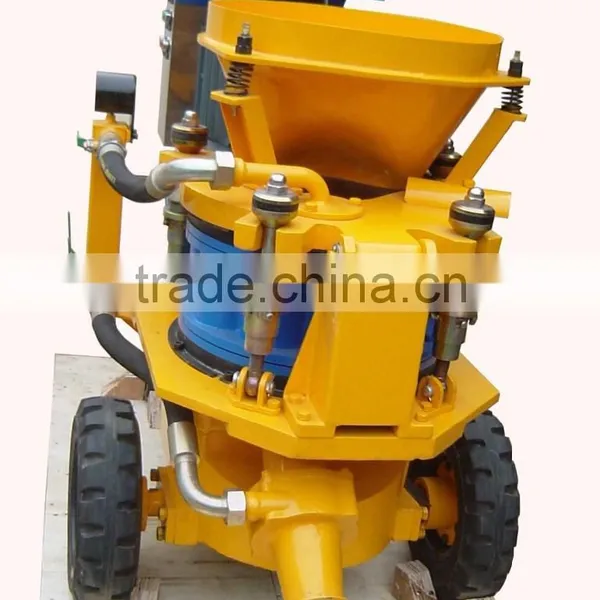

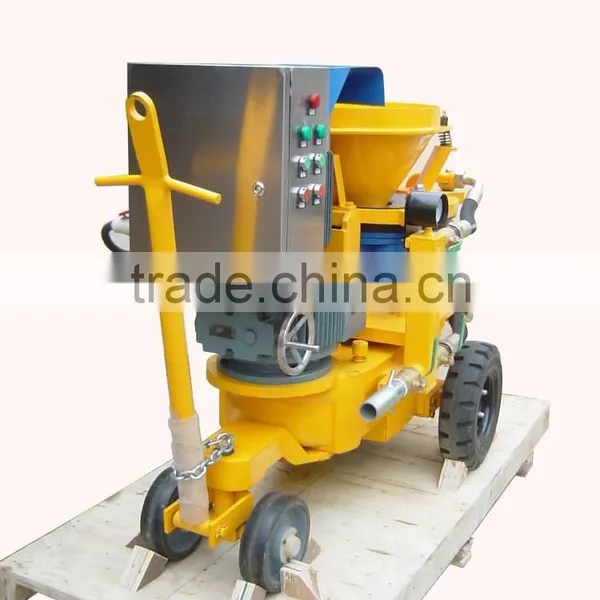

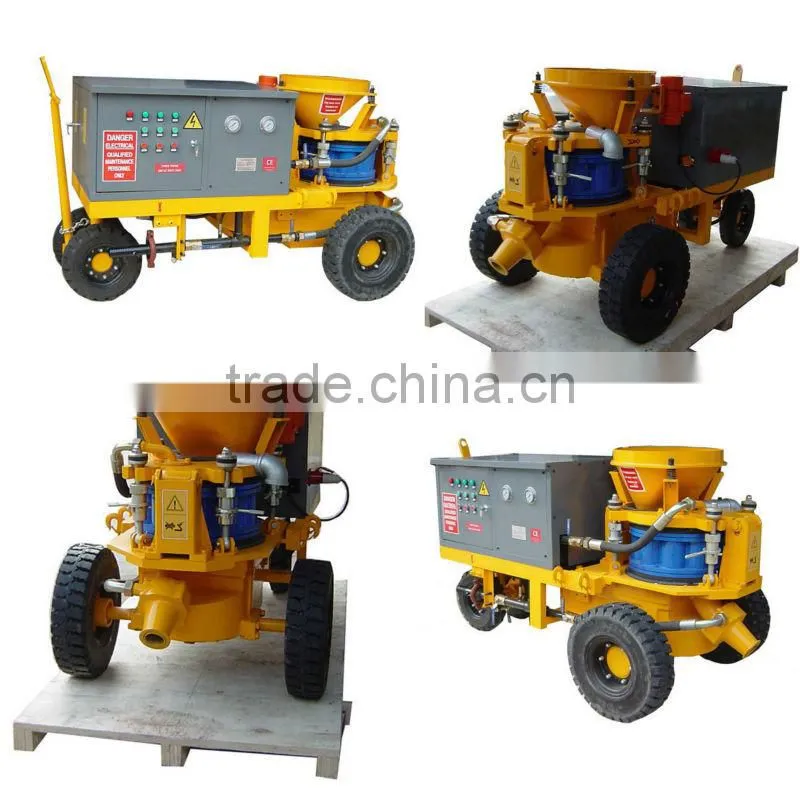

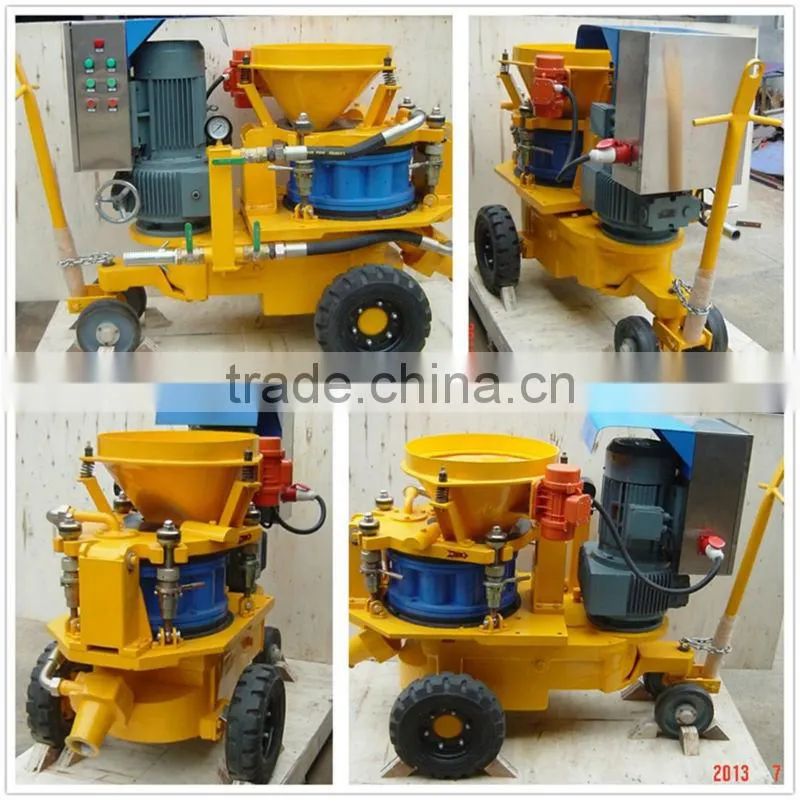

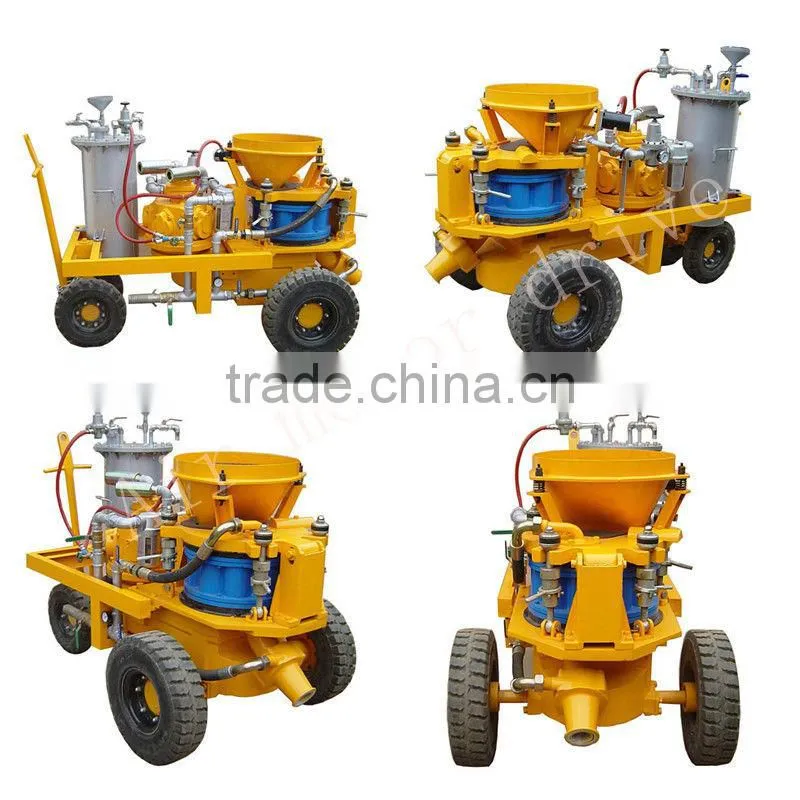

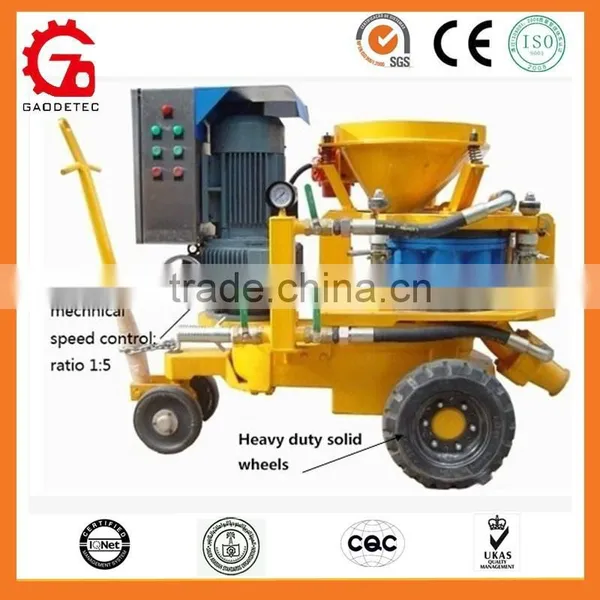

Small Concrete Spray Shotcrete Machine with Variable Speed and WEG Electric Motor from different angles:

Accessories

WEG Motor supports the global service:
