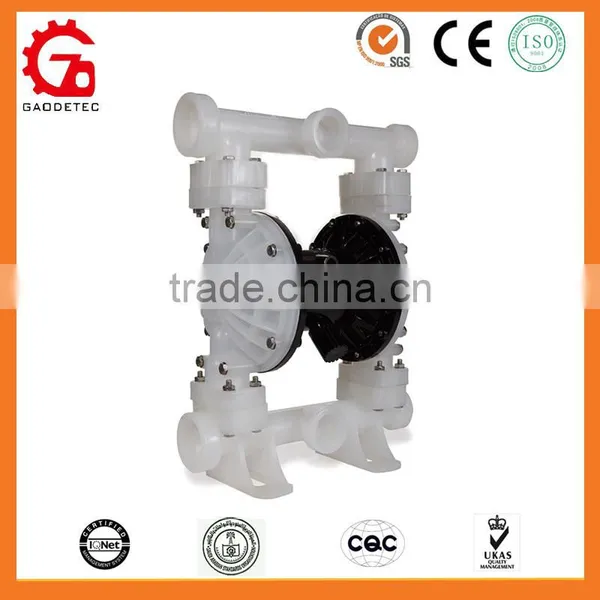

100 psi pneumatic diaphragm pump air

Specifications

diaphragm pump air
1.without injecting water
2.deliver non fluid liquid
3.can be immersed in liquid
4.ISO CE

100 psi pneumatic diaphragm pump air

Introduction of pneumatic diaphragm pump air

GEC air-operated pneumatic diaphragm pump features is designed with simplicity and high reliability, which enable the whole serial products with most reliability in any applications.



Its reversing valve is a three-dimensional pilot valve that ensures “no sticky” in a true sense. All parts can be replaced without opening the fluid cavity. Aluminum parts are treated with anodic oxidation and epoxy coating which can resist corrosion from unclear air.

Wide Application

Advantages

* Robust and compact slider with Derlin material in reversing valve makes sure it could be used in the situation of bad air source.

* Smooth air course and the sizes of air inlet range from 1/2” to 3” with absolutely no obstacle, which guarantees to change directions easily.

* 100% external maintained reversing valve.

* Less moving parts.

* No need to lubricate reversing valve.

* Long mechanical life of Pilot-type reversing valve guarantees its stable running.

* One reversing valve is suitable for various pumps.

Designation of pneumatic diaphragm pump air

QBY3-10 pneumatic diaphragm pump air
Max. Flow	5.0 gallon/min (18.9 L/min)
Max. Working Pressure	100 psi (0.7 Mpa, 7 bar)
Fluid Inlet Size	3/8 in. npt (f)
Fluid Outlet Size	3/8 in. npt (f)
Air Inlet Size	1/4 in. npt (f)
Max. Suction Height (Dry)	8 - 10 ft. (2.5 - 3 m)
Max. Permitted Grain	0.06 in. (1.5 mm)
Max. Air Consumption	9.0 scfm
Every Stroke Flow	0.006 gallon (23 cc)
Every Reciprocating Flow	0.012 gallon (46 cc)
Max. Reciprocating Speed	dry running 320 cycles/min
	wet running 250 cycles/min

Pump Parts Drawings of pneumatic diaphragm pump air

System Drawing of pneumatic diaphragm pump air

Working Sites of pneumatic diaphragm pump air



Various Serial Pumps

Packaging of pneumatic diaphragm pump air



Why Choose GEC Pumps?

* Unsealed design

* Anti-explosion

* Low cutting condition

* Easy to repair

* Allow for idle load running

* Light and convenient

* Start-up of self-absorption

* Multi-material option suit for various materials
