Product Details
| Place of Origin | Henan, China | Brand Name | GEC | |
| Model Number | 4AM |
Product Description
We are a member of trade assurance on Alibaba, and our trade assurance amount is USD45,000.00 Through trade assurance you can 100% payment refund up to trade assurance amount for orders not meeting agreed Delivery or Quality terms.
Widely Used for Air Winch Blade Type Vane Pneumatic Motor
With compressed air as actuating medium, vane air motor makes use of the expansion of compressed gases; convert the pressure energy into mechanical energy. Air motor has simple structure, small size, light weight, high horsepower, and easy to be operated and maintained. It also has the feature of proof water, fire, moisture and explosion. It can work in humid, high temperatures, high dust and other proof working environment. Besides mine, rock drilling and loading, it was also widely used for ships, metallurgical, chemical, paper and other industries.
features:
- Simple structure, small size, light weight, high horsepower, and easy to be operated and maintained.
- proof water, fire, moisture and explosion
- can work in humid, high temperatures, high dust and other proof working environment
Widely Used for Air Winch Blade Type Vane Pneumatic Motor
Model | Maximum Speed | Maximum Torque | ||||||||
Power | Torque | Rotate Speed | Air consumption
| Rotate Speed | Torque | |||||
hp | kw | Nm | lb.in. | rpm | m3/h | cfm | rpm | Nm | lb.in. | |
1AM | 0.45 | 0.33 | 0.31 | 2.75 | 10000 | 35.1 | 20.5 | 650 | 0.65 | 5.6 |
1UP | 0.45 | 0.33 | 0.58 | 5.25 | 6000 | 47 | 27 | 500 | 0.68 | 6.0 |
2AM | 0.93 | 0.68 | 2.20 | 19.50 | 3000 | 49.5 | 30 | 350 | 3.05 | 26.1 |
4AM | 1.70 | 1.30 | 4.10 | 36.00 | 3000 | 132.5 | 78 | 300 | 6.3 | 56 |
6AM | 4.00 | 3.00 | 10.00 | 84.00 | 3000 | 228 | 128 | 300 | 13 | 115 |
8AM | 5.25 | 3.90 | 14.40 | 132.00 | 2500 | 293 | 175 | 300 | 21 | 185 |
16AM | 9.50 | 7.00 | 34.00 | 290.00 | 2000 | 475 | 275 | 300 | 43 | 372 |

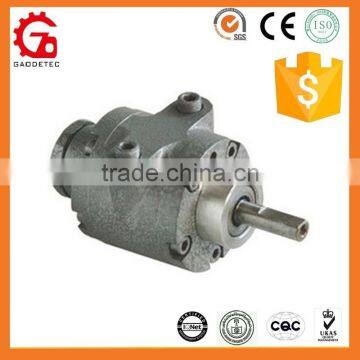

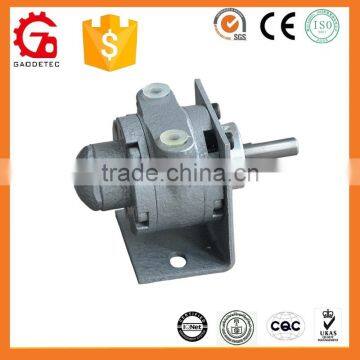

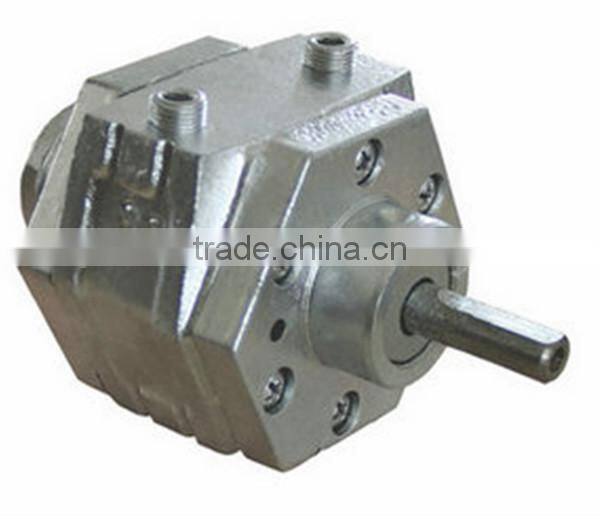

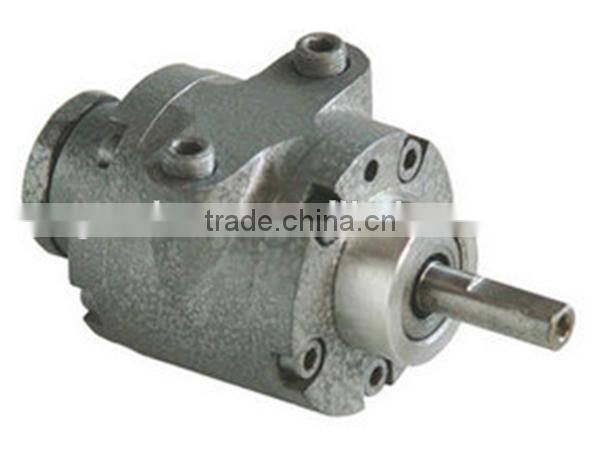

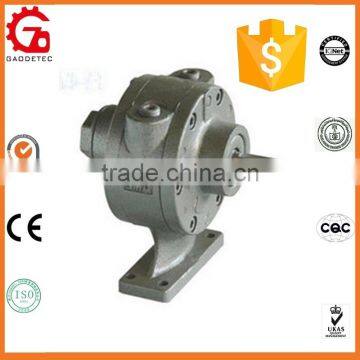

Pictures Blade Type Vane Pneumatic Motor :
New Product !!! 1UP-NRV-15:
New Product !!! 1UP-NCW-95:
Other Model Blade Type Vane Pneumatic Motor:
1AM:
2AM:
New Product !!! 4AM:
6AM:
8AM:
New Product !!! 16AM:

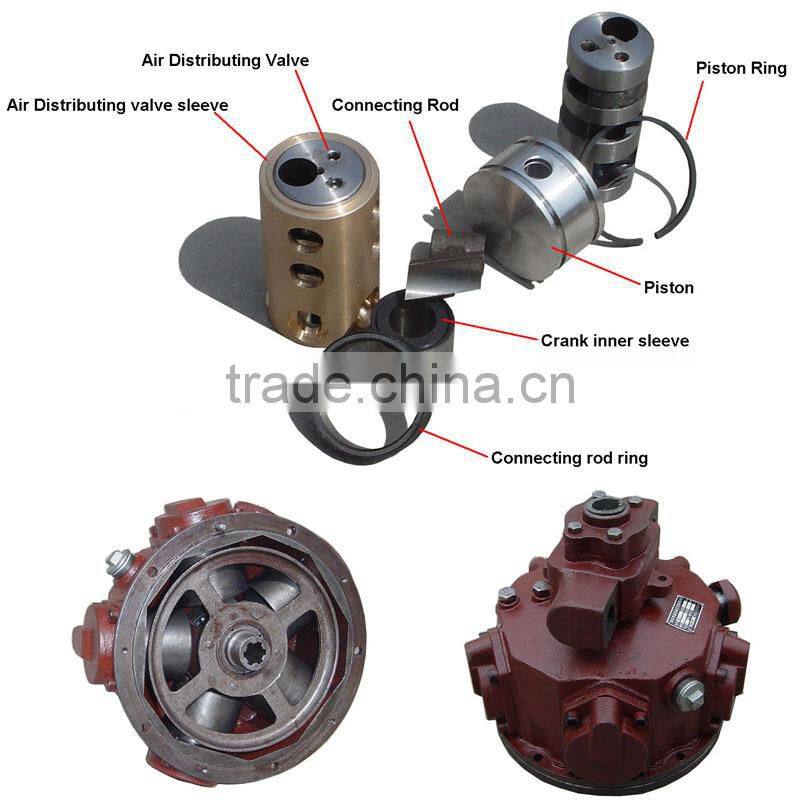

Other Type Pneumatic Motor: Piston Pneumatic Motor
Parameters of Piston Pneumatic Motor
Model | Rated Power Kw(hp) | Rated Rev. RPM | Rated Torque NM | Starting Torque NM | Air Consumption m3/min(CFM) | Working Pressure Mpa(PSI) | Weight KG(lbs) |
GMH3 | 3(4) | 2800 | 10 | 13 | 3.6(129) | 0.5(66) | 24 |
GMH3B | |||||||
GMH3D | |||||||
GMH3.2 | 3.2(4.4) | 1000 | 30.5 | 39.7 | 3.84(137) | 0.5(66) | 22 |
GMH4 | 4(5.4) | 2000 | 21.4 | 27.9 | 4.8(171) | 0.63(83) |
|
GMH4D | 4(5.4) | 1000 | 38 | 49 | 4.8(171) | 0.63(83) | 30 |
GMH4A | |||||||
GMH6 | 5.88(8) | 900 | 62.6 | 81 | 8(286) | 0.63(83) | 72 |
GMH6A | |||||||
GMH8 | 8(10.9) | 650 | 117.5 | 152 | 9.4(336) | 0.63(83) | 74 |
GMH15 | 14.7(20) | 650 | 216 | 280 | 17(607) | 0.63(83) | |
GMH15A | |||||||
GMH18.4 | 18.4(25) | 600 | 286 | 371 | 21.5(768) | 0.63(83) | |
GMH22 | 22(30) | 600 | 300 | 400 | 21(750) | 0.63(91) | |
GMH25 | 25(34) | 600 | 380 | 480 | 27.3(975) | 0.8(115) |
