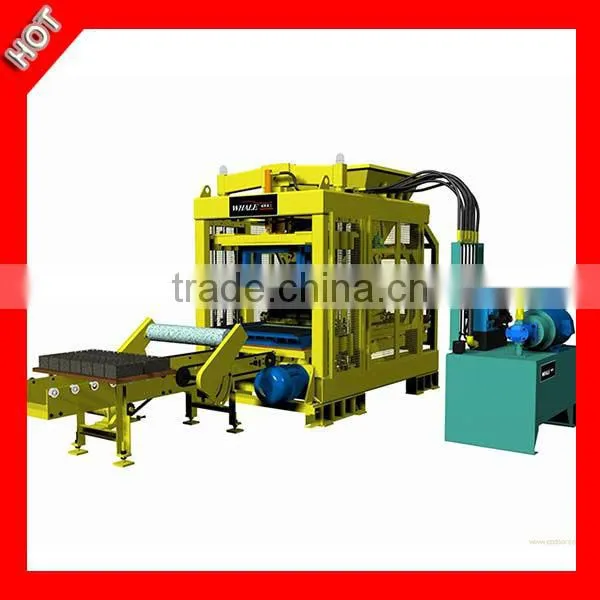

hydraulic concrete block machine

standard export package for hydraulic concrete block machine

Specifications

hydraulic concrete block machine
1.wide raw material range
2.various blocks/bricks
3.durable mould
4.PLC control







hydraulic concrete block machine


1. Introduction and Application of hydraulic concrete block machine

Block machine is also called cement brick machine, hollow brick machine and baking-free brick machine, producing both wall bricks and pavement bricks.

2. Working Principle of block machine
This device Uses slag, fly ash, sand, gravel, cement and others as raw material, through the stirring in proportion and the molding under high pressure, to complete the brick making.

3. Features and Advantages of block machine
Zhengzhou Hongke block machine, has special advantages as follows:
A. Unique structure with multi-row of mixing forks in material box. When material box is sent to above of the molding box, these mixing forks begin working, forcing to lay off materials into molding box, to ensure the smooth baiting and uniform distribution of materials. The uniformity of bricks' strength and weight is very high.
B. Hydraulic system, computer controlled, to realize vertical synchronous vibration, frequency conversion and brake, so as to ensure the high strength and high density of bricks in short time.
C. Equipped with different molds, it can produce various bricks of different shape and specification.



4. Technical parameters of block machine



Model		8-15
Overall dimension(mm)		5400*2500*2700
Cycle time(s)		15-20 seconds
Pallet size(mm)		1020*850*40
Weight(T)		12.8T
Power(kw)		36
Type	Specification	Block number/pellet	Block output/hrs
Standard block	240*115*53	42 pcs	80640
Hollow block	390*190*190	8pcs	15360
Perforated block	240*115*90	20 pcs	38400
Floor brick	200*100*60	24pcs	46080
Remark. The brick size is just the regular size. The fact is that the size can be changed according to the customer’s requirement.
Besides, there are other models of brick making machine, such as DSQT10-15, DSQT6-15A, DSQT4-15, DSQT6-15B, DSQT4-20, and DSQT6-20, etc.





Available raw material: crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes.

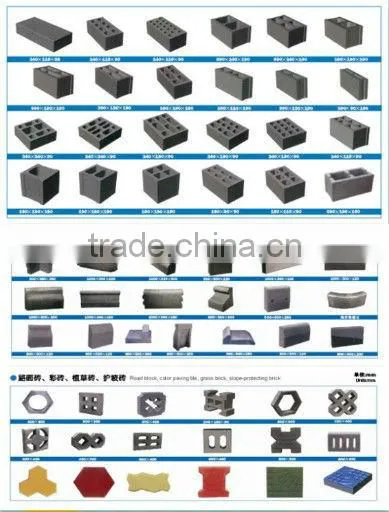

Applied Products: concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc









if you are interested in our block machine, welcome to contact with me!



To service you better, please better confirm the following items:

1.what's raw material for making blocks?

2.what's the block size(L*W*H)? if you have pictures, send me pictures please

3.what's the capacity(pcs/h)?

4.do you have budget on the block machine you are looking for?



Take good advange of the wastes around you,using them, the block machine may bring you big profit!
