Ceramsite Sand Rotary Kiln

standard exporting package

Specifications

ceramsite sand rotary kiln
1. Advance technics
2. Standard testing
3. Perfect service after sale
4. ISO9000, BV

Ceramsite Sand Rotary Kiln



Ceramsite Sand Rotary Kiln Brief Introduction:



1. Ceramsite sand Rotary kiln belongs to building material equipment, which can be divided into cement kiln, metallurgy chemical kiln and lime kiln according to different materials. Cement kiln is used for making of cement clinker and there are dry and wet methods to make cement. Metallurgy chemical kiln is used in metallurgy industry and ironworks for lean iron ore, chromium ore and ferronickel ore calcimine.



2. Ceramsite sand Rotary kiln is used for calcimine of high aluminum vandal ochre in refractory material industry, calcimine of calotte and aluminum hydroxide in aluminum manufacturer, claiming of chrome sand ore and chrome powder ore in chemical plant.



Ceramsite Sand Rotary Kiln Features:



1. Low pressure drop pre heaters.

2. Raw mill equipped with High efficiency separator.

3. Raw Meal blending in CFC silo.

4. Pre calciner suitable to work with alternative fuels.

5. Inlet & discharge fitted with efficient seals.

6. Benchmark cooler design.

7. Low Fuel Consumption.



Ceramsite Sand Rotary Kiln Application:



1. Ceramsite sand Rotary kiln is commonly used in the production process of catalytic agent, molecular sieve and zinc oxide, etc. As a result, you can find a rotary kiln in variety of industries, like steel annealing and nonferrous smelting industries, metallurgy and chemistry fields, and building industries, and more.





2. Ceramsite sand Rotary kiln system, which is also called a rotary calcine kiln, is a commonly used building material machine. Classifying by material properties, a rotary kiln falls into cement kilns, metallurgy chemical kilns, and lime kilns.



Ceramsite Sand Rotary Kiln Woking Principle:



1) With a certain slope to the level, the whole kiln body is supported by rollers and fitted with thrust rollers to control up and down movement of the kiln body.



2) Besides main driving unit for driving system, it is also fitted with the auxiliary driving unit so as to ensure the kiln body still can rotating when the main motor is powered off and prevent it from deforming.



3) The kiln head adopts housing type sealing and kiln rear uses axial contact sealing unit so that reliability of sealing could be ensured.



Ceramsite Sand Rotary Kiln Main Technical Parameters:



Model(mm)	Shell size			Capacity(t/h)	Rotating speed(r/min)	Power(kw)	Weight(t)
	Dia.(mm)	Length(mm)	Slope(%)
1.4×33	1.4	33	3	0.9-1.3	0.39-3.96	18.5	47.5
1.6×36	1.6	36	4	1.2-1.9	0.26-2.63	22	52
1.8×45	1.8	45	4	1.9-2.4	0.16-1.62	30	78.2
1.9×39	1.9	39	4	1.65-3	0.29-2.93	30	77.59
2.0×40	2	40	3	2.5-4	0.23-2.26	37	119.1
2.2×45	2.2	45	3.5	3.4-5.4	0.21-2.44	45	128.3
2.5×40	2.5	40	3.5	9.0-10.5	0.44-2.44	55	149.61
2.5×50	2.5	50	3	6.25-7.4	0.62-1.86	55	187.37
2.5×54	2.5	54	3.5	6.9-8.5	0.48-1.4	55	196.29
2.7×42	2.7	42	3.5	10.0-11.0	0.10-1.52	55	198.5
2.8×44	2.8	44	3.5	12.5-13.5	0.437-2.18	55	201.58
3.0×45	3	45	3.5	12.8-14.5	0.5-2.47	75	210.94
3.0×48	3	48	3.5	25.6-29.3	0.6-3.448	100	237
3.0×60	3	60	3.5	12.3-14.1	0.3-2	100	310
3.2×50	3.2	50	4	40.5-42	0.6-3	125	278

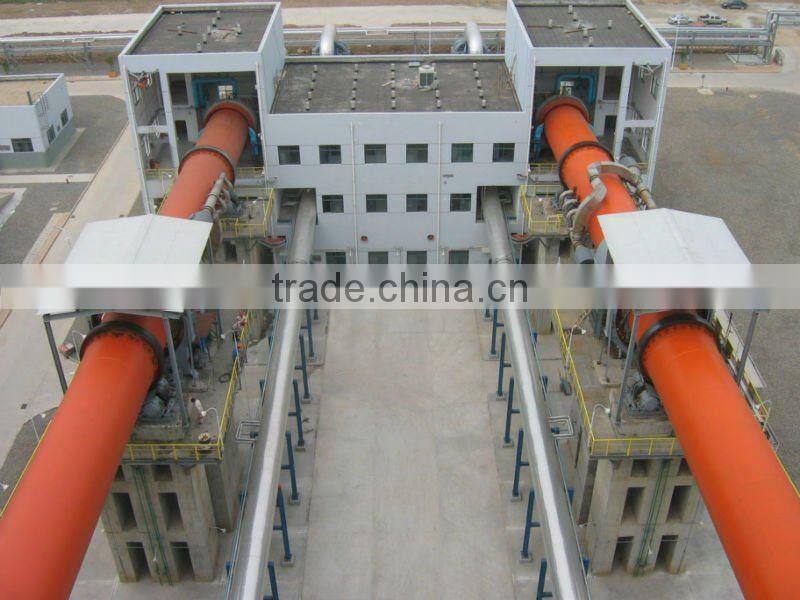

Ceramsite Sand Rotary Kiln Display:

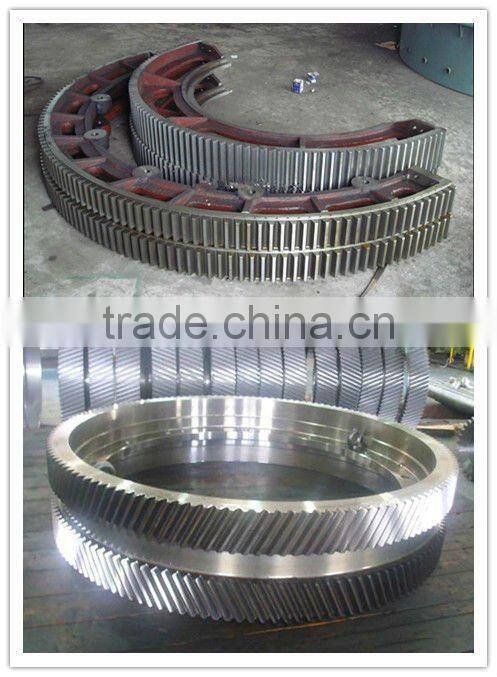

Ceramsite Sand Rotary Kiln Spare Parts:
