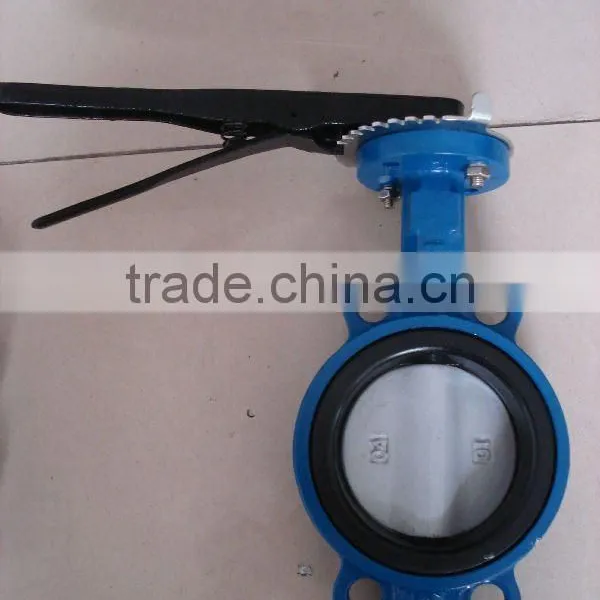

Wafer Type Butterfly Valve Disc Coated Nylon

Specifications

Wafer Type Butterfly Valve Disc Coated Nylon

Wafer Type Butterfly Valve Disc Coated Nylon:

Butterfly Valve is a kind of simple structure,at the same time it can be used for low pressure pipeline medium switch control.,serve as cut off and throttling in the pipeline.



Material:

• The body material: GG25/GGG40/GGG50
• The disc material: DI+Nylon/SS304+Nylon/SS316+Nylon/AL-BZ+Nylon
• The stem material:SS410/SS416/SS420/SS304/SS316
• The seat material: NBR/EPDM/PTFE/VITON



Design Standard:

API 609/ISO 5752/BS5155



Flange Standard:

ANSI 125#/150#;  JIS5K/10K/16K;  DIN 2501 PN6/PN10/PN16/;  BS4504 PN10/PN16



Usage and features:

Nylon board butterfly valve structure without pin, excellent reduction, self-lubricity, operating torque 40% less than normal butterfly valve. Good abrasion resistance, sealing butterfly valve can be significantly prolongs the service life, compared with the average life-span, line butterfly valve can lengthen 3 times.

Nylon have excellent performance, alkali, salt resistance to erosion and weak organic compounds, adapt to a wide range of inertia. Advanced without pin connections, guarantee the media and metal completely isolated, improve the product's reliability, simple maintenance of butterfly valves
