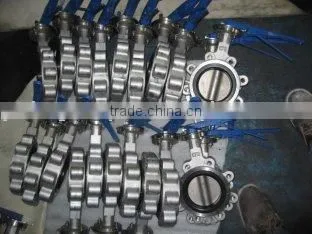

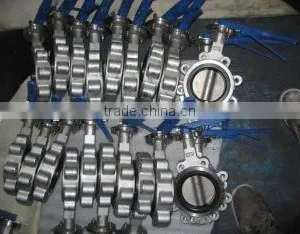

Stainless Steel LUG Type Butterfly Valve
USD $50 - $2,000
/ Piece
100 Pieces(Min.Order)
- 100 Piece / Pieces per Month
- Qingdao Port
- T/T Credit Card
You May Like
Product Details
| Standard or Nonstandard: | Standard | Structure: | Butterfly | Pressure: | Low Pressure |
| Power: | Manual | Material: | Casting | Temperature of Media: | Low Temperature |
| Media: | Water | Port Size: | 4 | Place of Origin: | Shandong, China |
| Model Number: | LBV | Brand Name: | Jiahe |
Product Description
Specifications
Cast Iron Lug Type Butterfly ValveThe body material: CF8/CF8M/CF3
The disc material: SS316/SS304
Stainless Steel LUG Type Butterfly Valve
Butterfly Valve is a kind of simple structure,at the same time it can be used for low pressure pipeline medium switch control.,serve as cut off and throttling in the pipeline.
Material:
- The body material: CF8/CF8M/CF3
- The disc material: SS316/SS304
- The stem material: SS416/SS304/SS316
- The seat material: NBR/EPDM/PTFE/VITON
- Design Standard: API 609/ISO 5752/BS5155
Flange Standard:
ANSI 125#/150#; JIS5K/10K/16K; DIN2501 PN6/PN10/PN16/; BS4504 PN10/PN16
Features:
- Small in size and light in weight,easy installation and maintenance.It can be mounted wherever needed.
- Simple and cmpact construction,
- Minimized operating torque,energy saving.
- Flow block is small.Excellent regulation perfromance.
- Wide selection of materials,applicable for various medium.
