ISO9001:2008&CE approved , hydraulic oil press machine

Specifications

1.High oil output rate
2.Press many oil seeds
3.Easy to operate
4.ISO9001:2008&CE
5.Long durablity

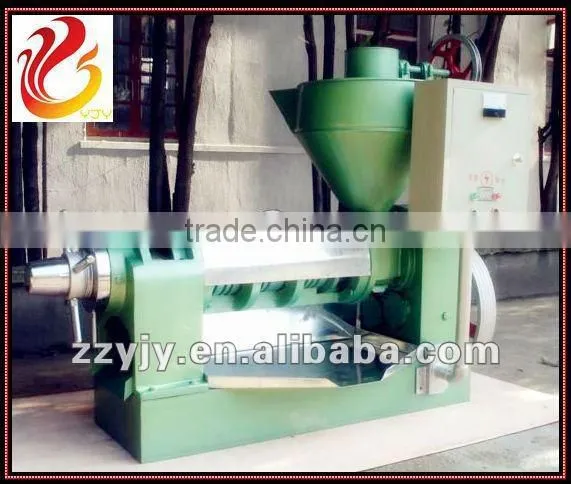

                            Sesame/soybean oil press machine





Characters:



 Simple design , easy to operate , wide suitability , continuous operation, high productivity and high oil product ratio.







Operating principle:



 1.When oil press is on work, material enters the extruding chamber from the hopper and then moves forwards by the rotating pressing screw and is pressed.



2.Under hightemperature condition in the chamber, there is quite strong friction among press screw, chamber and the oil materials.



3.On the other hand, root diameter of the pressing screw carries larger from one end to the other.



4.Hence when rotating, the thread not only pushes particles moving forwards but also turns them outwards as well.



5.Meanwhile, particles adjacent the screw will rotate along with screw’s rotating, causing every particle inside the chamber to possess different speed.



6.Therefore, relative movement among particles creates neat which is necessary during manufacturing because of helping protein change property, damage colloid, increase plasticity, decrease oil’s elasticity, resulting in high oil.







Construction features:



     6YL series spiral oil press is mainly composed of 7 major parts of screw axis, press cage, feed mechanism, cake yielding mechanism. transmission system, electric control part and vacuum filter part. All the parts are assembled on the frame and screwed as a whole.





Main technical parameters:



MODEL	CAPACITY(kg/h)	POWER(kw)	NET WEIGHT(kg)	PACKING(mm)
6YL-68	40	5.5	130	1050*660*760
6YL-80	80-125	5.5	330	1320*440*695
6YL-95	160-200	11	420	1910*610*765
6YL-100	160-200	7.5	400	1860*550*695
6YL-120	200-300	11	700	2060*610*770
6YL-130	375-500	18.5	700	2320*700*780
6YL-160	550-700	18.5	920	2020*700*780
6YL-165	620-830	22-30	1600	2120*800*980
