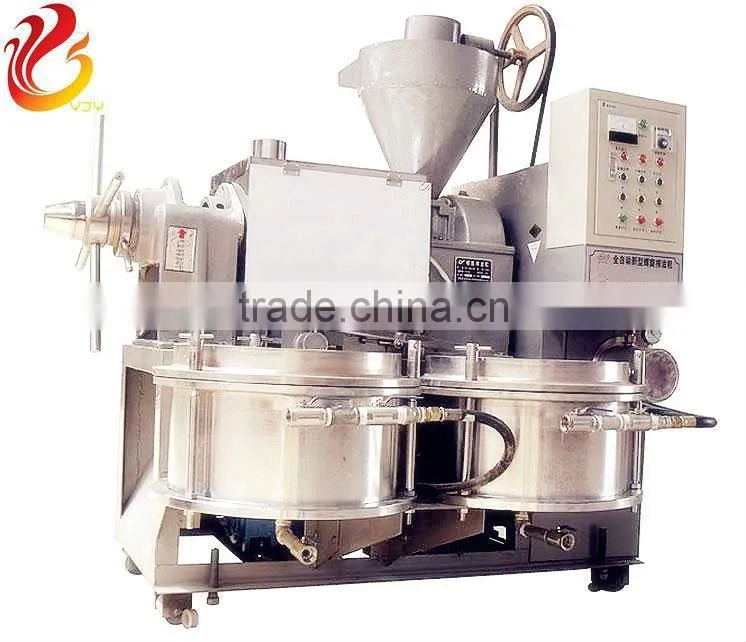

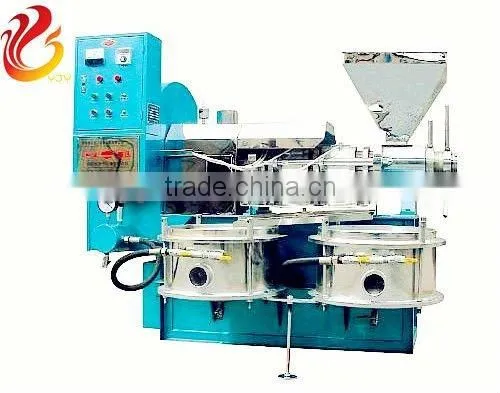

Automatic spiral oil press

Specifications

1.High oil output rate
2.Press many oil seeds
3.Stable function, simple maintenance
4.low invest
5.ISO9001:2008&CE

Advantages of screw oil press

  Simple structure, easy to use, adaptable, high oil rate, energy-saving, and low noise. Material selection is exquisite, reasonable design, beautiful shape, reliable quality, simple operation, less land occupation, labor saving, power saving, high yield, and oil quality is good, and so on. All technical indexes are leading in the same trade of the state-owned oil press. And the model of 6YZ-80 and 6YZ-100 are the new type products reformed by our factory engineers, which are the advanced equipment in the oilseeds processing machinery recently.

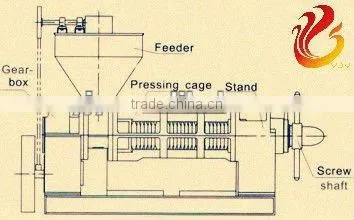

Structure of oil press

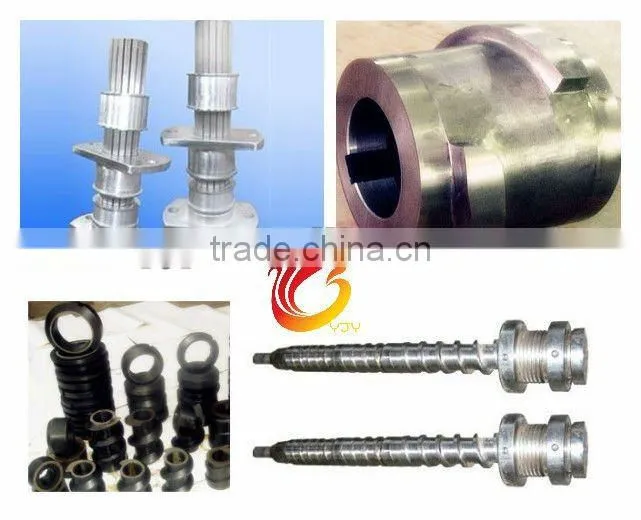

Screw oil press  is composed of feeder, gearbox, pressing cage, screw shaft and edible oil extraction machine stand etc.



Squeezing varieties of oil press

This series of machinery can be widely used to more than 20  kinds of easy and difficult plant oilseeds, such as peanuts, soybeans, rapeseed, cottonseed, sesame, olives, sunflowers, coconut, cocoa, seeds and so on. During pressing, it can be entirely squeezed one time except for some individual varieties.

Working principle of oil press

This kind of screw oil press utilizes the screw shaft that is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring.The process of pressing oil is filtered by vacuum, so the residue of the oil is rather little and ensures the hygiene degree of pure oil.

Oil press technology parameters

Type	dia. of screw	dia. of press drum	rotation speed	Power(Main engine)	Power(Heater)	Capacity	Weight	Size
D-80	80mm	82mm	60r/min	Y112M-6 (5.5KW)	3KW	80-150 kg/h	780kg	1460*1300 *1580
D-100	100mm	102mm	40r/min	Y132M-6 (7.5KW)	3.5KW	150-250 kg/h	1100kg	1800*1350 *1700
ZL-120	120mm	122mm	36r/min	Y160M-6 (11KW)	4KW	260-420 kg/h	1500kg	1860*1450 *1700

Oil press performance parameters

Item	sesame	peanut	rapeseed	Sunflower seed	soybean	cottonseed	walnut	flax	Mountain Tea Seed
oil production rate(%)	45-55	40-50	30-45	32-42	12-18	11-25	42-52	32-38	26-38
Thickness of cake(mm)	1.0-1.5	0.5-2.0	0.8-1.8	1.0-1.5	0.8-1.5	1.0-2.0	0.8-1.5	1.0-1.8	1.0-2.0
Oil remain in dry cake(%)	≤6	≤6	≤6	≤6	≤6	≤6	≤6	≤6	≤6

Note: The above technical parameters are just for your reference.
