the farm using agricultural equipment of small camellia seed huller

Specifications

camellia seed huller
1.voltage per your request
2.suitable for shelling peanut and camellia seed
3.3KW

camellia seed huller



Working principle of Camellia Seed Huller



Workers put the raw material into hopper firstly and them itself run into the rotary drum ,then the shell and kernel separation by use of the frictional force between marked steel plate and intaglio plate when rotating ,

 after that those mixture flows out via the front concave   hole and when passing the air flue ,the shell was blow out ,for the kernel and some unopened seeds automatically dropped into weight screener for further separation,

and pure kernel comes out from screen upper and connected with a plastic bag , for the seeds still with shell they flows into the hopper again under the force of fan for a second hulling



Features of camellia seed huller :



Simple instruction and easy to operate , all index are accordance with international standard

low power consumption ,

small noise ,

save labour ,

90% good hulling performance ,

low impurity , clean separation ,



Main Parts of  camellia seed huller :

1. hopper
2. mchine frame
3. discharge hole
4. blower for peanut husk
5. screener
6. belt pulley
7. two motors

Application :





                                                                          peanut                                                                                                                    camellia seed

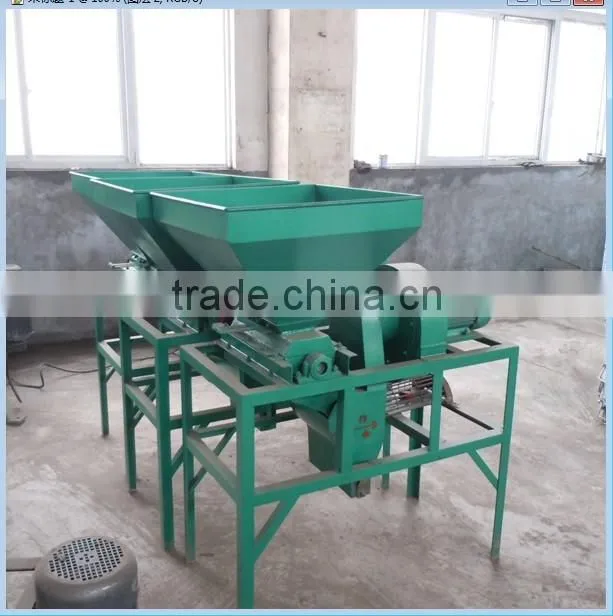

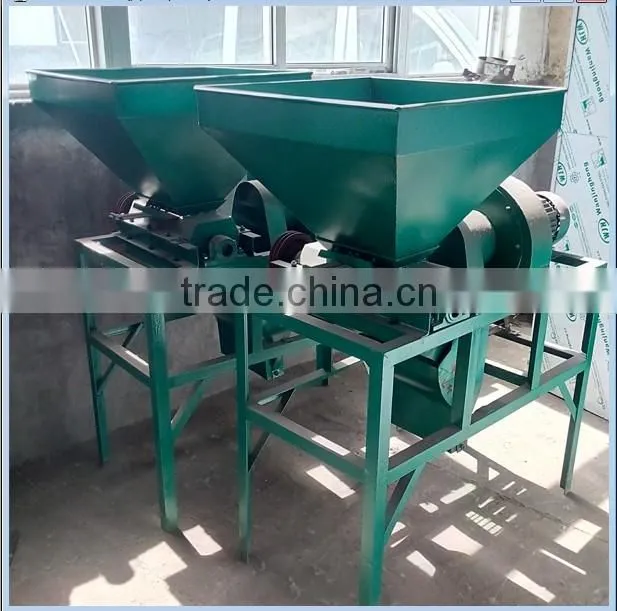

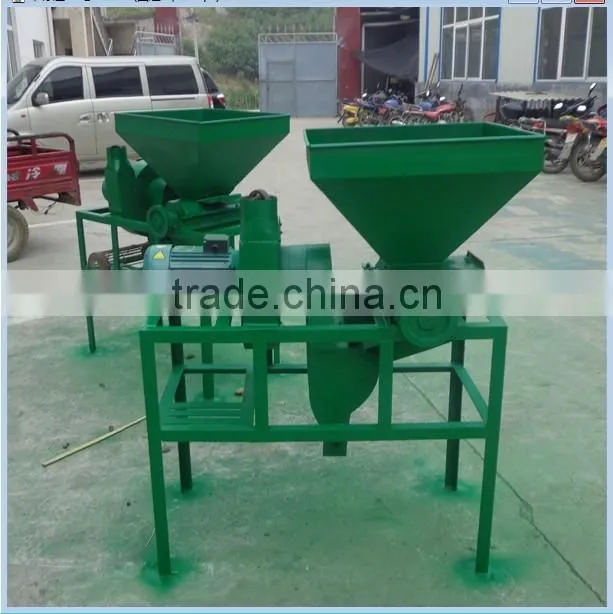

 Photo of  our camellia seed huller
