Brief introduction of charcoal briquette dryer

Charcoal Briquette Dryer is a kind of drying equipment for batch ,continuous production.It is mainly used for drying plate ,strip ,and granular materials with better ventilation. Drying efficiency of this dryer is much higher than nature drying, and it is not influenced by weather. The dryer is applicable to food products or vegetables as well.

1. Health: whole sealing structure keeps the dust away from your goods

2. No fire risk: accurate control of temperature guarantee the safe of your goods

3. Various heat sources: coal, wood, electric can be used for energy

4. Alarm device: each machine is equipped with an alarm in case of accident

5. Excellent drying effect: this machine can dry your goods totally

6. Customized: we can design different types according to your requirement

Working principle of bbq and shisha charcoal briquette dryer

The charcoal briquette is sent to the mesh belt by the belt conveyor , the hot air produced by the stove contact with the coal briquette fully , ant during the delivery process , the moisture is steamed away , the steam is let off from the head of the box dryer. Behind the box dryer, it will be installed a cyclone, and it will prevent the pollution

Introdutcion of the rotary dryer

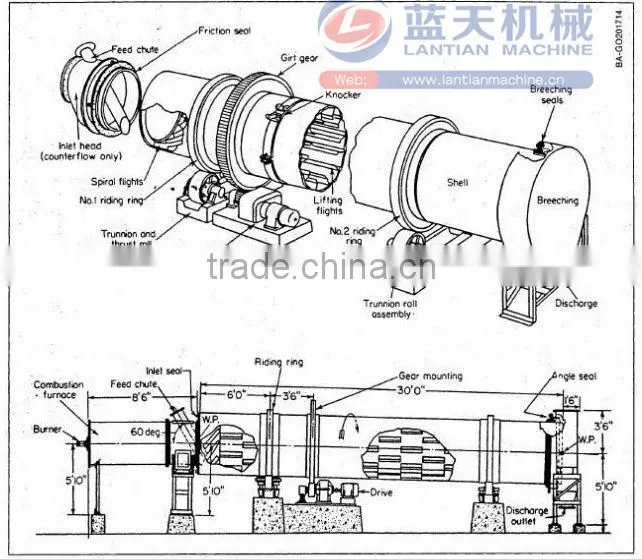

The hot air wood chip rotary dryer is a common and wide using drying device in mining industry. It is suitable for drying metal powder, mining powder, clay, coal and others. It is formed of body roller, lifting blades, driving device, supporting device and sealing ring. And it has the features of high efficiency, high drying strength and easy operation, which is an ideal equipment for drying high humidity materials..

Application of rotary dryer

1.The hot air wood chip rotary dryer made in our factory is mainly used for chemical, mining, metallurgy industry, like mineral, slag, coal, metal powder, clay, kieselguhr, kaolin, sand, lignite, slica sand...

2. The hot air wood chip rotary dryer can used for agriculture and fertilizer industry, like sawdust, straw, stalk, leaves, starch pulp, dregs of decoction, pomace, bagasse, slurry, organic fertilizer, inorganic fertilizer and others.

3. It also can used for drying the special materials, such as all kinds of crystalline, argil, magnetic powder, inorganic mud, lime slurry, aluminum mud, mineral mud and others.

The Features of the rotary dryer

1. High drying strength, high dealing capacity, low consumption and low drying cost.

2. Our rotary dryer for hot sale has the characteristics of high temperature resistance, and it can use high temperature hot air to dry the materials fastly.

3. It adopts self-aligning riding wheel structure, the riding wheel and roller ring cooperate well, and it can greatly reduce the wearing and power consumption.

4. Special designed catch wheel structure, which reduce the horizontal thrust caused by the equipment tilt work.

5. High resistance of overload ability, roller body is stable working and higher reliability.

Maintain of the rotary dryer

1. We should add oil regularly. The lifetime of bearing is based on the good lubrication, which effect the lifetime and running rate of the rotary drum dryer. So we should cleaning oil and close them well. Some parts we should add oil is transmission bearing, rolling bearing, gears, moving bearing and slide plate.

2. The new installed tyre are easily loose, we should check them often.

3. Pay attention on whether every part of machine works normally.

4. Check the wearing degree of easy wear parts, and change the worn and damaged parts.

5. Remove the dirt of chassis plate where load the live device, in case of the live bearing can't move when there is materials not be broken appeared.

6. The temperature of bearing oil goes up, we should stop the machine and check.

7. If there is rushing sound when the rotating gear is running, we should stop the machine and check.
