Popular hookah wood charcoal making machine

Hookah wood charcoal making machine

Brief introduction of the hookah wood charcoal making machine

1) The shisha  machine can press all kinds of chips/tablets ( round, square,  irregular,etc) by replacement the main mould.

2)The finished products’ surface is smooth and its pressure as well as density can be adjusted.

Pictures about the main parts of the hookah charcoal machine

1) The material of part is chromium steel, the feature is high hardness, wear-resistant, corrosion-resistant and not rust, the service time is 3-4 years( 6-8 hours working time per day),

2) The mold use wire cutting process technology, so the size of mold is very precise. if the mold is abrasion, we can provide the mold with low price and high quality,

the mold is easy to repair and install.

Main features of the hookah wood charcoal making machine:

 1)Special design is suitable for light powder materials.

 2)Reasonable structure with easy clearance and maintenance.

 3)Transmission system in main gear box below airtight is completely separated, reducing noise  and wear.

 4)The model of  shisha charcoal machine is changeable.different model meet different requirements.

Two types of hookah charcoal making machine:

One Mechanical press type, the other is Hydraulica press type

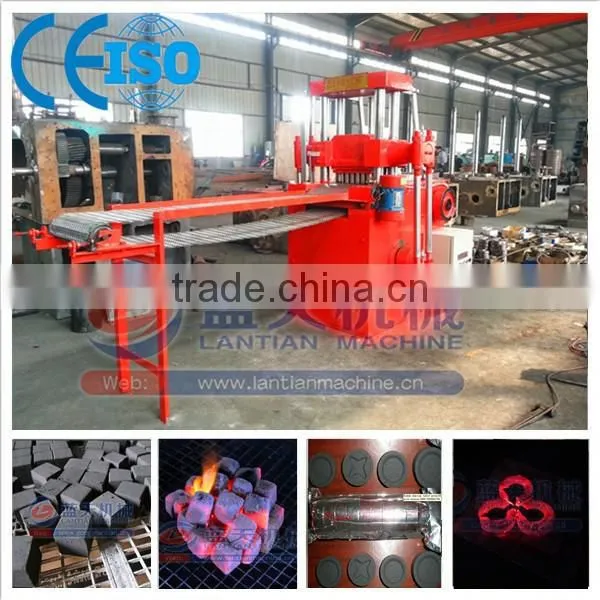

the first type: Mechanical press shisha charcoal machine: (11-16 pieces per time, 20-40 times per minture)

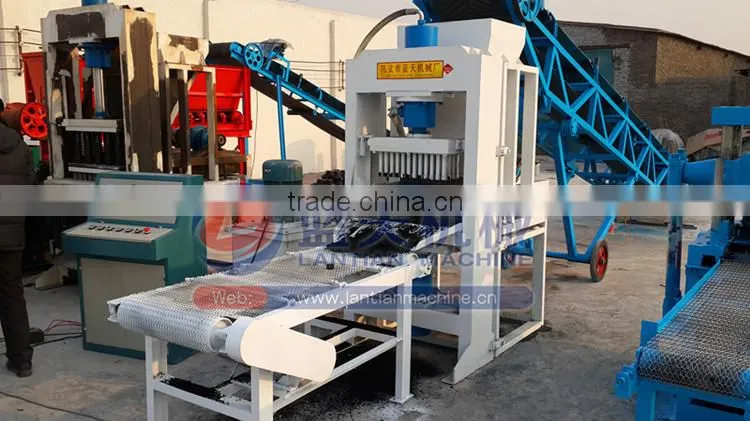

The second type: Hydraulic press type shisha charcoal machine ( 36-48 pieces per time, 8-20 times per minture)

Include four parts:1) electric control cabinet, 2) touch screen, 3) hydraulic cyclinder,4) main engine.

It is a machine can press charcoal powder into small tablets, round shape, cubic shape, strip shape, ringlike shape, etc, also it can press with special words, company name, brand name, telephone number, etc. Good charcoal powder from coconut shell, bamboo, hard wood can pressed into high quality shisha charcoal, no harm to health.

If for cubic shape, 25*25*25 mm is most popular;

If for round tablet shape, 33mm diameter is most popular;

Of course, if you meed other shape, molds can be customized.

The final products:

1.The outlet shisha charcoal machine are good looking, smokeless, non toxic, long buning, one piece can burning more than one hour, easy fire and high heat.

2. We can provide the special binder formula after the order for free.

3. Change the mould can be different shape, we can customize the mould as your requirements.

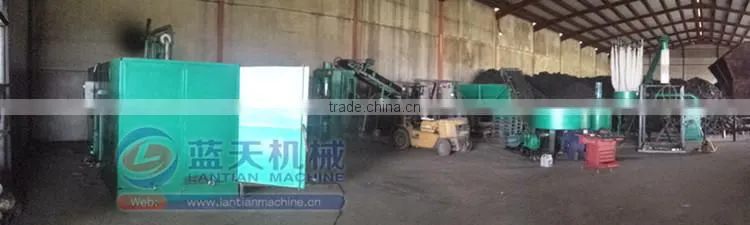

The whole production line related to hookah charcoal machine:

Raw materials----carbonization furnace----charcoal crusher----binder mixer----wheel mill----

shisha charcoal machine----finished shisha charcoal briquettes----dryer

If want to make good shisha, must need to make attention on following:

1. Raw material: hardwood charcoal, coconut shell charcoal, bamboo charcoal are good material for make shisha briquettes.

2. Only good quality shisha charcoal tablet press machine can make good shisha hookah briquettes,our machine are patented products,

we have hydraulic type and mechanical press type for you choose.

3. It need to confirm the binder furmola is natural, smelless, nontoxic.we can provide the special binder foumula after order for free.

4. Also we can depend on your specific situation design the production line to you.

Technical parameters of shisha charcoal machine:

Pre-sale service:
1.According to the customer needs to recommend relative models machine.
2.According to the customer's special requirements to customize equipments.
3.Our engineers will supply the site and equipment drawing.

 After-sale service:
1.According to the purchase contract,our company can send engineers to help installation.
2.The quality guarantee is 1 year,not including the wearing parts.
3.Collecting customer feedback,solve the real problems faced by customers.
4.Our company supply sapre parts the whole year.

1. All the machines will be wrapped up with plastic film first (including the motor).
2. The plastic film bag wrapped machine, according to the size and weight to make wooden or iron box, put machine in and fixed the box after loading. (The box material can be made as your requirements)
3. The machine parts need to be put in a fixed container, should be fixed well, lest collision and wear, or lost.

Our working experience about the shisha charcoal machine production line

Lantian Mechanical Plant, which located in Gongyi, Henan province,is a modern enterprisewhich setsthe scientific research,

 production and sales as a whole.We have a modern management system,the first-class processing art, perfect detection means, high quality science and technology talent team

and after-service system. Our company has been rated as "Quality Trustworthy Unit" "Brand-name

and High-quality products" and "QualityManagement Advanced Unit".In order to meet the different

requirements of customers, we designed and researched many types of charcoal processing

machine including charcoal & coal briquette machine, Shisha/hookah charcoal machine,sawdust

charcoal briquette machine, tablet press machine, rotary dryer vertical dryer, belt mesh dryer

and mixer, crusher, blinder, etc.

Other assistant equipments of the shisha charcoal machine production line:

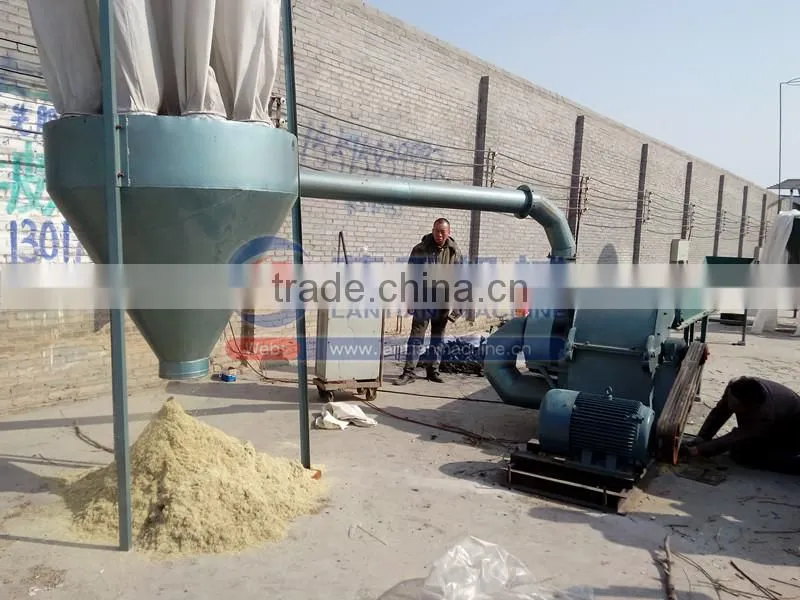

1)crusher

The first step of shisha charcoal machine is to crush raw material into fine hookah powder. The smaller the hookah powder's size is, the better of the shisha.( shisha charcoal machine production line)

2) wheel mixer

The second step of the shisha charcoal machine production line is to mix charcoal powder with natural binder evenly. The reason why we use wheel mixer is that wheel mixer can not only improve shisha powder's density, but also press shisha  powder into smaller size.

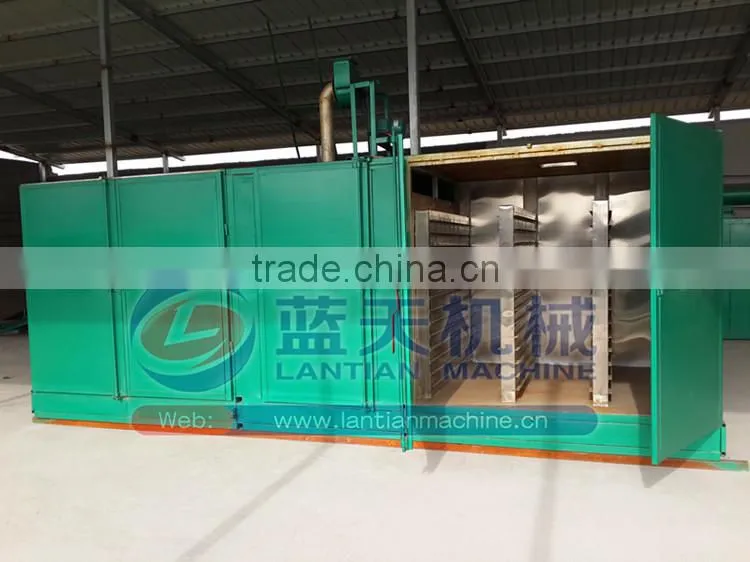

3) Box dryer:

The last step of  the shisha charcoal machine production line is to dry shisha briquettes in box dryer. Due to the liquid binder, shisha charcoal  will have 15-20% water content, so we need to dry the briquettes to 3-5%.

Welcome to our factory to check performance of the shisha charcoal machine or contact with me at any moment.

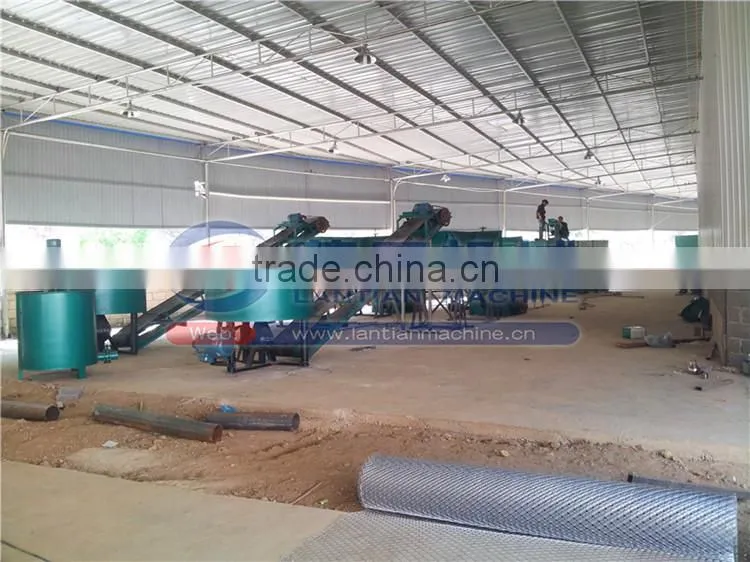

 Customers charcoal briquette production line
