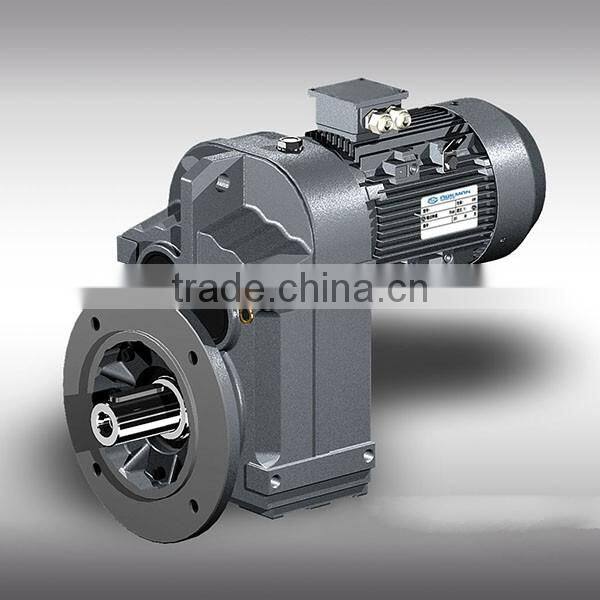

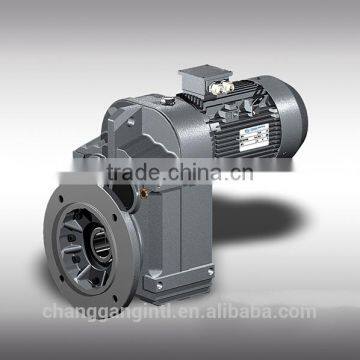

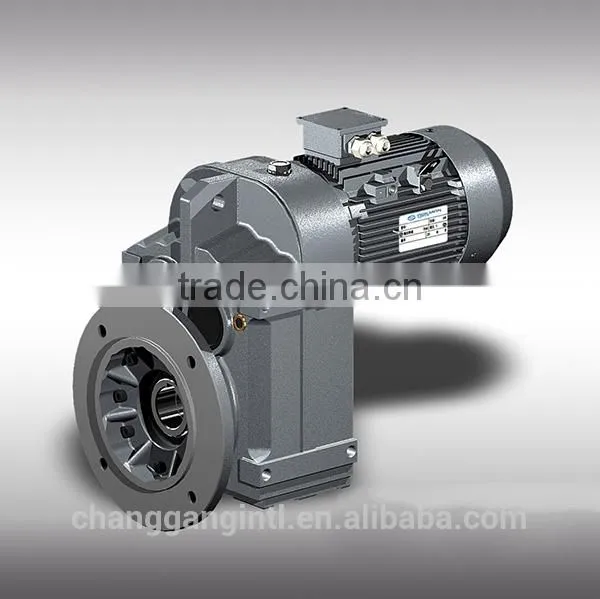

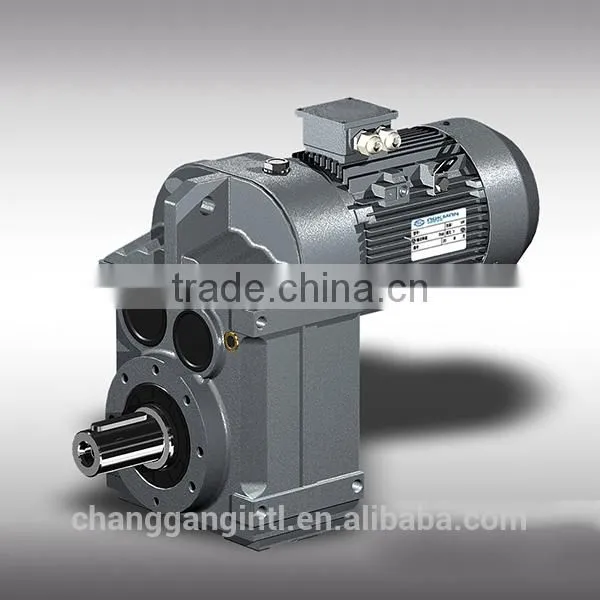

F series solid shaft helical gear reducer parallel shaft transmission box

Name: F series solid shaft helical gear reducer parallel shaft transmission box
Brand: Changgang
Availability: InStock

FOB Price

USD $25 - $25 / Set

20 Sets(Min.Order)

Supply Ability 3000 Set / Sets per Month
Port Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Place of Origin:	Henan, China	Brand Name:	Changgang	Model Number:	CKM050-CKM090
Gearing Arrangement:	Hypoid	Output Torque:	800~100000N.m	Rated Power:	0.06-15KW
Input Speed:	1400rpm	Output Speed:	14-280rpm

Packaging Details

wooden case,paper box

Product Description

F Series Parallel Shaft Gear Reducer

It’s suitable for transmitting rotation of parallel.

F series gearbox have the feature of light weight, small volume, heavy transmission torque, steady startup, low consumption.It could be mounted in various types and the in-put and out-put flexible etc.

Structure:

F(-)	F(F)	The out-put	In-put	F(-)
Foot-mounted	Flange-mounted	Solid out-put or Hollow out-put.	Solid in-out shaft, or In-put flange	Foot mounted solid shaft output

Output mode: hollow shaft output or solid shaft output.

Average efficiency: 2-stage 96%, 3-stage 94%, combination 85%.

Input power rating and maximum torque

Size	38	48	58	68	78	88	98	108	128	158
Structure	F FA FF FAF FAZ
Input power rating(kw)	0.18~3.0	0.18~3.0	0.18~5.5	0.18~5.5	0.37~11	0.75~22	1.1~30	2.2~45	7.5~90	11~200
Ratio	3.81~128.51	5.06~189.39	5.18~199.70	4.21~228.99	4.30~281.71	4.20~271.92	4.68~276.64	6.20~255.25	4.63~172.33	12.07~270.18
Maximum Torque(N.m)	200	400	600	820	1500	3000	4300	7840	12000	18000

Gear unit weight

Size	38	48	58	68	78	88	98	108	128	158
Weight	13	18	34	55	90	150	260	402	700	950

The weights are mean values, only for reference.

Maximum torque means the biggest one of the maximum torque related to the different ratio for the specified size.
