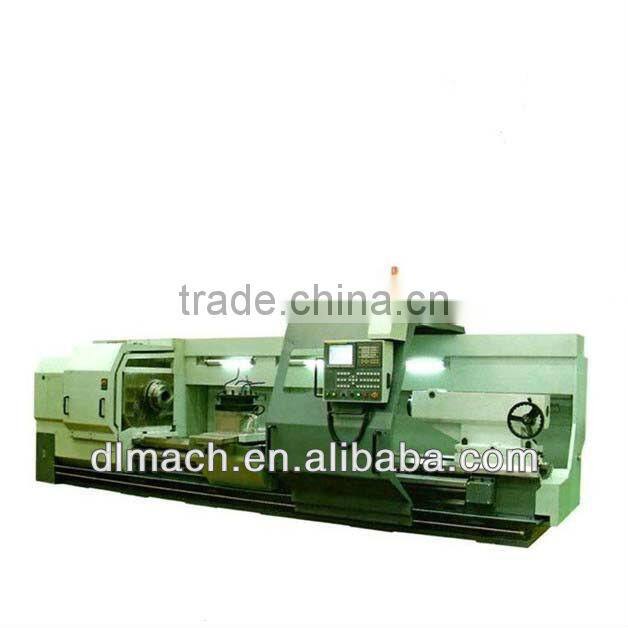

CKE61100M DMTG Heavy-duty Flat-bed CNC Lathe

Capacity

Max swing over bed

1000mm

Max swing over carriage

630mm

Max length of workpiece

1500,2000,3000,4000,5000,6000,8000mm

Max turning length

1400,1900,2900,3900,4900,5900,7900mm

Max turning diameter

1000mm (4-station toolpost,std.)

700mm (8-station turret,pot.)

Chuck size(manual 4-jaw chuck)

1000mm

Spindle center heright

500mm

Bed width

755mm

Max work load

1500kg (with chumk only)

8000kg (between centers,with support)

Max torque of face plate(opt.)

6750Nm

Max cutting force of toolpost

21KN

Spindle

Main motor power

22/26Kw

Spindle bore

130mm

Spindle taper

140mm/1:20 (front)

Spindle nose

A2-15

Spindle speed

5-500r/min (three automatic speed steps/gears)

Spindle front bearing diameter

220mm

Axes and feed

X axis travel

520mm

Z axis travel

1500,2000,3000,4000,5000,6000,8000

Ballscrew diameter by pitch

X-40X5mm

Z-80x16mm

Rapid traverse-X/Z axes

6/8m/min

Feed rate

0.1-1000mm/min

Accuracy

Positioning accuracy of X/Z axes

0.03/0.06mm

Repeatability of X/Z axes

0.012/0.025mm

Differential of foreard to backward

0.013/0.02mm

Job machining accuracy

IT6-IT7

Job roughness after machining

Ra 1.6

Toolpost / turret

Tpye and stations

Electro-mechanical toolpost, 4-station (std.)

Tool shank

40x40mm

Repeatability of positioning

0.005mm

Time of tool change

4s (for adjacent station)

Chain type chip conveyor (opt.)

Motor power

750w

Chip conveying capacity

20kg/min

Coolant system

Coolant tank capacity

780L

Coolant pump power

120W

Coolant flow

50L/min

CNC controller

With full interlock, safety protection and self-diagnosis functions and RS 232 interface.

Fanuc Oi-TC (std.)

X axis servo motor

α12/3000,12Nm

Z axis servo motor

α22/3000,22Nm (A.B.C ≤ 3000mm)

α30/3000,30Nm (A.B.C ≤ 3000mm)

Siemens 802D (opt.)

DALIAN CNC 31T (opt.)

Power supply

Type

380 ±10%V,50±2HZ,AC,3Ph

capacity

48KVA

Dimention & Weight

Overall dimension

6320x2300x2200mm (A.B.C of 1500mm)

Nit weight

13.5,14,15,16,17,18,20 tons
