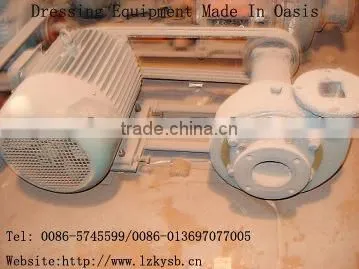

dry sand pump Submersible Dredge Sand Pump
- 200 Set / Sets per Month
- Guangzhou
- T/T
-
Conveyer Belt/belt conveyer/conve/mineral processing\ore upgrading
-
Leaching Agitation Tank/Agitation Tank/ Agitation Vat
-
Ore Slurrry Agitating Vessel /Economical Agitating Vessel
-
Agitation Tank/ Agitation Vat/Agitating Vessel/Washing Trommel with ISO
-
Agitation Tank/no pollution Agitation Vat/Agitating Vessel/Washing Trommel with ISO
-
convenient to use Agitation Tank/no pollution Agitation Vat/Agitating Vessel/Washing Trommel with ISO
Product Details
| Brand Name: | oasis | Model Number: | PH-2.5 | Condition: | New |
| After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
1. Handling tough mining slurry2. High quality slurry pump manufacture3. Energy conservation and environment protection
The sand pump is used for conveying liquid slurry, or other heavy-medium increase agent, slurry concentration of up to 50%.
The device is applicable to metallurgy, mining, coal slurry transportation and construction sectors .The device is not a lack of equipment for conveying silt, ash.
item
type and specification
| delivery head(m) | flow (m3 /h) | Feed size (mm) | With motor | weight (kg) | |
model | power(kw) | |||||
XDSL-1Vertical sand pump
| 9 | 5 | 0~5 | Y90L—4 | 1.5 | 157 |
XDSL-1.5Vertical sand pump
| 12 | 10 | 0~4 | Y100L—4 | 3 | 205 |
PNL-2” Vertical sand pump
| 18 | 22 | 0~4 | Y132M—4 | 7.5 | 480 |
PH-1”bedroom sand pump | 9 | 5 | 0~5 | Y100L—4 | 2.2 | 135 |
PH-1.5bedroom sand pump | 12 | 10 | 0~4 | Y100L—4 | 3 | 185 |
PH-2”bedroom sand pump | 15 | 15 | 0~4 | Y132M—4 | 7.5 | 300 |
PS-2.5”bedroom sand pump | 21 | 70 | 0~5 | Y160M—4 | 13 | 430 |
PS-2.5”High lift bedroom sand pump
| 31 | 75 | 0~5 | Y180M—4 | 22 | 570 |
