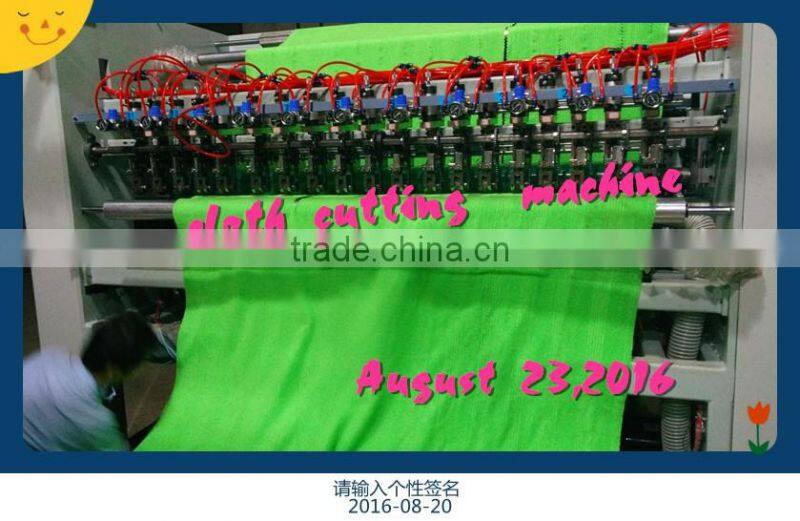

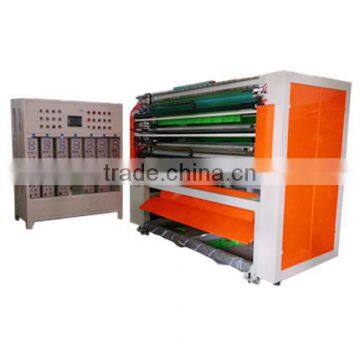

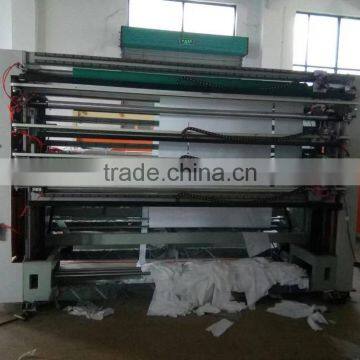

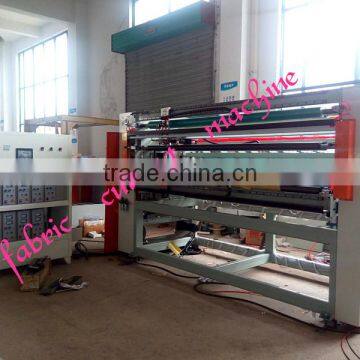

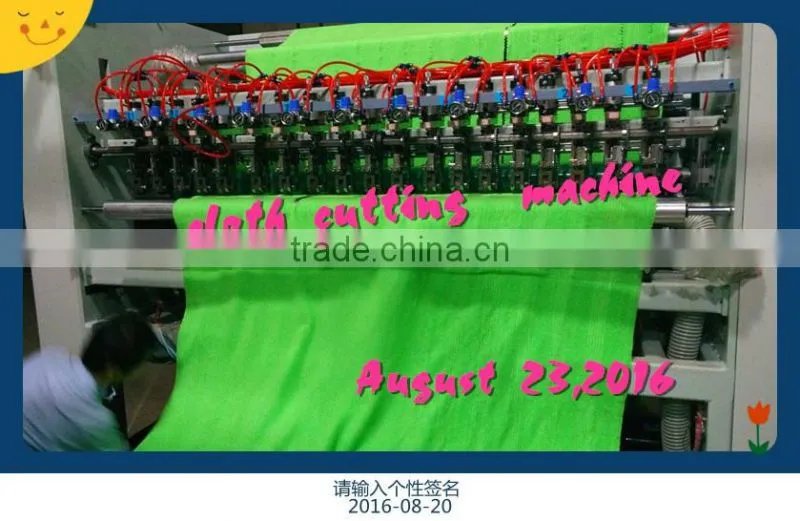

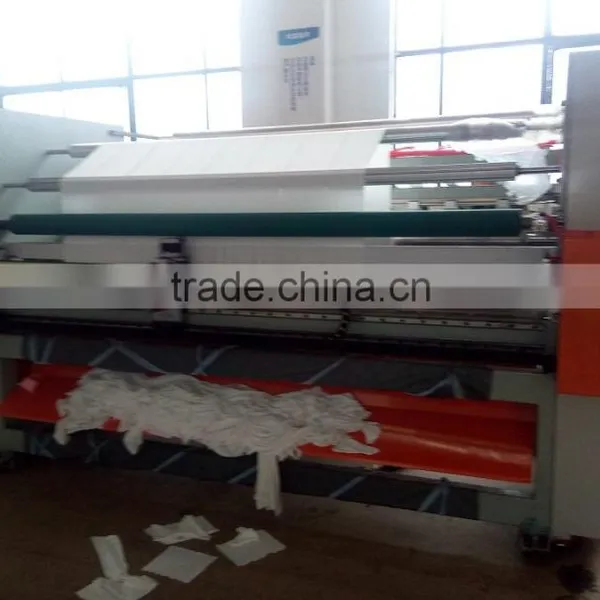

computer towel cutting machine

hi

this  is   shuanchao   company  ,we   produce  all  kinds  of  ultrasonic  machines

Voltage: 220V 50 / 60HZ

Weight: 3200KG

Dimensions: 2800 (L) * 2200 (W) * 1600 (H) mm

Power: 15KW

Efficiency: 5-15M / min

Pressure: 3-7kg

Product specifications: 180-2200MM (can be customized)

Maximum raw material width: 2200mm

Raw material diameter: 100 - 4000mm

Maximum winding diameter: 600mm

Operator: 1 person

The following are the same as the "

Towel towel cloth slitting machine features:

1. Replace the traditional needle and thread process, equipment imported PLC control, the entire processing action to complete the automation, saving labor!

2. Ultrasonic trimming, automatic sealing, no hair, no yellow, the use of dual ultra-ultra-ultrasonic, strong processing, stable performance

3. All imports of core accessories, German imports of automatic correction, automatic tension control discharge materials are imported inflatable shaft, unloading convenient

 This machine is a set of cutting, cross-cutting as one of the automation equipment, the use of ultrasonic cutting products to shape. High technical content, greatly reducing the labor, high efficiency. The machine uses microcomputer operating system, with a touch screen display, PLC program control system servo drive system. Automatic fixed length, automatic counting, automatic alarm, automatic cross-cut embossing, automatic discharge correction system.

Second, the operation process

  Unloading → Deviation → Cloth Sheeting → Ultrasonic Cutting → Traction Roll Angle → Pressure Control → Fixed Length Feeding Roll Angle → Cross Cutting Embossing → Finished Product (Winding)

Third, the operation method

  First, the roll fabric on the release rack, stretch fabric, through the roller angle photoelectric eye to the cutting die

Position, open the feed switch, and then the cylinder switch (cylinder 1 - cylinder 7) closed, so that the mold to keep up

Mold and the distance between the welding head,

1, open the three power switch

2, connected to the trachea to ensure that the trachea pressure gauge at 0.6 kg, the total for the sub-cut

Pressure adjustment, the middle of the pressure

Rod adjustment, under the cross-section pressure gauge

3, the volume of cloth on the cloth material on the shelves, fixed to pull the fabric

4, the fabric through the roll angle through the photoelectric eye to ensure that the photoelectric eye is effective, the cloth from the main frame of the roller angle around to the ultrasonic mold and then pull down the following 20-30 cm, while ensuring that the fabric roll over.

5, first open the cylinder, and then open (cylinder 1 - cylinder 7) switch to the right under the cylinder, the left-liter, and then open the pressure feed switch (roll angle) in the open state (right to open) Fabric to wear through.

6, check whether the fabric formation, discharge correction is working, and then open the cylinder to the right screw to the right.

7, open the ultrasonic switch, turn right to open.

8, open the fan switch, cooling ultrasonic welding head.

Fourth, touch-screen operating system
