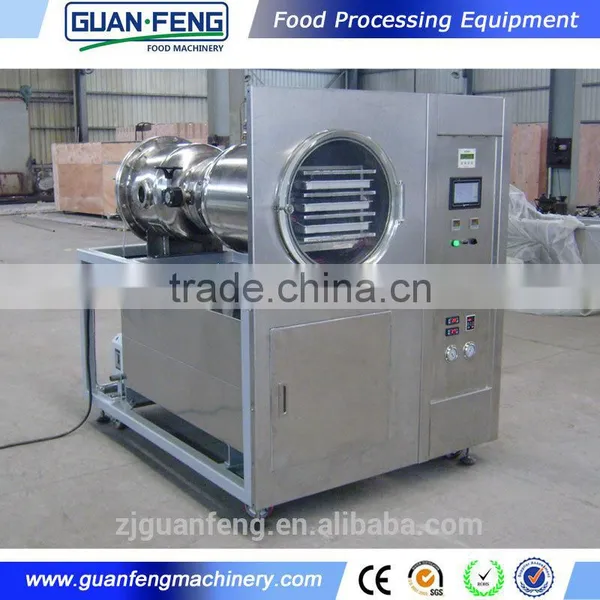

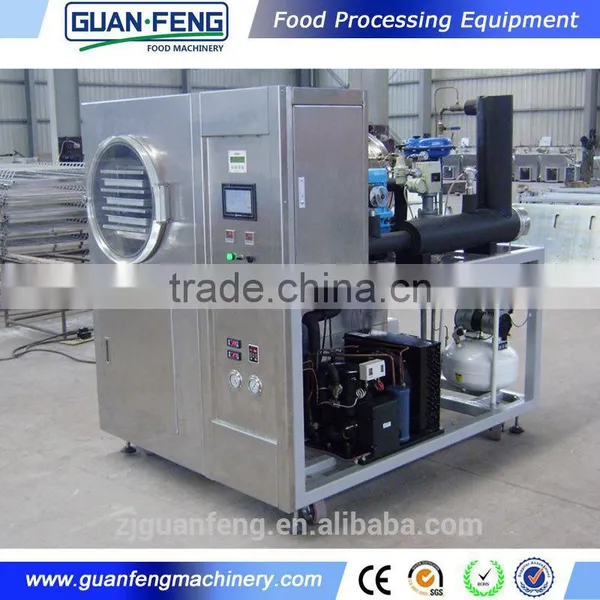

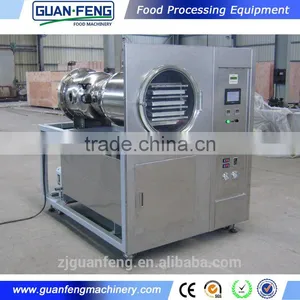

food vacuum dehydrator mini freeze drying machine

food vacuum dehydrator mini freeze drying machine

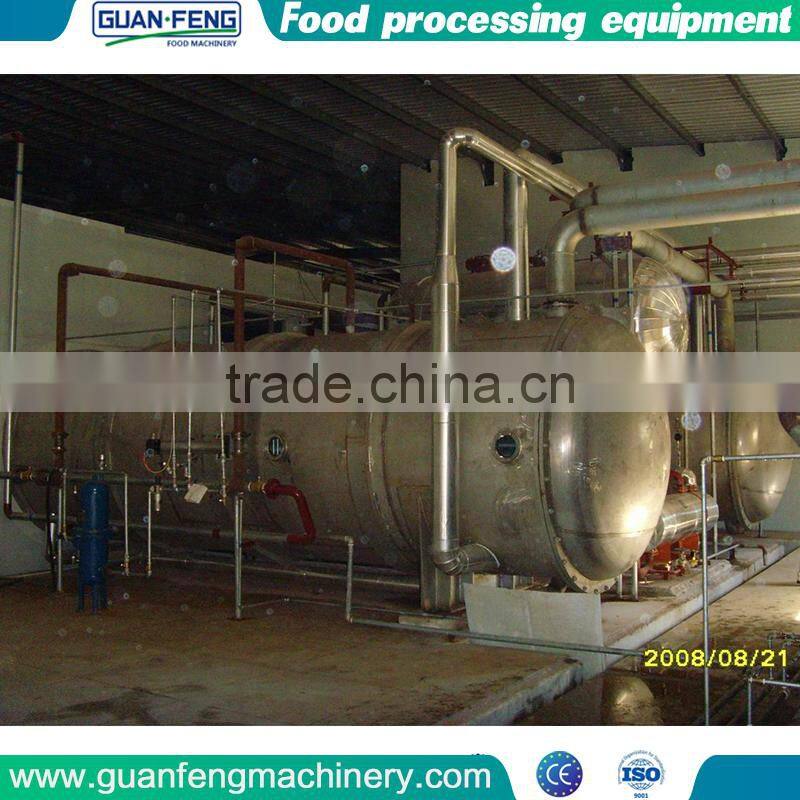

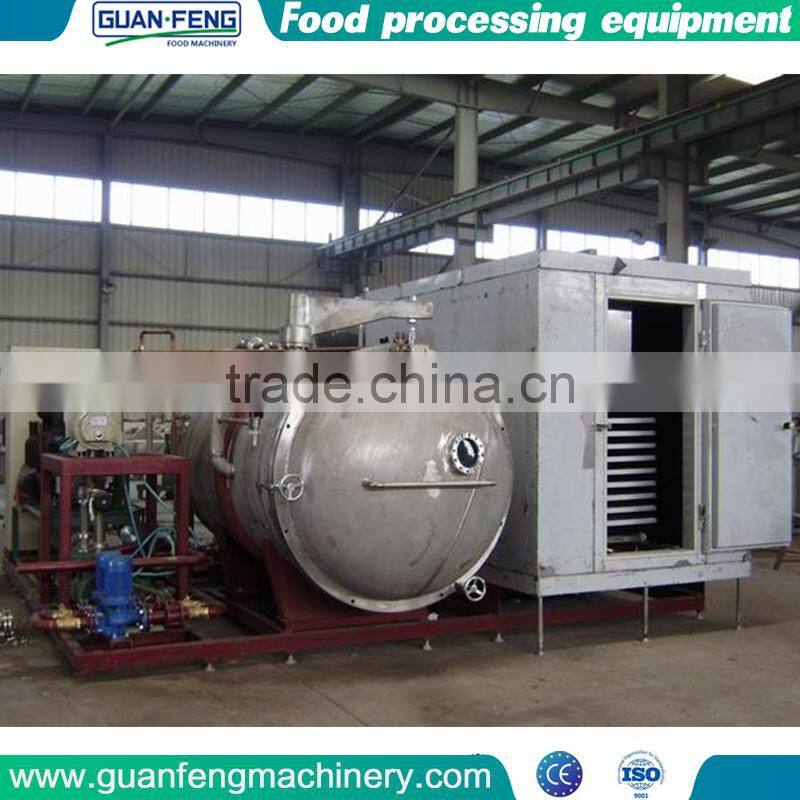

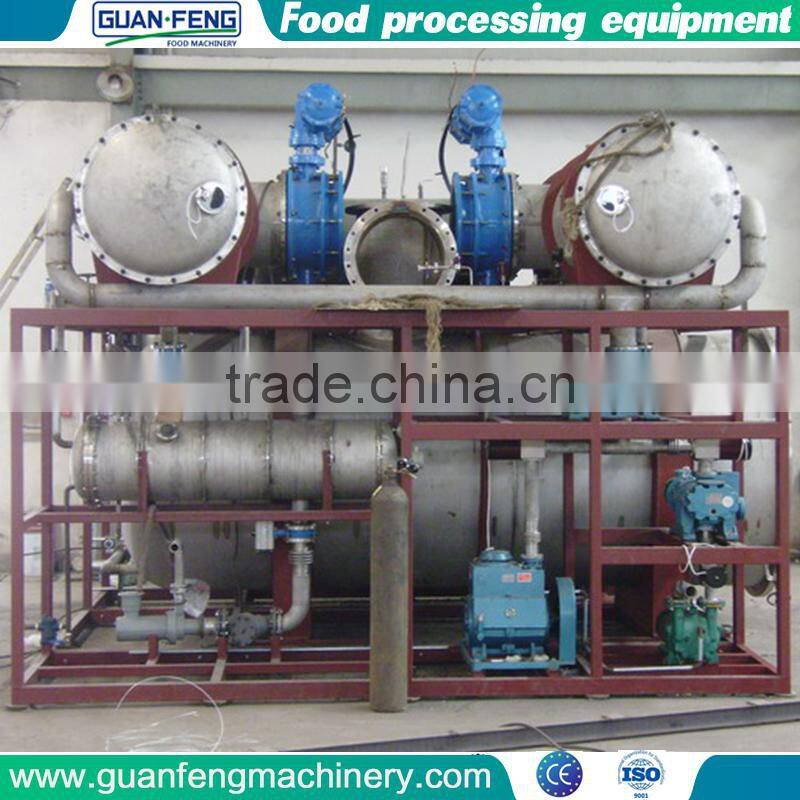

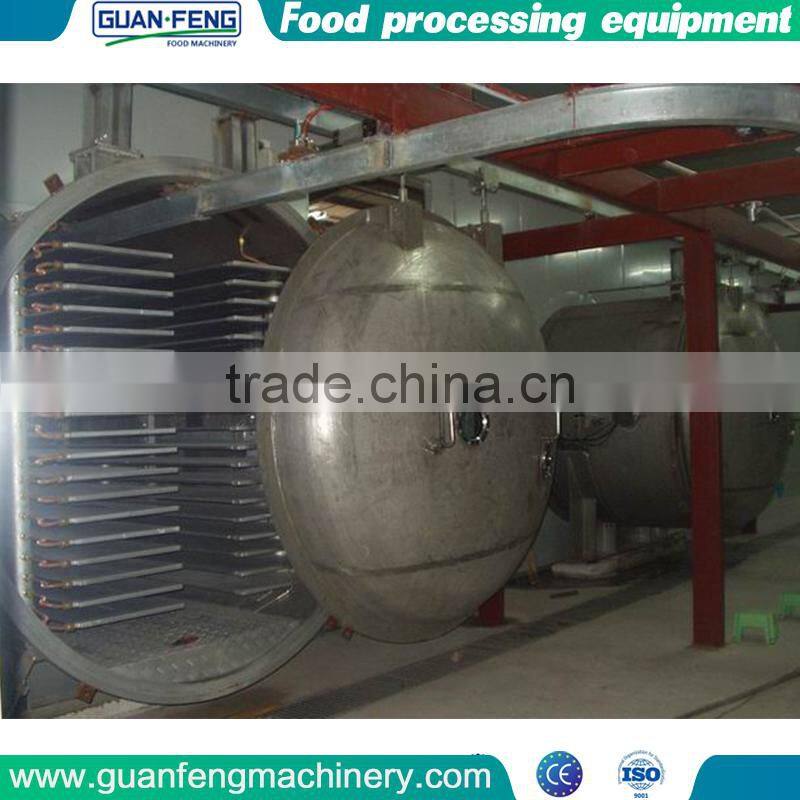

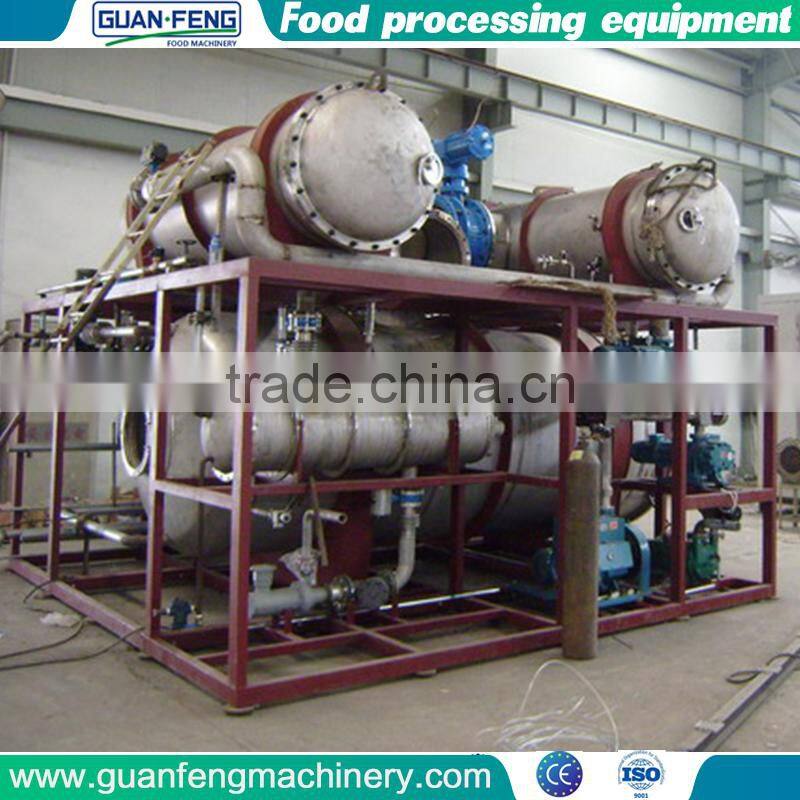

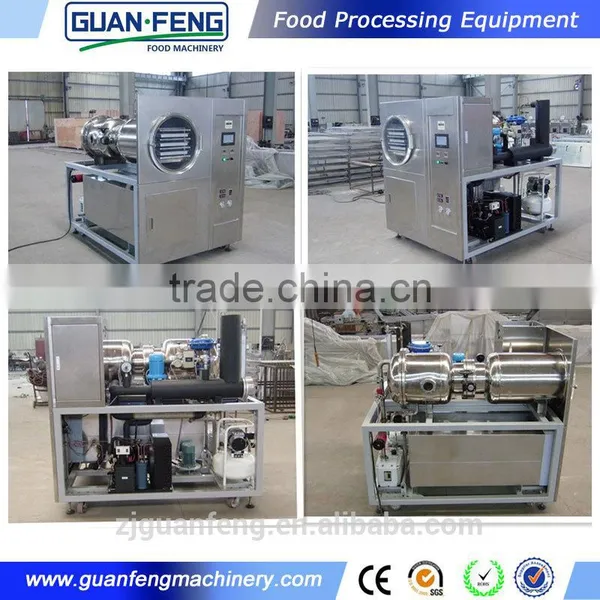

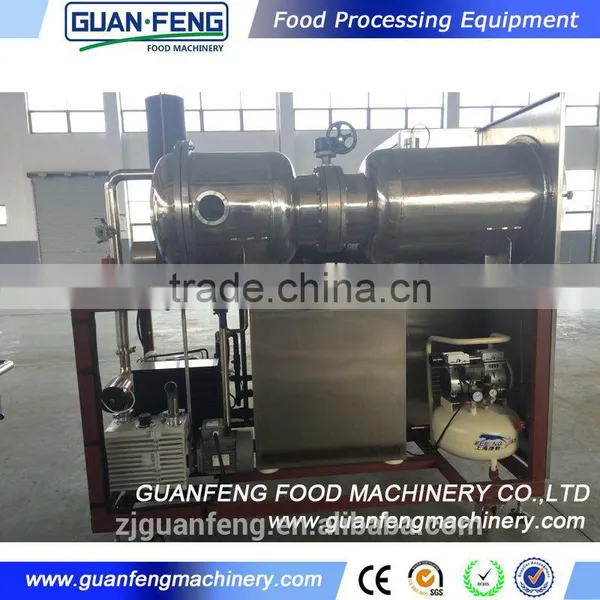

Product Pictures of food vacuum dehydrator

Main applications:

The GFD series vacuum freeze drying equipment is the most advanced dehydration technology

used in the food industry to produce superier quality FD food products.( food freeze drying machine )

The FD food products have been widely used in the poducts such as FD fruits for leisure food,

FD vegetables for high end convenient food, ingredients,high grade instant coffee, milk powder,

convenient soap, high nutrition healthy food, herbs,military and aerospace food products and etc.

( food freeze drying machine )

Working principle of vacuum freeze dryer:

Instead of traditional vaporization dehydration method, the vacuum freeze drying technology is dehydrate products by sublimation directly from ice to vapor. During the Freeze drying process, the materials will be frozen to - 18°c, then move into the vacuum drying hydration, automatic control system will set the vacuum and heating temperature

according to the freeze dryingcirve of each products to maintain thed water vapor will be co proper circumstances for FD processing. The materials stay in frozen status during the drying processtank for de anndensed on the surface of cold trap coils to absort the water out from the materials.( food freeze drying machine )

Product Description

Models

Parameters

GFD-0.5

GFD-5

GFD-10

GFD-25

GFD-50

GFD-100

GFD-150

GFD-200

Drying area (m²)

0.5

5

10

25

50

100

150

200

Average capacity (kg/ batch)

6

60

120

300

600

1200

1800

2400

Size of vacuum tank (mm)

Ø0.5x1.7

Ø0.8x2.7

Ø1.4x2.8

Ø1.8x4.3

Ø0.5x1.7

Ø0.5x1.7

Ø0.5x1.7

Ø0.5x1.7

Number of trays (pcs)

3

12

21

72

144

288

432

576

Tray size (mm)

310x540x

30

780x540x

30

745x635x

30

635x545x

30

540x635x30

Operation vacuum (Pa)

13.3~200

Heating temp. (°C)

Room temp. ~+120°C

Electric heating (KW)

2

10

21

54

Steam consumption (kg/hr)

90

140

270

450

540

Cold load (KW)

1.5

11

22

45

90

180

270

360

Installation power (KW)

6.5

22

55

65

42

Refrigerati

on system

not

included

69

Refrigerati

on system

 not

included

91

Refrigerati

on system

not

included

118

Refrigerati

on system

not

included
