Rotary Tablet Pressing Machine

Specifications

1.Automatic rotation and continuous tablet press
2.Available for irregular shape tablets
3.ZP-5,ZP-7,ZP-9

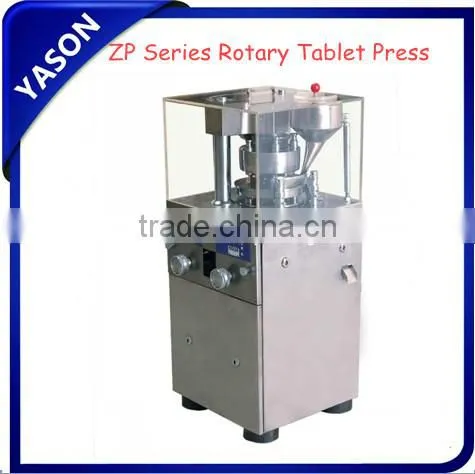

Rotary Tablet Press ZP-5



Ask the manual and operation video from us to help you know

how to use the machine!!!





♦Introduction♦



1) This is a compact type of the automatic rotation and continuous tablet press, mainly used in the technical research in pharmaceutical, chemical, food, electronic and other industries, and it is an important equipment for determining whether the grain materials can be pressed into tablets.





2) It is applicable to pressing of grain materials available to be made into tablets (within the range of pressure of the machine) with the powder content (above 100 mesh) not more than 10%.





3) It is applicable to pressing of regular/irregular shape and scoring tablets.





4) It is not applicable to semi-solid, wet grain, materials of low melting point and easily absorbing dampness and powder without grain.



  ♦Main Technical Parameter♦



Model	ZP-5	ZP-7	ZP-9
No. of turret press dies (pair)	5	7	9
Max operating pressure	40KN	40KN	40KN
Max. tablet pressing diameter	12mm	12mm	12mm
Max. tablet pressing thickness	6mm	6mm	6mm
Max. feeding depth	15mm	15mm	15mm
Max. tablet pressing output	9000pcs/h	12600pcs/h	16200pcs/h
Turret operating diameter	200mm	200mm	200mm
Turret rotation speed, turn/min	0-30	0-30	0-30
Middle press die   diameter	26mm	26mm	26mm
Middle press die height	22mm	22mm	22mm
Upper/lower press lever diameter	22mm	22mm	22mm
Upper/lower press lever length	115mm	115mm	115mm
Visual dimension, cm	48*63.5*110	48*63.5*110	48*63.5*110
Machine weight	220kg	220kg	220kg
Motor power	1500w	1500w	1500w
Voltage	220V	220V	220V





♦Working Principle and Main Structures♦

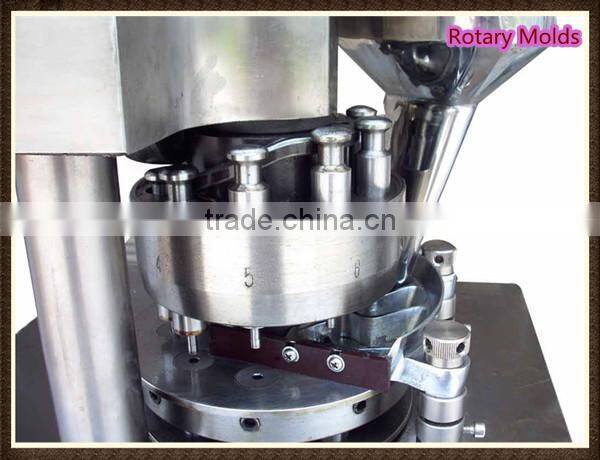

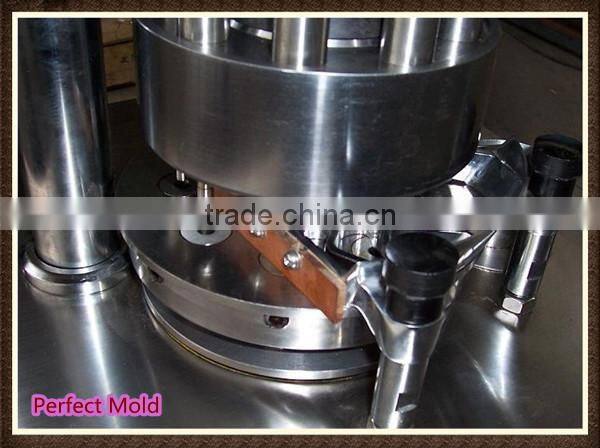

1) Turret structure: The turret is the main operation component of the machine, consisting of the lower/upper bearing assemblies, shaft, turret, etc. XXX pairs of press dies are uniformly distributed on the circumference of the turret. The moment is transmitted through the flat pin between the turret and the shaft. The shaft is supported on the bearing, driven by the worm pair, connected with spline to drive the shaft and rotate the turret for operation.





2) Track mechanism: There are the cylindrical cam and the plane cam consisting of the upper track and the lower track, which are the path for the movement of the upper and the lower press lever. The upper track is composed of the upper press upward track, upper press downward track, upper press upper parallel track, upper press lower parallel track, pressing down track, etc., all securely fixed on the track disc. The lower track is composed of the lower press upward track, lower press downward track and the feeding track, installed on the lower track seat.





3) Feeding adjustment device: It is located inside the machine to adjust the tablet weight. The moon-shaped feeding track which can be seen on the machine plane adjusts the feeding amount with its rise or fall at the action of the screw. The amount decreases when turning the round disc in clockwise direction and increases in counterclockwise direction.





4) Tablet thickness (pressure) adjustment device: The tablet thickness (pressure) is adjusted by means of adjusting the lower pressing wheel upward/downward. The lower pressing wheel is installed inside the machine, buckled on the eccentric shaft and its outside end connected on the handwheel. When the outside handwhell is adjusted, the eccentric shaft drives the pressing wheel to rise or fall, and adjust the tablet thickness (pressure) and further control the tablet thickness and hardness. The upper pressing wheel upward/downward adjustment can also be used as adjustment device, but generally not used.





5) Feeding device: It is composed of the feeding bucket, adjustment bolt, the feeder, etc. The feeder is a moon-shaped grille feeder, installed on the turret. The spacing between the feeder and the turret operating surface and the height of the bucket shall be adjusted based on the grain flow rate.





6) Transmission device: It is composed of the motor, synchronous belt and worm reducer, commissioning handwheel, etc. The motor is installed on the motor seat of the base plate. When it is started, the power is transmitted via a pair of belts to the reducer worm pair, and the motor rotation speed is adjusted through the AC frequency conversion stepless speed adjustment. When opening the two sides or the back door, these components can be directly observed and contacted.

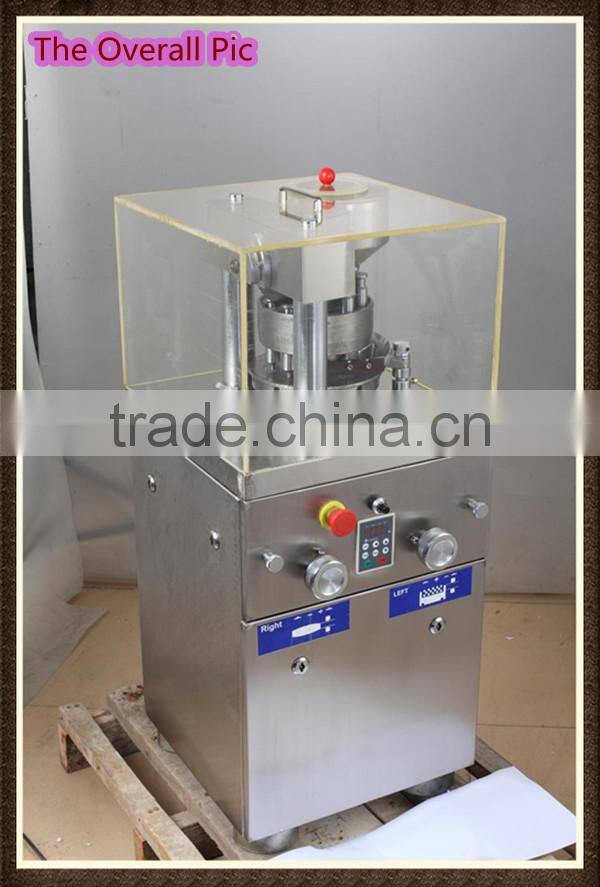

7) Shell: The machine shell is a full-closed type, and conforms to GMP standard. The upper part is enclosed with 4 glass windows, to facilitate cleaning and maintenance.

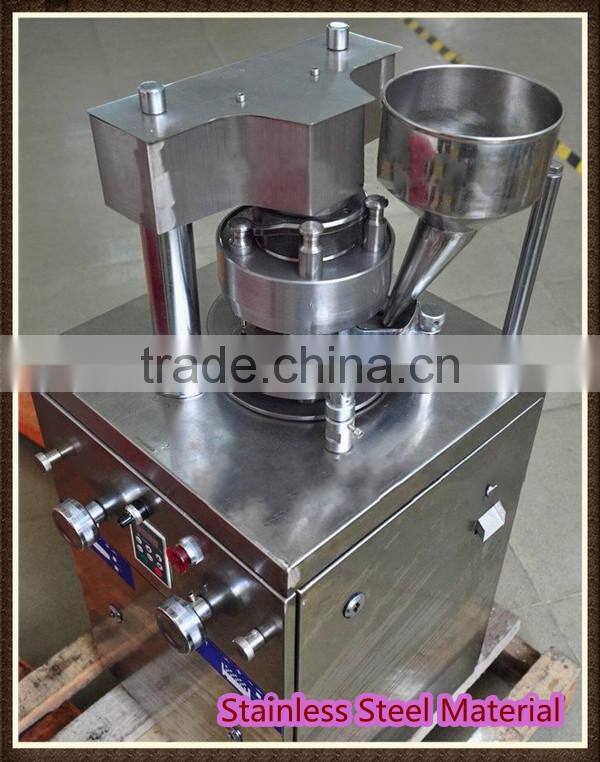

♦Pictures♦







♦Payment Methods♦



These payments of T/T, L/C, Western Union, MoneyGram,Paypal are accepted. If you have any problem with the payment, please leave a message to us.







♦Logistics♦



DHL, EMS and UPS, Fedex are our choices. If you prefer other reliable shipping company. Please leave a message to us.







♦Tracking Number♦



Tracking number will be informed within 2-3 work days after delivery goods. If you have any problem with it, please leave a message to us.







♦Feedback♦



Any comments, suggestions are accepted. We will be very grateful to your positive footprints left in our company. If you have any problem with our products, please leave a message to us.







♦Refund♦



Any damage or shortage of our goods when you receive your items. Please take some photos for a witness. We will deal with it in 24 hours. Frequently, we will send a new part of items for alternative and heavy-damage, Before refund is accepted, please leave a message to us.







♦FAQ♦



1.What I should do to choose the best machine for us?



Answer:1)Please tell me the model of the machine you need.ZP-5,ZP-7 or ZP-9.



               2)Tell me the diameter you need for the mold,max diameter is 12mm.



            3)Tell me the voltage you need for the machine.220V or 110V(Needs customized)

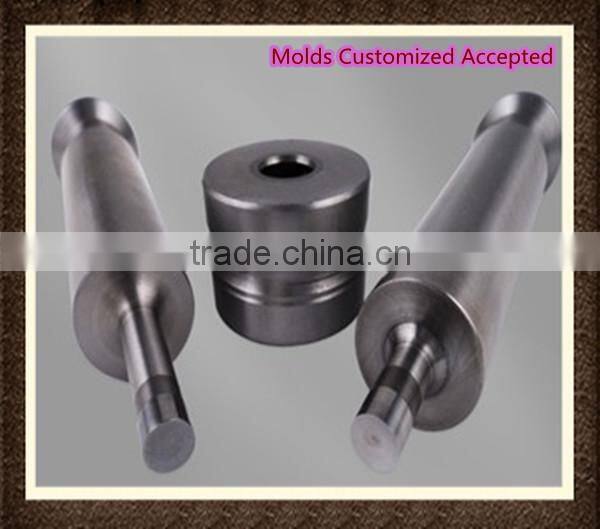

2.Does molds customized accepted?



Answer:Yes.Please send us your mold design,and diameter you need,then we'll offer you the best price according to your requirement.







3.Do you have manual or operation video for us to know more about the machine?



Answer:Yes,we'll send you the manual and operation video after you ask from us.







4.If there's some spare parts broke,how to solve the problem?



Answer:First of all,please take the pic or make a video to show us the problem parts.



After the problem is confirmed from our side,we'll send you the spare parts for free in your next order from us.
