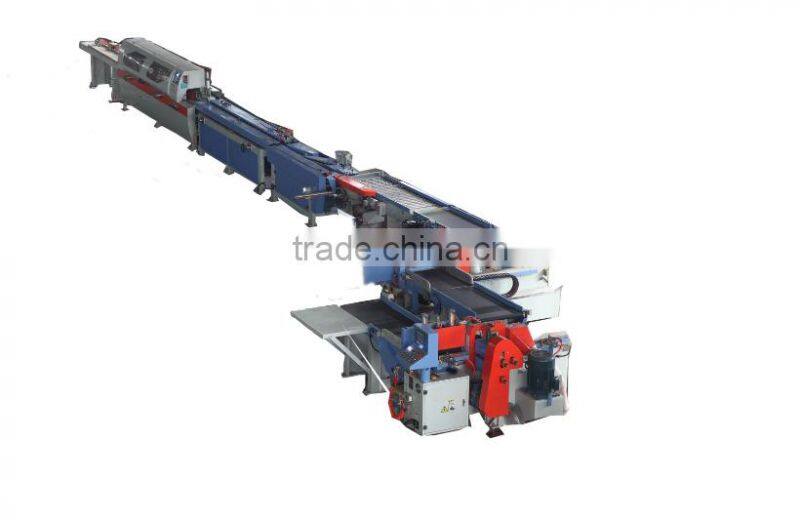

High stability finger joint line MHK1525Lx600II Finger joint and finger assembly line for wood
- 100 Set / Sets per Month
- Qingdao/Shanghai/Guangzhou/as your request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Easy operation finger joint machine MHK1525Lx600II Automatic finer joint line for furniture
-
China new woodworking machine MHB1560*600 comb finger jointing machine production line for wood
-
Easy operation finger joint machine MHB1560*600 semi-Automaticfinger joint line in woodworking machinery
-
Customize woodworking machine MHB1560*600 semi-Automatic finger joint line for furniture making
-
High stability woodworking machine MHB1560*600 Finger joint panel production line for furniture
-
High quality woodworking machine MHB1560*600 semi-Automatic finger joint line for timber
Product Details
Condition | New | Place of Origin | Shandong, China | |
Brand Name | STEELER | Model Number | MHK1525Lx600II Automatic finer joint line | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High stability finger joint line MHK1525Lx600II Finger joint and finger assembly line for wood
Technical parameter:
Model | MXK3515-Ⅱ | MXK3515T-Ⅱ |
Max working width | 600mm | 600mm |
Min working thickness | 150mm | 150mm |
Cutter speed | 6000r/min | 6000r/min |
Draw saw speed | 5600r/min | 5600r/min |
Triming saw speed | 5000r/min | 5000r/min |
Tenoner cutter dia. | 160mm | 160mm |
Tenoner cut-off saw dia. | 70mm | 70mm |
Working table size | 660×850mm | 660×850mm |
Cutter motor power | 11kw | 11kw |
Saw motor power | 5.5kw | 5.5kw |
Feeder motor power | 0.375kw | 0.375kw |
Servo motor power | 1kw | 1kw |
Working air pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |
Net weight | 2000kg | 2200kg |
Overall diamensions | 2380×1700×1400mm | 2580×1700×1400mm |
Detail:
1.Packing details: Stretch film with wooden case or as your request.
2.Shipping:We have rich experience in exporting machines to the world and can supply all kinds of different shipping terms.
3.Timely delivery and transportation
1.Good after-sale Services is our Superiority
1) The machine guarantee is 12 months.
2) 24 hours technical support by email or calling.
3) Friendly English version manual and operation video CD disc.
4) Oversea engineer after-sale service is available.
2.Main market
Our products has been exported to all over the word, including North America, EU countries, Austrilia, Southeast Asia, Africa and Latin America.
3.Sample Service
If you want to test the performance of machine ,we can sent sample to you with cost offer.
4.Customized Service
Our factory has been specialized in producing woodworking machines for over 33 years .We have very high research and development capabilities to meet the requirements of custom.
5.We have years of manufacturing woodworking machine, OEM and ODM service are available.
Qingdao Steeler woodworking machinery co.,ltd is the professional production of various kinds of sanding
machine,polishing machine and other mechanical equipment manufacturers.
The company produced sanding machine which is a combination of Germany,Italy,Taiwan's good
mechanical properties,structure and the advanced polishing machine not only draw lessons from the foreign advanced technology,and highlights the Steeler people development innovation,enterprising spirit,
continuous research and development to adapt to the market,make our polishing machine series equipment
industry's leading edge products.
1) Q: What's the MOQ?
A: MOQ is one set.
2) Q: Provide custom machine Yes or No?
A: Yes. We can provide custom machine for clients.
3) Q: What's the payment terms?
A: T/T 30% in advance and balance before shipment or by negotiation.
4) Q: Are you factory or trade company?
A: We are factory and trade company.
5) Q: How long is the warranty period?
A: One year warranty period except the quick-wear parts.
6) Q: Do you have professional engineers?
A: Yes. We have professional engineers and designers. We can provide OEM products.
