High Efficiency Waste Tire Pyrolysis Oil Recycling Machine with Special Design

Name: High Efficiency Waste Tire Pyrolysis Oil Recycling Machine with Special Design
Brand: JINZHEN
Availability: InStock

FOB Price

USD $9,000 - $49,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port QINGDAO port China
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition:	New	Type:	Tire Machine	Tire Machine Type:	Tire Recycling Machine
Place of Origin:	Henan, China	Brand Name:	JINZHEN	Model Number:	WJ-9
Voltage:	220V/380V	Power(W):	20KW	Dimension(LWH):	2600mm*6600mm
Weight:	30 T	Certification:	CE ISO SGS	Warranty:	1 Year
After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

2*40HQ container for 5ton equipment. 1*40 HQ container and one 40FR for 10tons&12tons equipment
Recycling Machine with Special Design

Product Description

JINZHEN Company

Xinxiang City Jinzhen Machinery Manufacturing Co., Ltd. is a local enterprise with more than 20 years of development, the company has product development, manufacturing, sales overall strength of the Trinity, the main product coverage around the world, the company always adhere to the "high-tech, high starting point, high-quality, high-speed "as the general principle of plant science and technology, enterprise-wide by ISO9001: 2008, CE, BV and other quality management system certification. The current production equipment are tires, rubber, plastics oil refining equipment, hair oil refining purification equipment, crushing equipment, tire cutting environmental protection and new energy equipment.

Product Introduction

Work process of pyrolysis machine

Feed the reactor with raw materials through the feeding door by labor or machine and then close it tightly. Heat the reactor with coal, wood or other fuels. Some harmful smoke will come out along with the heating, but it can be removed by the desulfurization deduster and the water film cyclone. The smoke form the exhaust disposal system is no different from the air. The draft fan helps to inhale the smoke from the pipe and then release it into the sky more quickly.

The oil gas will travel from the reactor to the double catalyst tank, in which the heavy oil and impurities will depart from the gas due to the gravity. Then the gas will continue its journey into the oi-water separator for a second separation. After that , the cleaned oil gas will run into the cooling condensing pipes in the cooling pool, where the gas will convert to liquid, the oil, and then flow into the oil tank for storage.

There will be some waste gas in the oil tank. It will follow the pipe over the oil tank into the cooling pool for a second condensing so that the remained oil gas could turn to oil to improve the oil yield rate. As for the waste gas, that cannot transform to liquid will go to the water seal and then to the furnace for burning.

Product Parameters

Type	JZ-05	JZ-08	JZ-10	JZ-12
Raw material	waste tire/rubber/plastic	waste tire/rubber/plastic	waste tire/rubber/plastic	waste tire/rubber/plastic
Capacity/day	5t	8t	10t	12t
Working	batch-type	batch-type	batch-type	batch-type
Oil yield	45%~50%	45%~50%	45%~50%	45%~50%
Noise	≤85dB	≤85dB	≤85dB	≤85dB
Type of	water-cooling	water-cooling	water-cooling	water-cooling
Catacity	not needed	not needed	not needed	not needed
Carbon discharge	slagging automatically	slagging automatically	slagging automatically	slagging automatically

Product Details Show

Why Choose Us

About us

Our company have been specializing in waste tire/rubber/plastic recycling plant and oil distillation plant for more than 20 years. We have the best products and after-sale servive.

Begin with customer's demand,and end with customer's satisfaction!

Equipment & technology

At present, our company has product research,manufacturing,market trinity comprehensive strengh.The main product cover all over the world.The company has always been adhering to the "high-tech,high starting point,high quality,high speed"as the general policy.The enterprise overall through ISO9001:20008,CE,BV,etc.

Service

1.we will provide all the machines for the complete production according to customer’s requirements.
2.We will provide complete service for factory layout and other information to help customer to build the factory.
3.We will provide good service for machine installation and training,until the customers can run the machines and make stably production.
4.Expect one year quality guarantee,we will provide after-sell service for all the life.
5.For long-term cooperation,we always provide good quality,good price and good service to customer.

Product Processing

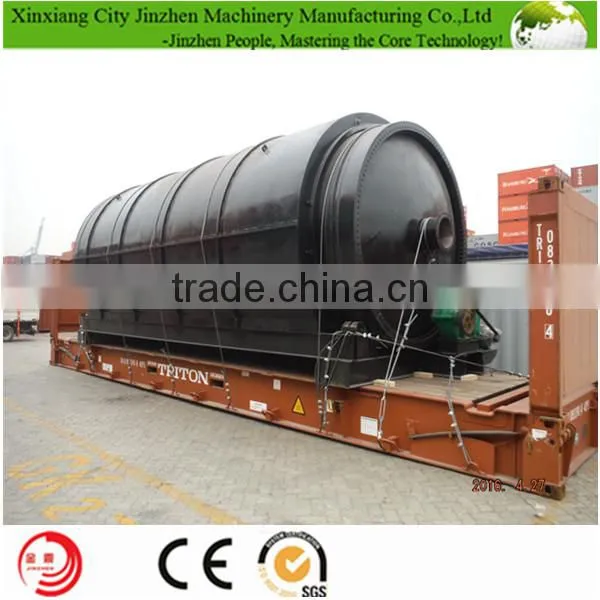

Product Packing

Main Products

1.Made by Q345R boiler plate.Also can choose SS310,310S+Q345R

2.Auto-welding both inside and outside

3.With rock wool insulation board

1.The oil gas is cooled separately by small pipes inside condenser

2.Light oil is collected here

Dispose of flue gas,particles and sulfur dioxide caused by using coal,wood,oil or natural gas.

1.Separate oil and water

2.Collect heavy oil

3.Water sealing design keep safety

Connection part:

Connecting tightly to keep safety

1.Recycle residual gas to furnace as fuel

2.Water sealing design prevent tempering

Warmly welcome your arrival!!!

Contact：Eileen (Sales director)

Skype: hailey.jinzhen

Whatsapp: +8618336071368

Company Profile

Xinxiang City Jinzhen Machinery Manufacturing Co., Ltd.

Xinxiang City Jinzhen Machinery Manufacturing Co.,ltd Is a joint-stock industrial enterprises, mainly engaged in "source" brand electric hoist, single, double beam cranes, bridge, gantry and so on five big series 80 varieties of crane manufacturing, sales.Our company is a member of China crane industry association and China's heavy industry association governing units.With electric hoist, single, double beam crane production licenses and manufacturing, installation, maintenance and safety approval certificate and 320 t bridge, gantry crane, and 280 t ladle crane manufacturing safety approval certificate.
The company covers an area of 680000 square meters, staff 2300 people, with annual sales of 2.3 billion yuan, has more than 380 sales service agencies radiation at home and abroad, built his own new technology, new product development center.Have all kinds of processing equipment 1300 (set), can independently accomplish the car, milling, planing, grinding, pulling, boring, rolling, drilling, punching, cutting, bending, plate bending, welding, testing and heat treatment, etc. All process.
My company technical force is abundant, has middle and senior engineering and technical personnel more than 180 people, for the whole product development design work, and play an important role in the process of manufacturing test.
Company already passed GB/T19001-2008 / ISO9001:2008 quality system certification, GB/T24001-2004 / ISO14001:2004 environmental management system certification, GB/T28001-2001 occupational health and safety management system certification, with perfect quality assurance system, strict management system, strong production capacity and advanced detection means, in ensuring the high quality of the products, highly productive at the same time also has the strong market competition ability.The product key protection products in henan province.
