Hot Sale Industrial Small Volume Lyophilizer Freeze Drying Machine
- 500 Set / Sets per Month
- Shanghai Qingdao Tianjin Dalian Ningbo Lianyungang etc.
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Type: | Freeze Drying Equipment | Place of Origin: | Henan, China |
Brand Name: | ZZKD | Model Number: | 12ND | Voltage: | 110V/60Hz or 220V/50Hz |
Power(W): | 950W | Dimension(L*W*H): | 600*460(730+450)(W*D*H, mm ) | Weight: | G. W.140Kg |
Certification: | CE ISO | Warranty: | One Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

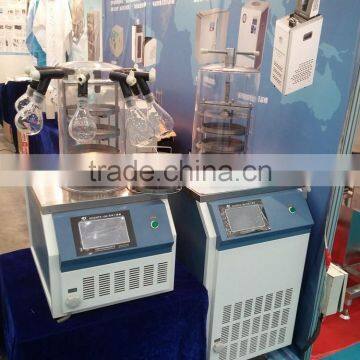

Hot Sale Industrial Small Volume Lyophilizer Freeze Drying Machine
Characteristics
1. Accord with international standards of Green environmental friendly;
7" True~color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve;
2. U disk Can storage lyophilized data;
3. Upload software can print curve;
4. Embedded circuit design, 128 m flash, can save dozen times lyophilized data;
5. Large opening trap, no coil inside, with samples pre-freeze function;
6. Imported refrigeration compressor, low noise;
7. Stainless steel sample holder, common sample plate spacing adjustable;
8. Small size and easy to operate.
Technical data
12ND | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
No-load Temperature (℃) | <-56℃ | |||
Freeze Area | 0.12 m2 | 0.076 m2 | 0.12 m2 | 0.076 m2 |
Plate Load Capacity (L) | 1.5 | 1 | 1.5 | 1 |
Ability to Capture Water (Kg) | 4 | |||
Vacuum Degree (Pa) | <10 | |||
Machine Dimension (W*D*H) mm | 600*460(730+450) | |||
Sample Tray Size (mm) | 4×Φ200 | Ø 3×180 | 4×Φ200 | Ø 3×180 |
Power (W) | 950 | |||
Power Supply | 110V/60Hz or 220V/50Hz | |||
Interlayer spacing (mm) | 70 | |||
Cold trap size (mm) | Ø215*160 | Ø215*216 | ||
The number of schering bottles
| Ø22: 260 | Ø22: 165 | Ø22: 260 | Ø22: 165 |
Ø16: 480 | Ø16: 285 | Ø16: 480 | Ø16: 285 | |
Ø12: 920 | Ø12: 560 | Ø12: 920 | Ø12: 560 | |
N.W./ G.W | 120KG/135KG | 125KG/140KG | 135KG/150KG | 140KG/155KG |
Application
The drying machine is widely used, can dry all kinds of things
Four kinds of 12ND
Packaging
-Plywood or carton packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Service promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology service
1. We have a mobile repair service team in our company, to carry out maintenance , consulting services in china for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company.
Company tenet: keeping reputation, valuing contracts, supplying lower prices and better quality equipments to serve the cause of china's scientific research.
Our company always adheres to the "quality casting brand, professional achieves service"
business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer, water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack etc.
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
5. Can you accept OEM terms?
Sure.
