Complete Production Line For Round Or Square Tin Cans

FOB Price

USD $10,000 - $20,000 / Set

1 Set(Min.Order)

Supply Ability 10 Set / Sets per Month
Port shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	Yongxin	Model Number:	GT1B5	Condition:	New
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

Specifications

Original manufaturer
14 year experience
supply complete tin can making line
products to Dubai,Spain,Greece
Indonesia,Vietnam

Name: E Effictive and handmade machine for making tin cans

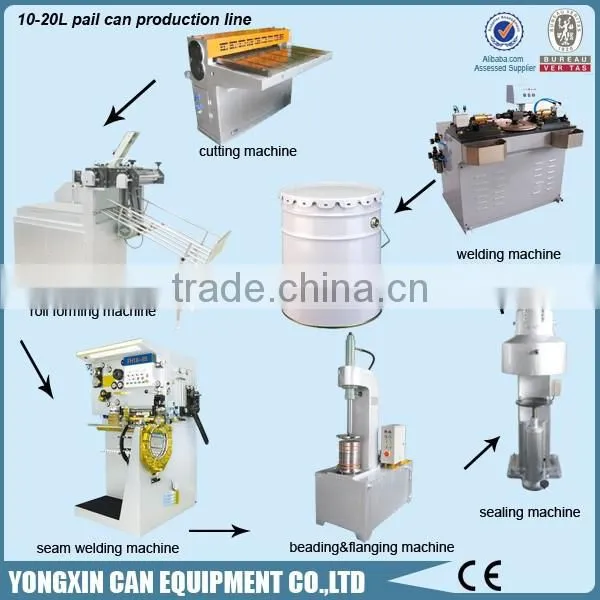

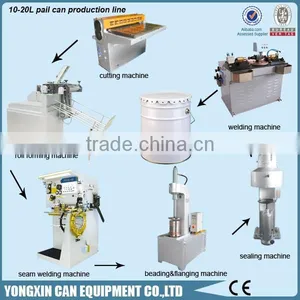

Production process of Effictive and handmade machine for making tin cans

Details of each machine

1.BT1B5 Gang slitter

Model	GT1B5
Max sheet width	1050mm
Min sheet width	44mm
Power	1.1kw
Weight	1400kg
Dimension	150016001105mm

2.Rolling forming machine

Capacity	40 cans/min
Can Height	Max.420mm
Power	0.25kw
Weight	50kg
Dimension	700mm×400mm×840mm

3.FH18-52-2 semi-Automatic can body welding machine

Linear rate of welding	6-18m/min
Production capability	20~80Cans/min
Applicable can diameter	ø65~ø286mm
Applicable can height	70~420mm
Applicable material	Tinplate steel-based Temper:T2.5-DR8
Applicable material thickness	0.18~0.42mm
Seam welding landing	0.4mm 0.6mm 0.8mm 1.2mm
Seam point distance	0.5~0.8mm
Applicable copper wire diameter	ø 1.38mm ø 1.5mm

4.GT3B18Y hydraulic beading and flanging machine

diameter	220-300mm
height	≤370mm
capacity	15 cans/min
power	5.5kw
net weight	1080kgs
dimension	15009002300mm

5.GT4A19YQ Round can pneumatic seamer

Capacity	20-30cans/min
Diameter	50-300mm
Height	50-400mm
Tinplate Thickness	≤0.4mm
Air pressure	0.3-0.7Mpa
Motor type	Y100L-4

sample cans

Packaging & Shipping

Q:Why choose us?

A:Cause we have leading edge technology for giving the best machines for a wonderful can.

Q:Does our machines available for Ex works and easy to export?

A:That’s a big convenience for buyer to come to our factory to get machines cause our products all don’t need

commodity inspection certificate and it will be easy for export.

Q:Is there any spare parts for free?

A:Yes! We can supply free quick-wear parts for 1 year,just rest assure to use our machines and themselves are

very durable.

Q:How can the price be most reasonable?

A:We handle the price to a reasonable level and it can be adjust according to customer's needs.Then, the price will

eventually based on request.

Q:What if I want to see the production process?

A:That's not a problem,we have many video from our customer's company.If you want to see it right front you,we will

contact our customer over the world and let be there to have the visit.

Q:Is it possible send engineer overseas to fix the machines?

A:Of course yes! This will be our after-sales service.

If you want to know more information about this machine,Please contact us!
