Energy-saving and ISO standard mobile shale crusher machine

Specifications

Energy-saving and ISO standard mobile shale crusher machine
1.Strong ability
2.Low energy consumption
3.Quality guaranteed.



Brief Introduction of Mobile Shale Crusher :

The Mobile shale crusher machine is a new invented crusher from our factory. It's applied for coal gangue, furnace slag, cement, pebble, iron ore, lime stone, shale and so on materials' crushing for construction and other industrial materials. It has solved old crusher whose hammer and scale board wear too fast, not applying in wet material crushing these problems. It has advantages of: good capacity, high fineness, various kinds of materials applying, adapting to various working environments. It's easy to install, and best option for customers.

Working Principle:

Input the raw material averagely by forklift or labor into the first crushing chamber. Material will be crushed by round plate and hammers for first time. Then the smaller materials will come into the second crushing chamber, where the materials will be crushed by high speed hammers. After that, material reached the screening hole size will come out of the machine in the output, larger material will stay in the chamber until it matches the required size.

     Main Technical Parameters:

Model	Max Input Size(mm)	Output Size(changeable)(mm)	Capacity(t/h)	Motor Power(kw)	Total Weight(t)
600*400	≤100	≤3	15-25	18.5+18.5	1.2
600*600	≤180	≤3	25-35	22+22	1.9
800*600	≤270	≤3	45-55	45+37	3.7
800*800	≤300	≤3	55-65	55+55	5.8
1000*800	≤360	≤3	60-80	75+55	6.7
1000*1000	≤400	≤3	80-100	75+90	8.5
1200*1000	≤500	≤3	100-130	110+90	13
1200*1200	≤550	≤3	130-160	132+110	16.5
1400*1200	≤630	≤3	160-180	132+132	21
1600*1400	≤700	≤3	200-260	160+160	30

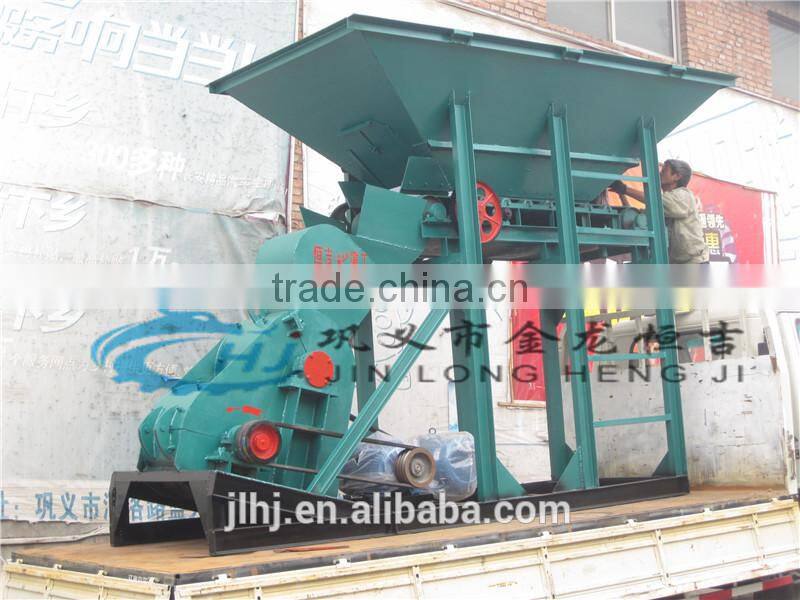

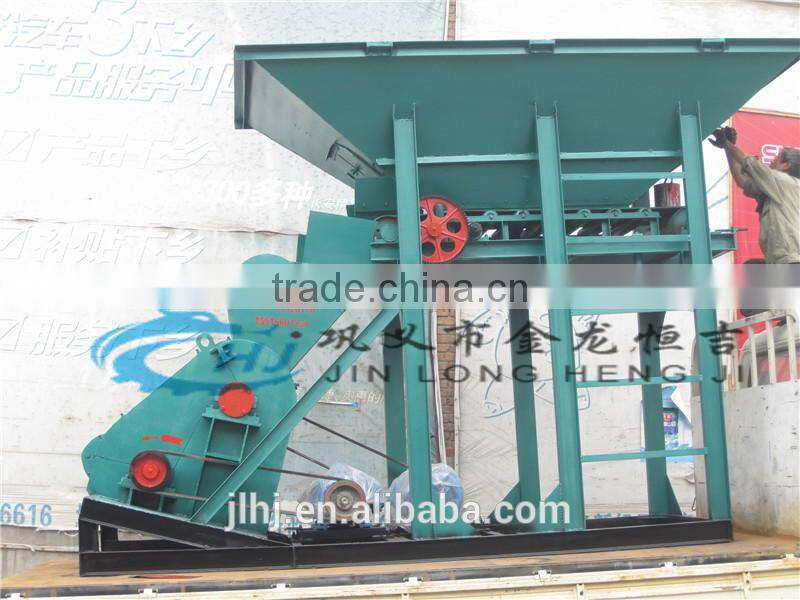

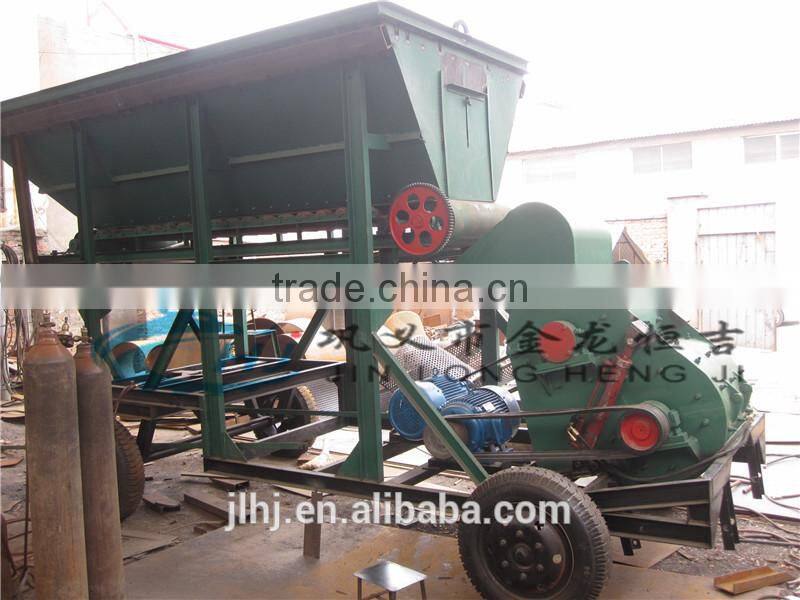

Photoes of our popular machine:

The Transportation of Mobile Shale Crusher:



Qualification Certification:



Packaging Detail:	1.Outside package: Standard export wooden cases;  2. Inner package: Stretch film.
Delivery Detail:	15-20working days after placing the order



1). Pre-sale services: Enthusiasm

We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.

2). Sale services: Servant

Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.

3). After-sale services: Faithfulness

To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.

4). We provide one-year warranty to make sure your machine runs consistently. We always offering life long services and provide spare parts for a long term, and repair main parts under right using for free in two years.
