Paper tube making equipment,paper core making machine
- 15 Set / Sets per Month
- Qingdao
You May Like
Product Details
Condition | New | Product Type | Paper Core Machine | |
Processing Type | Other, paper tube machine | Place of Origin | Henan, China | |
Brand Name | Jinhua | Model Number | ST-200A | |
Voltage | 380V | Power(W) | 6.6kw | |
Dimension(L*W*H) | 3200*2000*1800 | Weight | 1.5T | |
Certification | Other, ISO | Warranty | 1 year | |
After-sales Service Provided | Engineers available to service machinery overseas |
straw rope,wooden package
Product Description

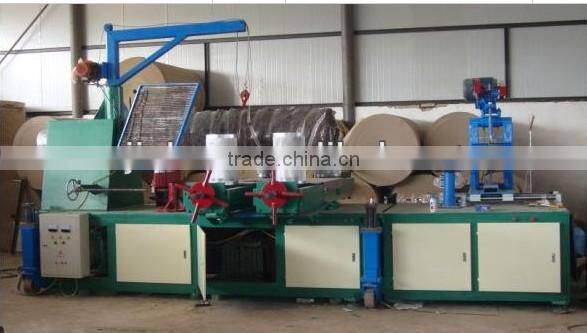

ST-200A Three noses paper tube making machine
Technical paremeter
Driving way | cycloidal-pin 2.2kw motor*3 | Labor | 1-2 |
Layers | 2-24 layers | Speed ratio of mainframe | 1:71 |
Scroll fixing Way | Chucking flang two-way Fixed | Rolling Speed | 3-18m/min |
Tube Diameter | 18-200mm | Way of cutting | Synchronize with round knife |
rewinding noses | 3 noses,double belt | Size | 3200*2000*1800 |
Mainframe motor | 6.6KW | Way of fixed length | Two infrared ray with locating baffle |
Assiting motor | 0.75KW | Speed governing controlling system | PLC frequency conversion |
Gluing way | Single or double sides | Tube Thinkness | 1.0-15mm |
4 phase Electricity | PLC computer control with remote control ports | ||
Adjustable setting of machine running | Auto/labor gluing | ||
Auto tube cutting and dropping Stop automatically when lack of paper Or breaking paper | Lowest noise 65dB | ||
Automatically speed changing and resuming when cuttin | Stainless steel glue port, PU glue knife, high-carbon steel knife, | ||
Multi control point board or digital telecontrol | Auto cutting, smooth cutting surface |

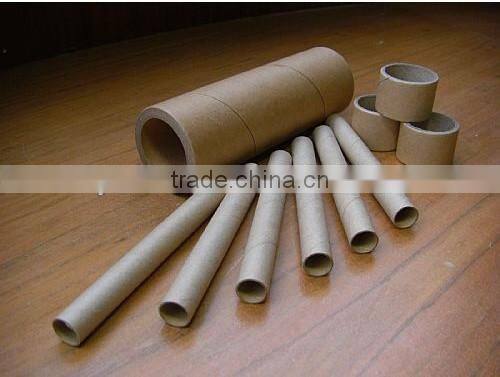

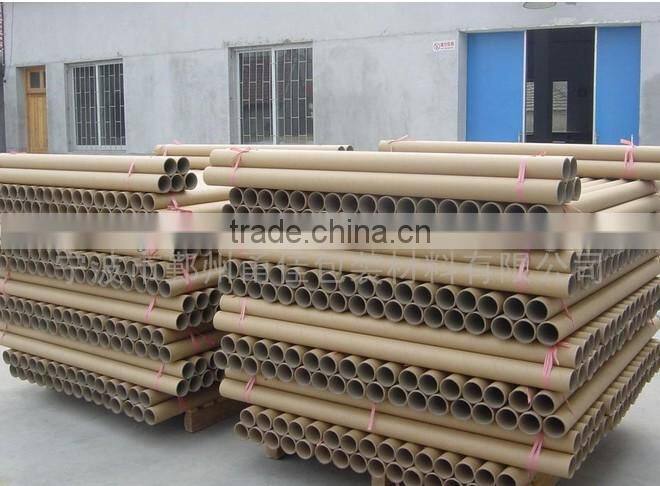

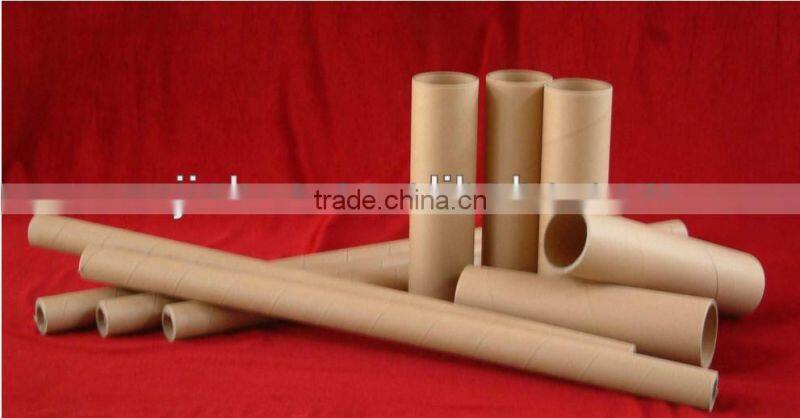

Products:
Pre-sales service
customers find the right product by professional technology and business consultation
vide plans of the machines installation freely
uld make customized products according to the clients requirements
After-sales service
1.highly inspecting equipments in each working procedure ,quality comes first
2.fast and saft delivery
3.assisting our clients to bulid the equipment
4.dispatching engineers to install and debug equipments
5.training the first-line operators on site
6.regularly visit clients to solve production problems
viding lifetime maintenance service
viding technical exchanging and updating
Company Profile

Gongyi Jinhua Machinery Manufacturing Co., Ltd. is a joint venture which mainly produces complete equipment of equipment of pulping and paper machine complete equipment,waste recycling plant,shredder machine,crusher machine,agricultural drying machine . Our company is located in China's transportation hub in Zhengzhou city, founded in 1980. The production facility covers an area of 8,600 square meters with a construction area of 20,800 square meters. With the management idea of sincerity, after thirty years of continuous development and strength, now we employ over 500 full time staff members with more than 100 professional technicians. We also employ 50 staff members who are translators, salespersons, electronic commerce persons. Our company is an integrated industrial enterprise of scientific research, product development, manufacturing and sale. Our company has modern management systems, advanced manufacturing technology, complete testing methods, a large number of excellent processing equipment and high-quality skilled workers. All products pass ISO9001:2008 international quality authentication. Our products are sold throughout the world, including Canada,America,South America,Gremany,France,England, Southeast Asia, Bangladesh, Indonesia, Pakistan, Egypt, Syria, Mexico, Nigeria, Russia, etc. Our company wins customers' trust and recognition widely with integrity, pragmatism, refinement development and eternal commitment. Our company offers an exceptional service team of sale and technology, who offers program and craft process design, technical training and so on. We also offer service of pre-sales, in-sales and after-sales.
