Energy saving 100tph jaw crusher

FOB Price

USD $320 - $98,999 / Set

1 Set(Min.Order)

Supply Ability 40 Set / Sets per Month
Port Lianyungang port Qingdao port .
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Condition:	New	Type:	Other, Jaw Crusher, Jaw Cusher Drawing,Mine Equipment	Application:	mining, Breaking ore stone and rock
Motor Type:	AC Motor	Capacity(t/h):	1mt/h-220mt/h	Place of Origin:	Henan, China
Brand Name:	Xinguang	Model Number:	PE750	Certification:	ISO
Warranty:	1 year	After-sales Service Provided:	Overseas service center available

Product Description

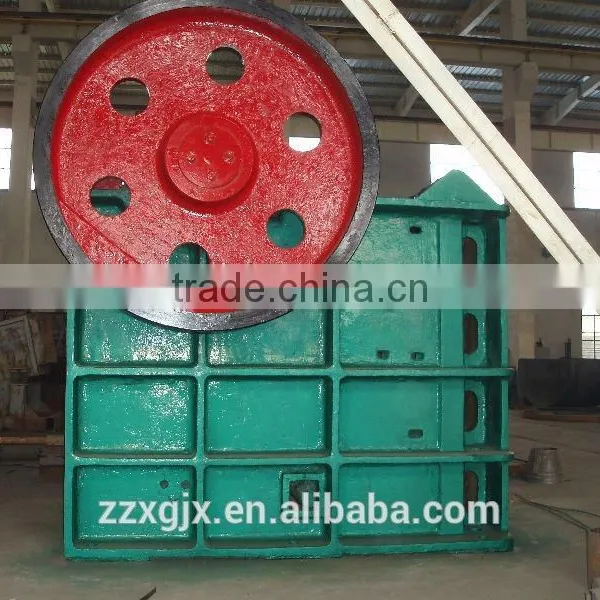

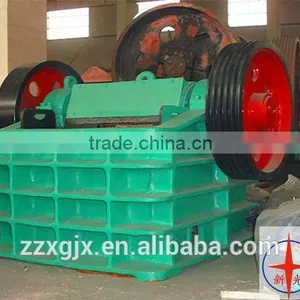

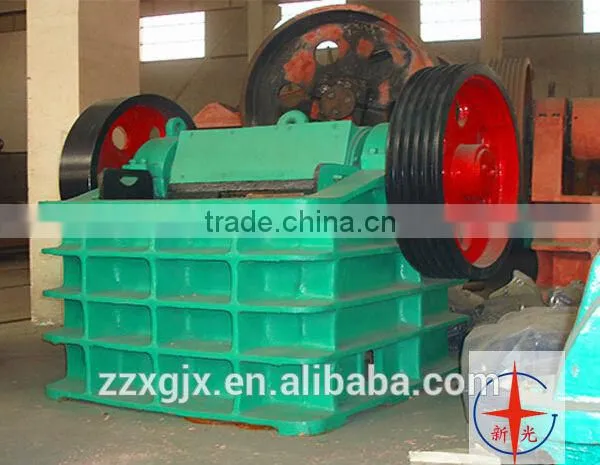

Energy saving 100tph jaw crusher

Jaw Crusher is a kind of crude crushing equipment widely used at home and abroad. It mainly applies for primary and crude crushing of all kinds of hard rocks and block materials . Large and medium-sized jaw crushers are the leading products of our company .

The motor drives the belt wheel ,and makes movable jaw up and down by eccentric shaft. When the movable jaw rises , the angle between the fixed jaw and movable jaw gets larger , and the materials can be crushed to reach the crushing target. When the movable jaw is down , the angle between the fixed jaw and movable jaw becomes smaller. The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring , and then the crushed materials are discharged from the lower outlet of the crushing cavity.

Technical Parameter

model	specification	Size of the feeder opening L×W(mm)		Max feeding size (mm)	Adjusted range of output (mm)	Capacity(t/h)	Spindle speed (r/min)	motor		Weight (t)
model	specification	Size of the feeder opening L×W(mm)		Max feeding size (mm)	Adjusted range of output (mm)	Capacity(t/h)	Spindle speed (r/min)	Model	Power (km)	Weight (t)
PE-150	150×250	250	150	125	15-45	1-4	285	Y2-132S-4	5.5	1000
PE-200	200×300	300	200	180	20-70	2-8	250	Y2-160M-4	11	1500
PE-250	250×400	400	250	210	20-80	5-20	280-320	Y2-180L-6	15	3000
PE-400	400×600	600	400	350	40-100	25-64	250	Y2-250M-8	30	6800
PE-500	500×750	750	500	425	50-100	45-75	280	Y2-280M-6	55	12500
PE-600	600×900	900	600	500	72-160	56-192	250	JR117-8	80	16800
PE-750	750×1060	1060	750	630	80-140	80-220	250	YR315S-8	90	2700
PEX-150	150×750	1000	150	120	10-40	8-35	300	Y2-180L-6	15	3500
PEX-250	250×750	750	250	210	15-50	15-45	320	Y2-280S-8	37	6350
PEX-250	250×1000	750	250	210	15-50	13-35	300	Y2-250M-8	30	6010
PEX-250	250×1200	1200	250	210	15-50	20-60	320	J2-280M-8	4	7700
PEX-300	300×1300	1300	300	250	20-90	20-95	300	Y2-315M-8	75	11302
