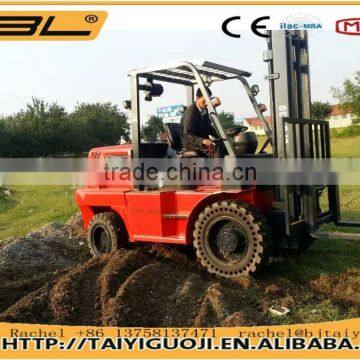

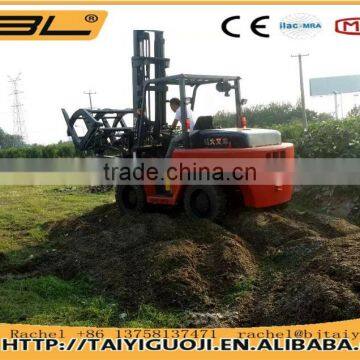

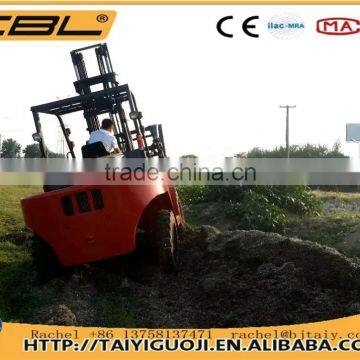

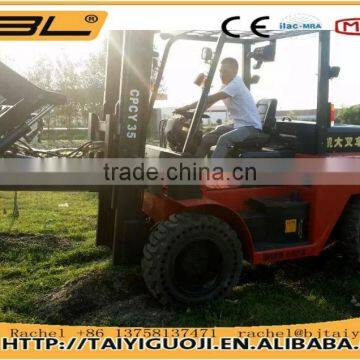

4.0T diesel engine forklift, 4x4 forklift loader, farm tractor
- 100 Set / Sets per Month
- Qinfdao
- T/T
Product Details
| Condition: | New | Place of Origin: | Shandong, China | Brand Name: | KAIDA |
| Model Number: | CPCY35 | Type: | Powered Pallet Truck | Power Souce: | AC Motor |
| Rated Loading Capacity: | 3500kg | Max. Lifting Height: | 3700mm | Min. Lifting Height: | 150mm |
| Fork Length: | 1070mm | Fork Width: | 130mm | Overall Dimensions: | 4585x1730x2720mm |
| Certification: | CE/ISO9001/GCG | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
| Model | Cross Forklift(CE) |
| Engine | |
| Model | Xinchai A498BT(Europ emissions) |
| Rated output | 36.8KW |
| Number of cylinders | 4 |
| Type | In line, Vertical, Water cool, Four-stroke |
| Cylinder bore | 98 |
| Cylinder stroke | 105 |
| Rated speed | 2200 r/min |
| Method of staring | Electric |
| Total displacement | 3.168L |
| Rated load | 3500KG |
| Load Center Distance | 565mm |
| Lift Height | 3700mm |
| The freedom lifts the altitude | 150mm |
| Max lifts the speed(full load) | 372mm/s |
| Gate inclination angle (F/R) | 6/12 Degree Centigrade |
| Moving velocity (idling) | 19Km/h |
| Max claming power | 50Degree Centigrade |
| Overall dimension (LxWxH) | 4585x1730x2720mm |
| Dead Weight | 3268KG |
| Min ground clearance | 260mm |
| Wheel distance | 1320mm |
| Axle-base | 2040mm |
| Forks the tooth size (LXWXH) | 1070x130x45mm |
| Max traction | 2587KGF |
| Max steering angle | -35°~ +35° |
| The after brige swing angle | +12°~ -12° |
| Min turning radius | 4500mm |
| Drive Mean | Four are drive |
| Packaging Details: | Package: 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying; 2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport. Delivery: 1. If the size of whole crane are suitable for container ship, usually by container; 2. If the size is too big, usually by bulk ship or by container after truncation; 3. Transport ways are based on reducing cost for you and keep the crane performance! |
| Delivery Detail: | Within 10~15 work days after receiving the deposit |
We are responsible for small and midlle construction agency, we will offer you the machines and asseceries with the most competitive price and the highest quanlity.
With the machine, we will offer you some free assessories for you ro repalce the abrasions. We all also offer the TRADE-IN ALLOWANCE.
We expect to be stronger and bigger and sucessful together! Choose us, you will not need others any more!!
