HF856A Rotary Piling Rig With ISO & CE Certification for Road Bridge Foundation Construction

HF856A Rotary Piling Rig With ISO & CE Certification for Road Bridge Foundation Construction photo-1
US$ 12,100 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Condition New
CNC or Not Normal
Place of Origin Henan, China
Brand Name HF
Model Number HF856A
Voltage 380V
Power(W) 112KW
Dimension(L*W*H) Working dimension 18050x7297x3200mm
Weight 38000KGS
Certification ISO 9001 : 2000
After-sales Service Provided Engineers available to service machinery overseas

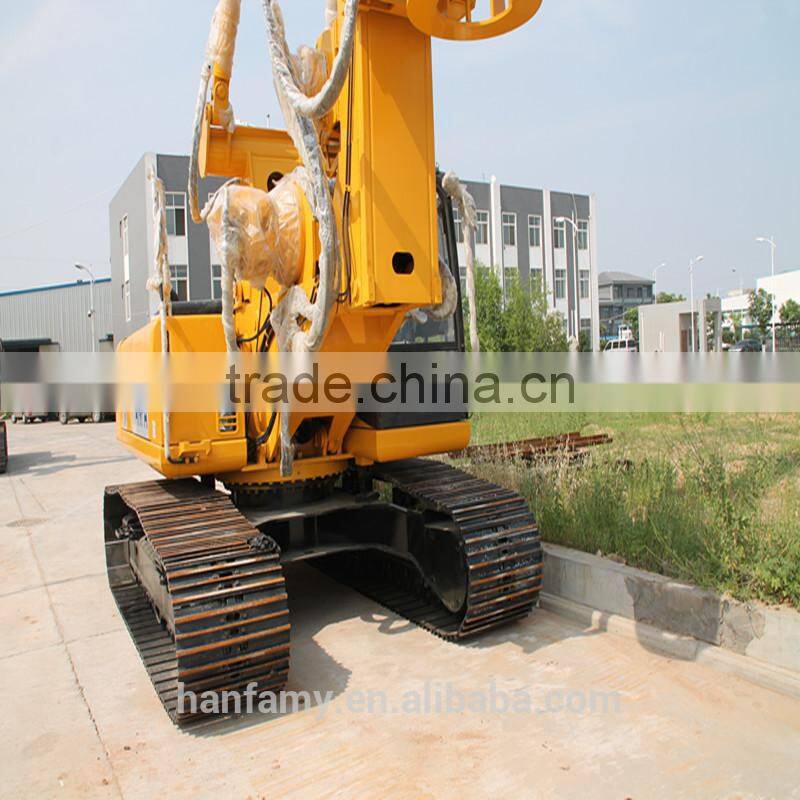

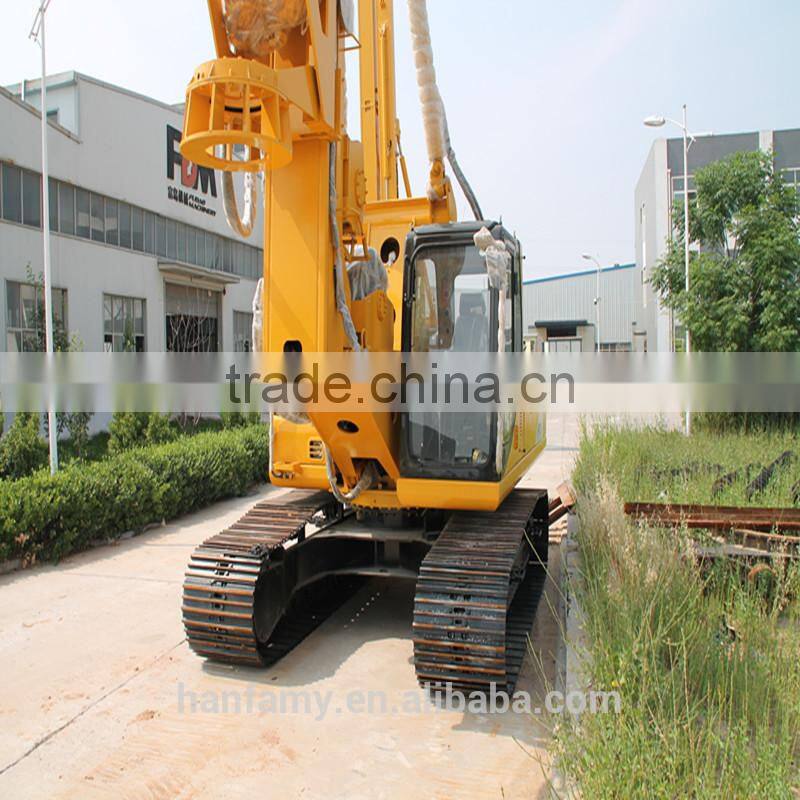

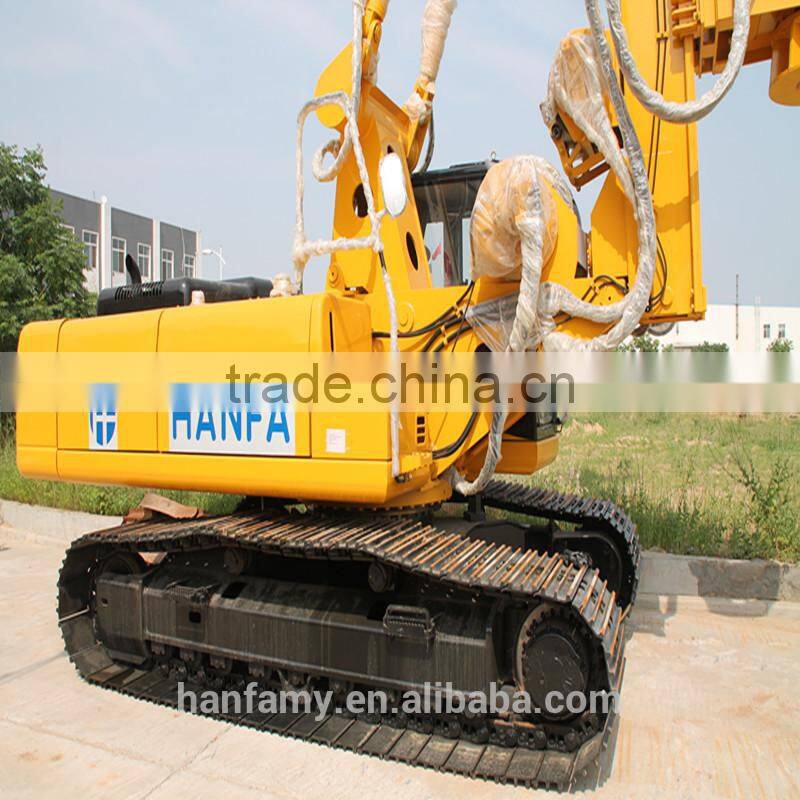

HF856A rotary piling rig with ISO & CE certification for road bridge foundation construction

Features and advantages:

1. Adopting telescopic mast structure which owns simple structure and kades transportation more convenient.

2. The +- shape axle ned structure is used to fax boom and link arm, boom can adjust around and control the arm,guarantee vertical on rough place.

3. Triangular structure between link arm and amplitude clinder increases the machine stability.



Specification:



Drilling diameter600-1600mm
Max drilling depth56m
Working dimension18050x3200x7297mm
Transport dimension14727x3200x3325mm
Machine Weight38000KGS
Engine modelB5.9-C Cummins (USA)
Engine power112KW
Engine TypeTurocharged direct-injection
Rotary driveMax.torque 80 KN.M
Rotation speed1-22 RPM
Crowd clinder Max.push150 KN
                      Max.pull100 KN
                      Max.stroke2000mm
Main winch Max.line pull120KN
                  Max.line speed70m/min
                  Rope diameter24mm
Auxiliary winch Max.line pull60KN
                        Max.line speed50m/min
                        Rope diameter18mm
Mast inclination  Free adjustment forward/backward0-93°
                          Free adjustment left/right+/-3°
Electronic management system On car printerAvailable
                            Long distance monitor systemAvailable
                            Drilling record systemAvailalble
Chassis modalityCustomizable
              Max reavel speed2.0km/h
              Min ground clearance500mm
Track width800mm
Hydraulic system pressure300bar
If any not satisfiedCustomizable

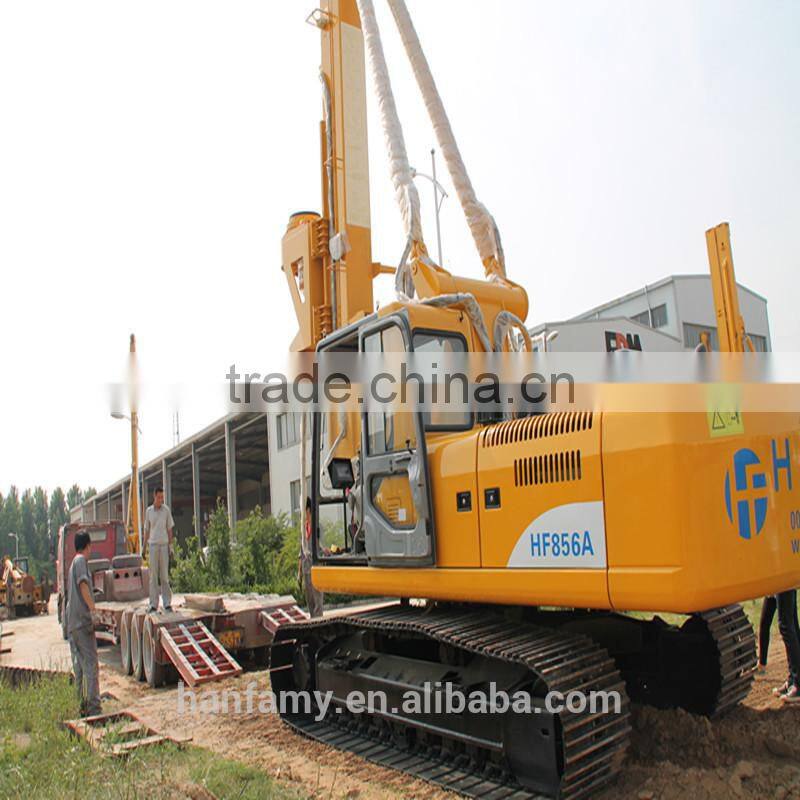

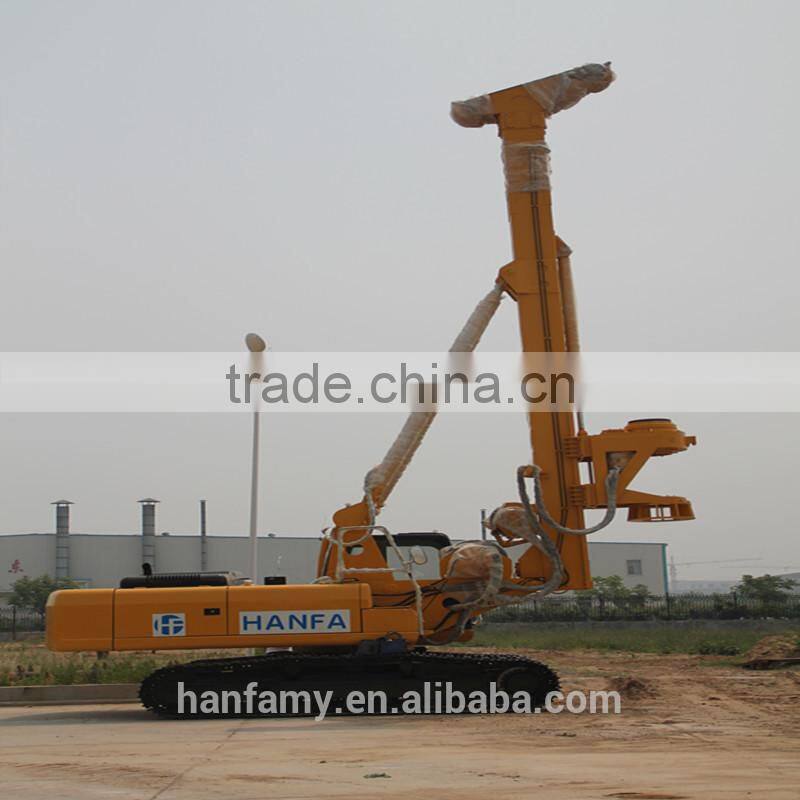

 HF856A rotary piling rig with ISO & CE certification for road bridge foundation constructionHF856A rotary piling rig with ISO & CE certification for road bridge foundation constructionHF856A rotary piling rig with ISO & CE certification for road bridge foundation constructionHF856A rotary piling rig with ISO & CE certification for road bridge foundation constructionHF856A rotary piling rig with ISO & CE certification for road bridge foundation construction

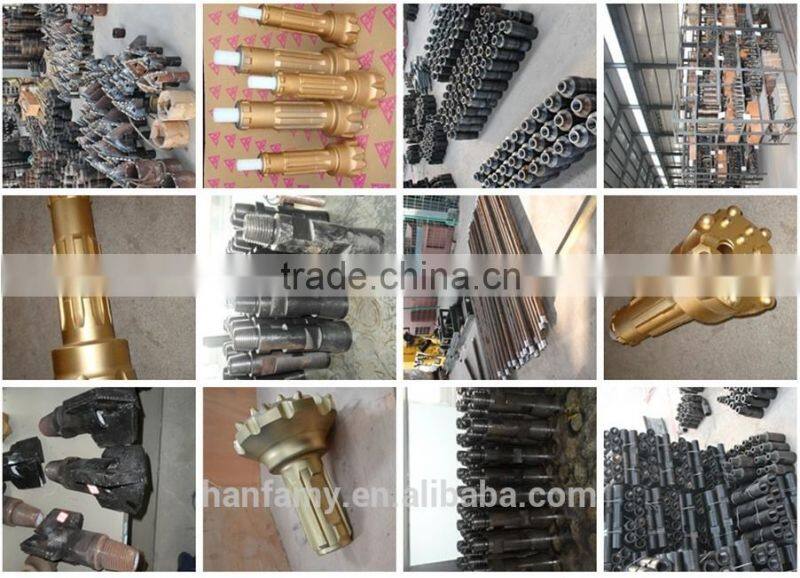

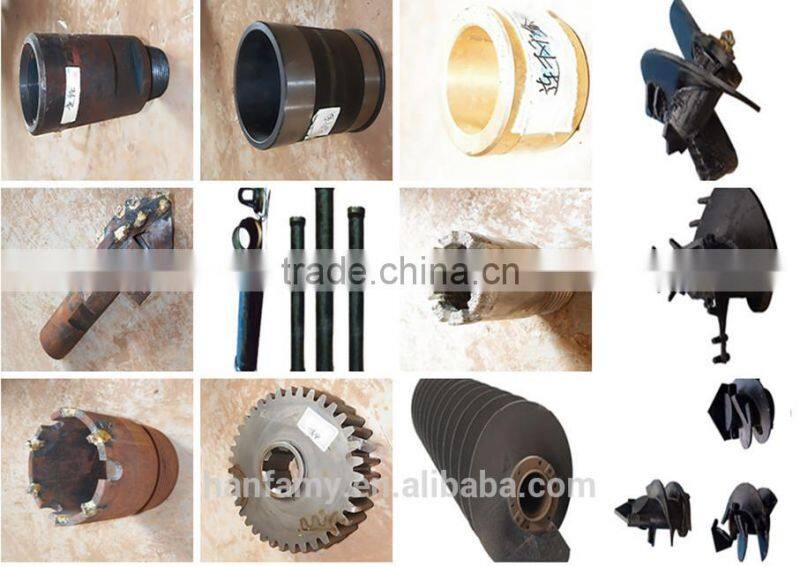

Drilling Tools

HF856A rotary piling rig with ISO & CE certification for road bridge foundation constructionHF856A rotary piling rig with ISO & CE certification for road bridge foundation construction

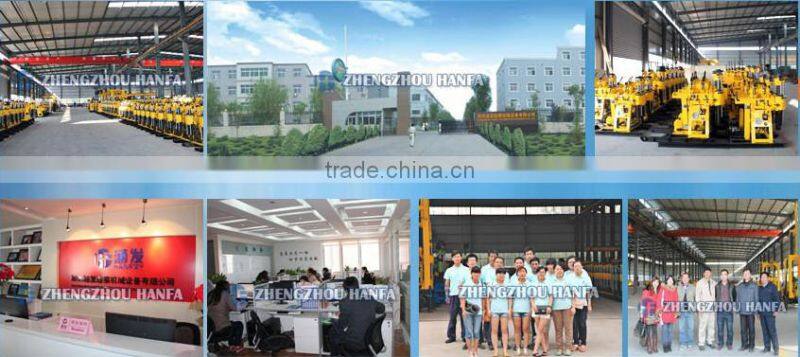

Company Information

HF856A rotary piling rig with ISO & CE certification for road bridge foundation construction

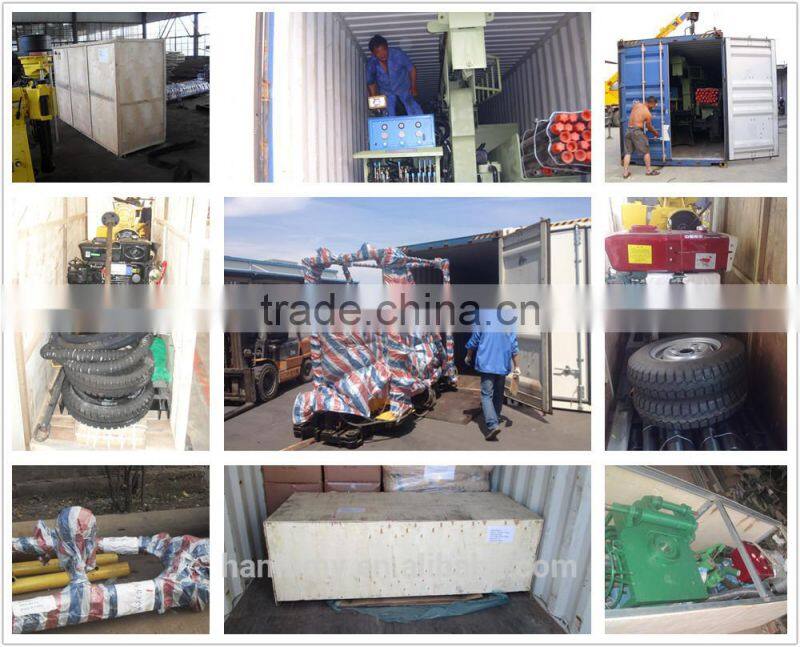

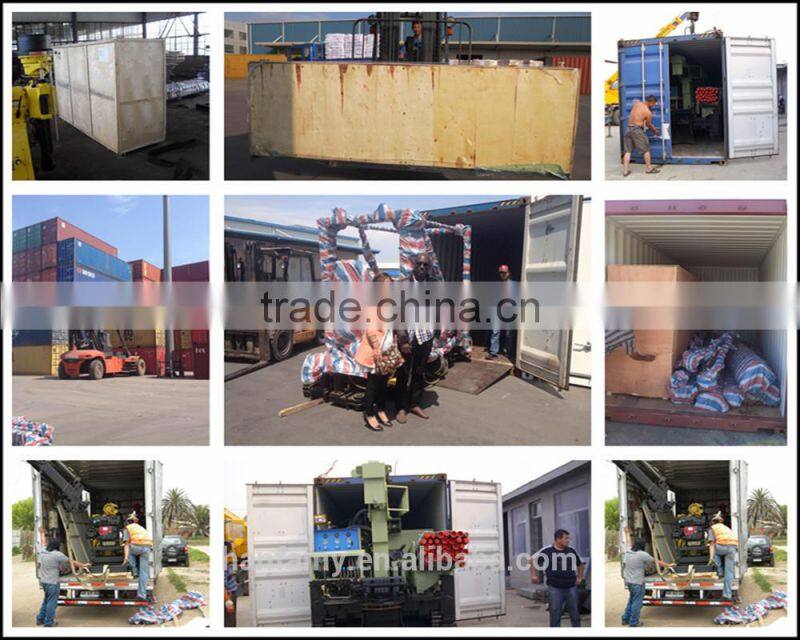

Packaging & Shipping

HF856A rotary piling rig with ISO & CE certification for road bridge foundation constructionHF856A rotary piling rig with ISO & CE certification for road bridge foundation construction



Customer Feedback

HF856A rotary piling rig with ISO & CE certification for road bridge foundation constructionHF856A rotary piling rig with ISO & CE certification for road bridge foundation construction



FAQ

1.Are you trading company or manufacturer?

We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2.Are your products qualified?

Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3.How about your machine quality?

All of our machines hold the  ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4.Do you have after service?

Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your work site and provide the training for your staff.
5.What about the quality warranty?
We offer one-year quality warranty for machines' main body.
6.How long can you deliver the machine?
Generally, we can deliver the machine in 15-20 days.
