Home > Products > Water Well Drilling Rig Equipment > Efficient machinery!deep water well drilling rigs with wheel chassis device

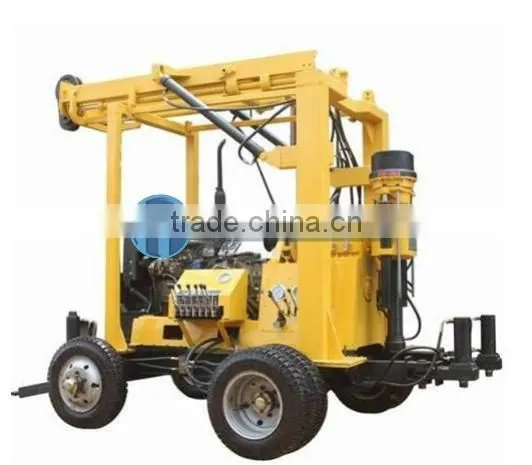

Efficient machinery!deep water well drilling rigs with wheel chassis device
- 30 Set / Sets per Month
- Qingdao
- T/T
-
Easy to operate!deep water well drilling rigs with wheel chassis device
-
Direct Viewing Operation!deep water well drilling rigs with wheel chassis device
-
Super machine in Africa!!! deep water well drilling rigs with wheel chassis device
-
The star of machine in Africa!!! deep water well drilling rigs with wheel chassis device
-
Hot sale!!! deep water well drilling rigs with wheel chassis device
-
Safe and convient!!!!!! deep water well drilling rigs with wheel chassis device
Product Details
| Condition: | New | Type: | Core Drilling Rig | Power Type: | Diesel |
| Brand Name: | Hanfa | Model Number: | HF-3 | Usage: | Water Well |
| Warranty: | ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
deep water well drilling rigs with wheel chassis deviceEfficient machinery! deep water well drilling rigs with wheel chassis device
1.Application of deep water well drilling rig
water well drilling rig is mainly applied to water well drilling, geological general investigation and exploration, road and tall building basic exploration, kinds of hole in concrete structure, river levees, roadbed grouting hole drilling and direct grouting, and earth central air conditioner,ect.
2.Features and Advantages of deep water well drilling rig
1. This water well drilling rig equipped with wheel classis device, easy to move
2. Hydraulic oil pressure feed device, improve drilling efficency
3. Hydraulic chuck, can complete no-stopping rotating
4. Presssure gauge dispay the condition of bottom drilling hole
5. Drilling mast controlled by hudraylic cylinder, imporve the efficiency
6. Diesel engine adopt the electric starter, to reduce the labor intensity
3. Technical Parameter of deep water well drilling rig
Drilling depth | m | 300-600 |
Open hole caliber | mm | 300 |
End hole caliber | mm | 75 |
Drilling rod | mm | 60 |
Drilling angle |
| 90°-65° |
Spindle | ||
Spindle forward speed | r/min | 57-1024 |
Spindle reverse speed | r/min | 45-212 |
Spindle stroke | mm | 560 |
Spindle inner diameter | mm | 96 |
Spindle lifting capacity | KG | 6000 |
Hoist | ||
Single line lifting speed | m/s | 0.515 0.894 1.421 1.948 |
Hug floodgate belt width | mm | 90 |
Tightrope caliber | mm | 12.5 or 14 |
Hoist single line lifting capacity | KG | 3000 |
Reel caliber | mm | 200 |
Reel cubic measure | m | 30 |
Mud pump | ||
Horizontal double actuator | ||
Displacement | L/min | 200,125 |
Triangle conveyer belt type |
| B×5 |
Work pressure | Mpa | 4.6 |
Water inlet caliber | mm | 65 |
Water to exit caliber | mm | 37 |
Oil pump | ||
Duplex gear oil pump F532/F314 | ||
Front displacement,pressure |
| 32L/min 20Mpa |
Behind displacement,pressure |
| 14L/min 20Mpa |
Drilling rig Power | ||
Diesel engine | Hp | 395Kz 27HP |
Electric motor | KW | Y180L-4 22KW |
Project case:
