China Vegetable Processing Washing Line,Frozen Vegetable And Fruit Production Line,Vegetable IQF Freezing Line Machine

                                             Frozen Vegetable And Fruit Production Line

                                            Vegetable IQF Frzzeing Line Machine

Summary

• The LSZ series fluidized quick freezing machine combines the latest technology of other same products from Sweden and Canada, realizing a real fluidized and perfect IQF effect

• It's made of 304 stainless steel except motor, blower impeller, evaporator pipe and fin, and electric elements.
• This machine is completed with base plate of quick freezing machine, the users do not need to make the heat preservation fundation.

Application

It has a wide application, is suitalbe for beans, cherries, strawberries, corns, cauliflowers and other dice , strip products.  It's the best equipment for quick freezing all kinds of fruit, vegetable and some of the seafood.

Working principle

Adopts two stage belting structure---firstly, quick-cooling step. Secondly, deep-freezing step. Independently speed control system, and the speed of the two meshbelts can be changed infinitely.

1.Quick-cooling stage---the food particles are to be quick cooled after entering into the blast room. The surface of the particles would frozen and reach the temperature of 0 C. meanwhile, with the help of the striking chain, the particles would neither stick together nor stick on the stainless steel meshbelt.

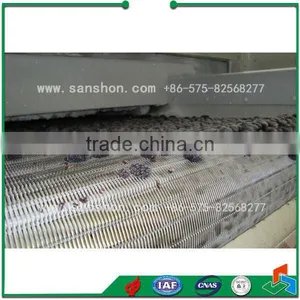

2.Deep-freezing stage---the food is to be moved on a stainless steel meshbelt, the foodstuff layer loosens with the increasing of the airflow. Some of the foodstuff particles become floating(this is the reason why this equipment is not applicable to big bulk foodstuff) when the air pressure reaches a certain scale, which brings interspaces among the foodstuff particles, that is the way the fluidized bed come into being..

Main technical parameters

output(kg/h): 4000

overalldimension(m): 16.1*4.4*3.8

freezer length(m): 15

width of belt(m): 1.3

input material tmpt(oc): +15

output material tmpt(°c): -18

freezing tmpt(°c): -36+/-2

freezing time(min): 5-50(adjustable)

coolant: R717/R22

cold load(kw): 600

power required(kw):109

Models

Zhejiang Sanshon Machinery Manufacturing Co., Ltd was founded in 1993, located in the most convenient transportation and prosperous economy of Yangtze River delta Shangyu city, Zhejiang. Zhejiang Sanshon Machinery Manufacturing Co., Ltd adjacent to the beauty of the CaoE river, and in less than 5 KM there are three expressways, they are Hangzhou-Ningbo (G92), Changshu-Taizhou (G15w), and 104 national road line , the HangYong high speed railway. Moreover it is less than 100 KM to Hangzhou and Ningbo airport.
It is specialized in manufacturing food processing machinery, which includes fruit & vegetable hot air drying(AD), quick freezing (IQF), vacuum freeze dryer(FD). The company passed ISO9001:2000 quality standard under the efforts of all employees. There are three equipments has been assessed as National New Product. And in 2007, Sanshon was recognized for New and High Technical enterprise in Zhejiang Province.
The company not only in r&d and manufacturing ,but also enjoy the right of import and export. And the machinery from Sanshon has been exported to more than 10 countries, including Vietnam, Thailand, Uzbekistan, Azerbaijan, Iran, Mexico, Venezuela, Peru, Australia, Cyprus, Libya, etc.
Based on more than 20 years’ experience in food process machinery manufacturing, later it established Shaoxing Sanshon Steel Co., Ltd () and Shundi foods Co., Ltd()in Zhejiang and Shanghai. Sanshon now is capable of providing integrated services, including product consultation, design, workshop establishment, equipment manufacturing and installation, training of machine operation in the field of vacuum freeze drying machine (FD), hot air drying (AD) as well as quick frozen (IQF) machines.
Sanshon is well prepared to be a pioneer in the field of dehydration, quick frozen, vacuum freeze drying to contribute to food processing industry!
Term,Conditions

Ordering Information
Payment:
we usually accept T/T,L/C, please send email to negotiate payment term if you can not accept T/T or L/C.
Packing:
iron framework with external plywood and seaworthy package

 Please send email for the extra cost of different packing

Delivery Time:
different products will spend different production period: from 30-120 days after 50% advanced payment.

For urgent order, Could be faster, please send email to negotiate

How to make an order?
1,Client make 50% deposit or open LC after receiving our PI
2,Client approve our equipment,
arrange shipment
1,Client effect balance payment before shipment
2.supplier send original documents or telex release the goods
3,quality warranty for 1 year after shipment
