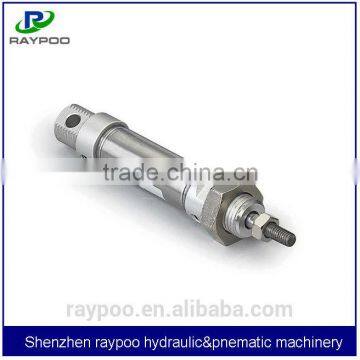

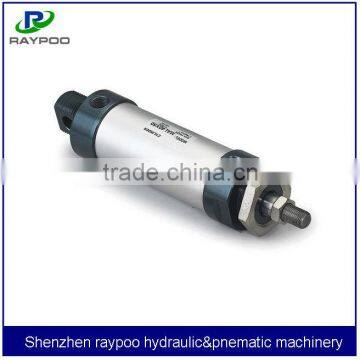

MAL aluminum alloy mini cylinder airtac pneumatic cylinder
- 100 Piece / Pieces per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
Standard or Nonstandard | Standard | Structure | Piston Cylinder | |
Power | Pneumatic | Body Material | Aluminum | |
Maximum Stroke | 100 | Shaft Diameter | 50 | |
Place of Origin | Guangdong, China | Model Number | MAL50-50 | |
Brand Name | raypoo |
Product Description
MAL Aluminum alloy mini cylinder airtac pneumatic cylinder
Example | MALJ | 20 | 50 | 20 | S | * | * | P |
Meaings | Model | Bore size | Stroke | Ajustable stroke | Magnet | Seals material | Mounting type | Thread |
Explain | MAL:mini cylinder (double acting) MSAL: mini cylinder (single acting push) MTAL: mini cylinder (single acting pull) | No this code | No this code | S:with magnet Blank:without magnet | Blank:TPU H:Viton N:NBR | Blank LB FA FB CA CB TC | P:PT T:NPT G:G | |
MALD: mini cylinder (double rod) | ||||||||
MALJ: mini cylinder ( adjustable stroke) | 10:10mm 20:20mm 30:30mm 40:40mm 50:50mm 75:75mm 100:100mm |
Bore size mm | 20 | 25 | 32 | 40 | ||
Acting type | MSAL, MTAL | Single acting type | ||||
Others | Double acting type | |||||
Fluid | Air ( to be filtered by 40um filter element) | |||||
Mounting type | SGC | Basic FA FB CA CB CR LB TC TTC TF TM | ||||
SGCD,SGCJ | Basic FA LB TC FTC TF TM | |||||
Operating pressure | Double acting | 0.10~1.0Mpa (14~145Psi) | ||||
Single acting | 0.20~1.0Mpa (28~145Psi) | |||||
Proof pressure | 1.5Mpa (215psi)(15 bar) | |||||
Temperature °C | -20~70 | |||||
Speed range mm/s | Single acting :50~800 Double acting :30~800 | |||||
Stroke tolerance | 0~150 +1.0 >150 +1.4 | |||||
Cushion type | Bumper | |||||
Port size | 1/8” | 1” |
How are orders packed and shipped?
Depends on customers' orders. All goods are packed with a plastic bag with an outer carton and a wooden pallet( fumigation).
Can be customized according to customer requirements
We provide hydraulic, lubrication, pneumatic technology consulting, system design, and the parts.
Could Raypoo offer OEM service?
Yes. Raypo is able to offer OEM with customers' brand name and trademark onto the product.
Do Raypoo products come with a warranty?
Yes.Raypoo offer 1-year guarantee without abusive usage on all purchases which begins with the bill of lading.
Shenzhen raypoo is a manufacturer of hydraulic products and engineered solutions serving the fluid power market.
The Company offers an engineering and manufacturing team capable of providing advanced technology in the design and production of unique fluid power components and electronic controls.
The Company's involvement focuses its expertise on markets in which customers demand top quality, prompt delivery, high performance and responsive aftermarket support.
The Company's products include hydraulic pumps, hydraulic motors, hydraulic valve ,valves controls manifolds, ,hydraulic cylinders, Industries that use these products include primary metals, machine tool, automobile, petroleum, construction equipment, chemical, plastic, glass, lumber, rubber and food.
The Company strives to serve those markets requiring high technology and expertise where reliability, top performance and longer service life are needed.
The products are sold as individual components or integrated into high performanceapplications.
Plant and equipment Photos :
Q.How to request a manufacturing quotation from Raypoo?
A.Give us a call or send us an E-mail with your purchase request.
Q.What are your quality control procedures?
A.Raypoo is equippedwith high-tech, advancedcomputerized and self-inspection machineries, manufactures thousands of different parts in house to ensure the built-in quality and dependable performance. This is the reason why Raypoo is recognized as on the world class quality level.
